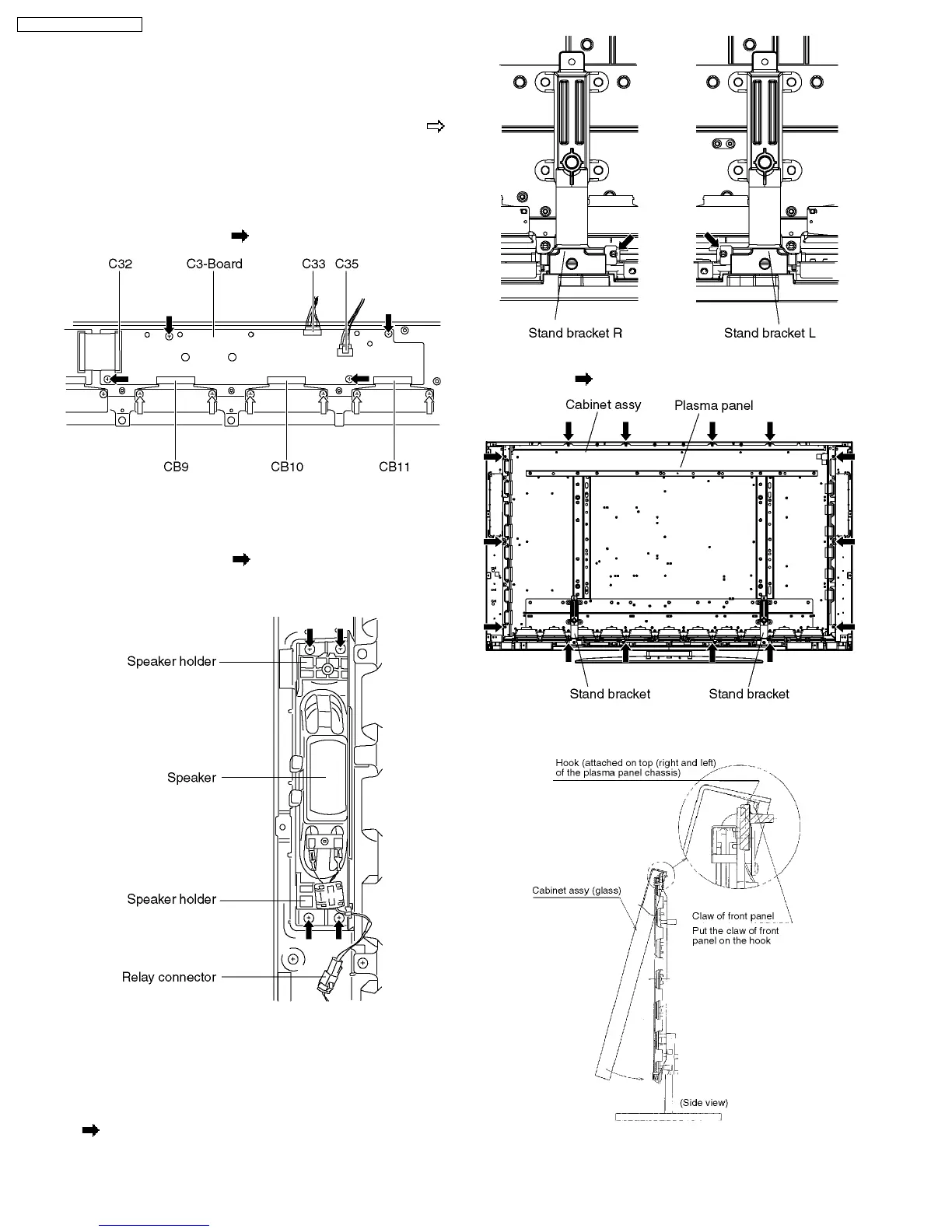

6.18. Remove the C3-Board
1. Remove the tuner unit. (See section 6.4.)
2. Remove the stand bracket (L). (See section 6.15.)
3. Remove the flexible cables holder fastening screws (×6
).
4. Disconnect the flexible cables (CB9, CB10 and CB11).
5. Disconnect the flexible cable (C32).
6. Disconnect the connectors (C33 and C35).
7. Remove the screws (×4
) and remove the C3-Board.
6.19. Remove the speaker L, R
1. Disconnect the relay connector .
2. Remove the screws (×4
each) and remove the speaker
holder.
3. Remove the speaker L, R.
6.20. Remove the Plasma panel
section from the Cabinet assy
(glass)
1. Remove the stand brackets (left, right) fastening screws (×2
each).
2. Remove the cabinet assy and the plasma panel fastening
screws (×14
).
3. For leaving the plasma panel from the cabinet assy, pull the
bottom of the front frame forward, lift, and remove.
14
TH-50PX77U / TH-50PE77U
