Panasonic TH-50PHW7BX - 8 C.board and Plasma Panel Replacement; Removal of the; Removal of the Slot Block; Removal of the J-Board

Prior to the replacement, place the unit on the pedestal
stand remove the front frame.

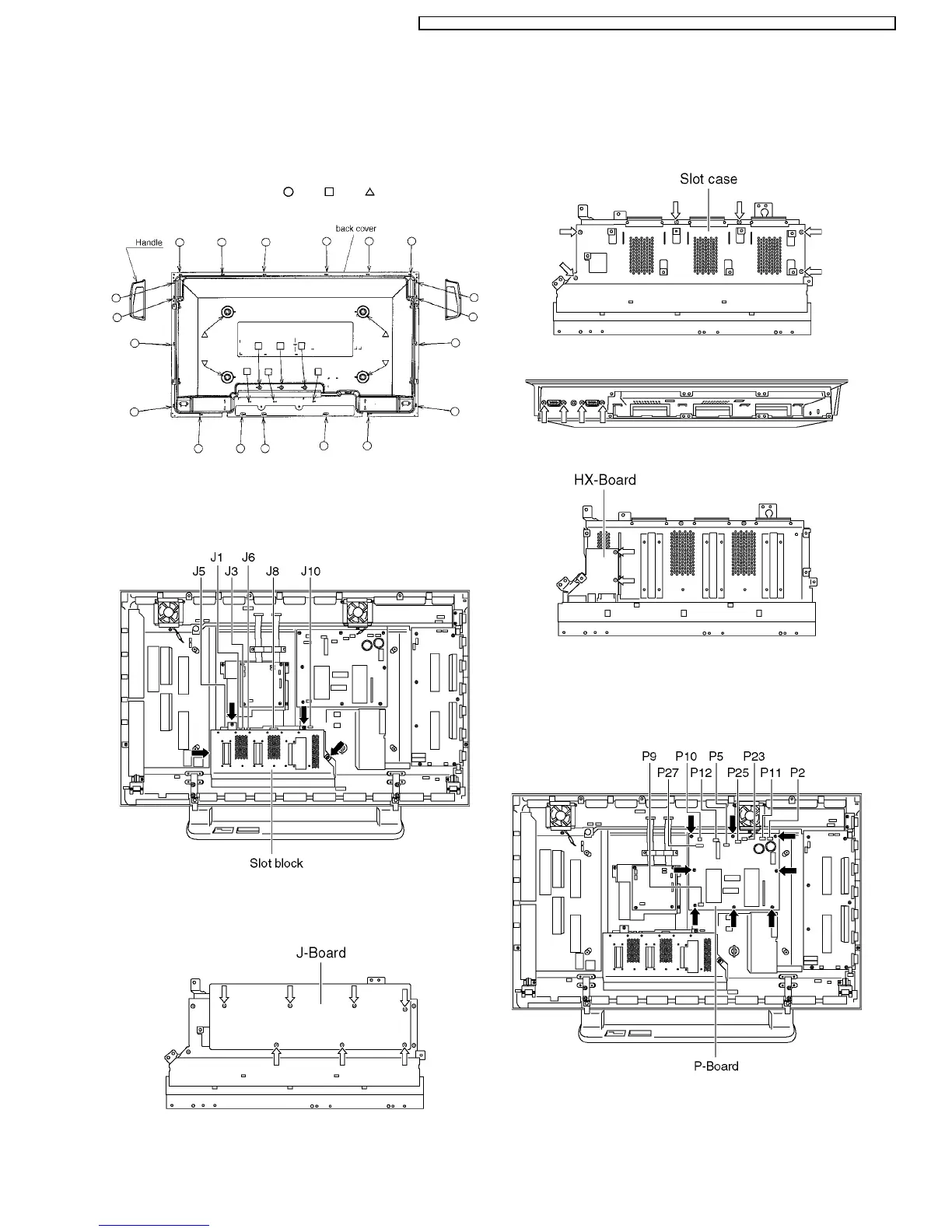

8.1. Removal of the back cover
a. Unscrew the screws (×19 , ×6 , ×4 ) and remove the
back cover.
8.2. Removal of the Slot block
a. Disconnect the couplers (J1, J3, J5, J6, J8, J10).
b. Unscrew the screws (×4) and remove the slot block.
8.3. Removal of the J-Board
a. Unscrew the screws (×7) and remote the J-Board.
8.4. Removal of the HX-Board
a. Unscrew the screws (×6) and remove the slot case.
b. Unscrew the screws (×4).
c. Unscrew the screws (×2) and remove the HX-Board.
8.5. Removal of the P-Board
a. Disconnect the couplers (P2, P5, P9, P10, P11, P12, P23,
P25, P27).
b. Unscrew the screws (×8) and remove the P-Board.
8 P.C.Board and Plasma panel replacement
11
TH-50PHW7BX / TH-50PHW7EX / TH-50PHD7EK / TH-50PHD7ES / TH-50PHD7BK / TH-50PHD7BS / TH-50PHD7UY
