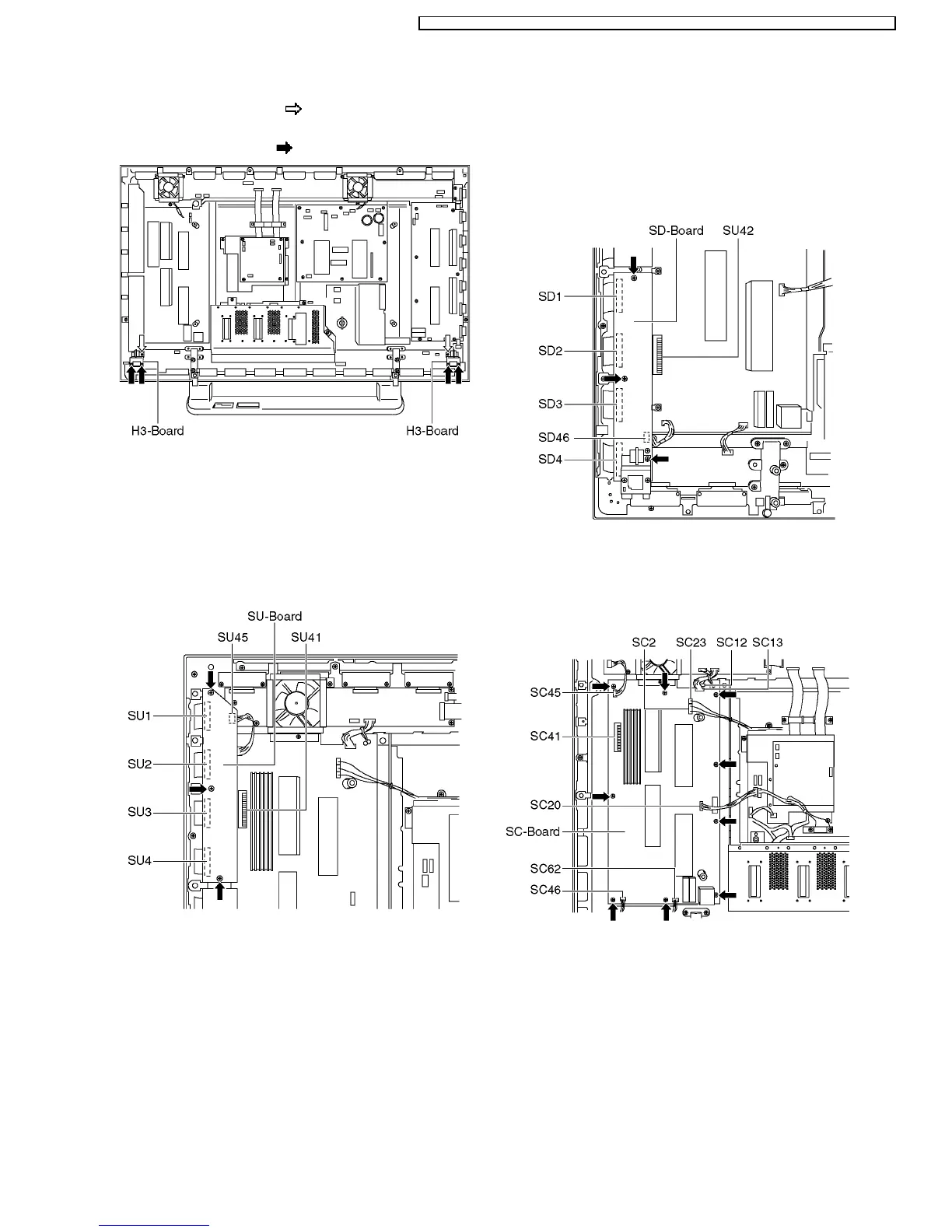

8.9. Removal of the H3-Board
a. Unscrew the screws (×2 ), and remove the H3-Board
with the Bracket.
b. Unscrew the screws (×4
), and remove the H3-Board.
8.10. Removal of the SU-Board
a. Unscrew the screws (×3).
b. Slide the SU-Board to the left and disconnect from the
couplers (SC41) on the SC-Board.
c. Disconnect the coupler (SU45).
d. Disconnect the flexible cables (SU1, SU2, SU3, SU4)
connected to the SU-Board, and remove the SU-Board.
8.11. Removal of the SD-Board
a. Unscrew the screws (×3).
b. Slide the SD-Board to the left and disconnect from the
couplers (SC42) on the SC-Board.
c. Disconnect the coupler (SD46).
d. Disconnect the flexible cables (SD1, SD2, SD3, SD4)
connected to the SD-Board, and remove the SD-Board.
8.12. Removal of the SC-Board
a. Disconnect the couplers (SC2, SC12, SC13, SC20, SC23,
SC45, SC46, SC62).
b. Unscrew the screws (×9) and remove the SC-Board.
