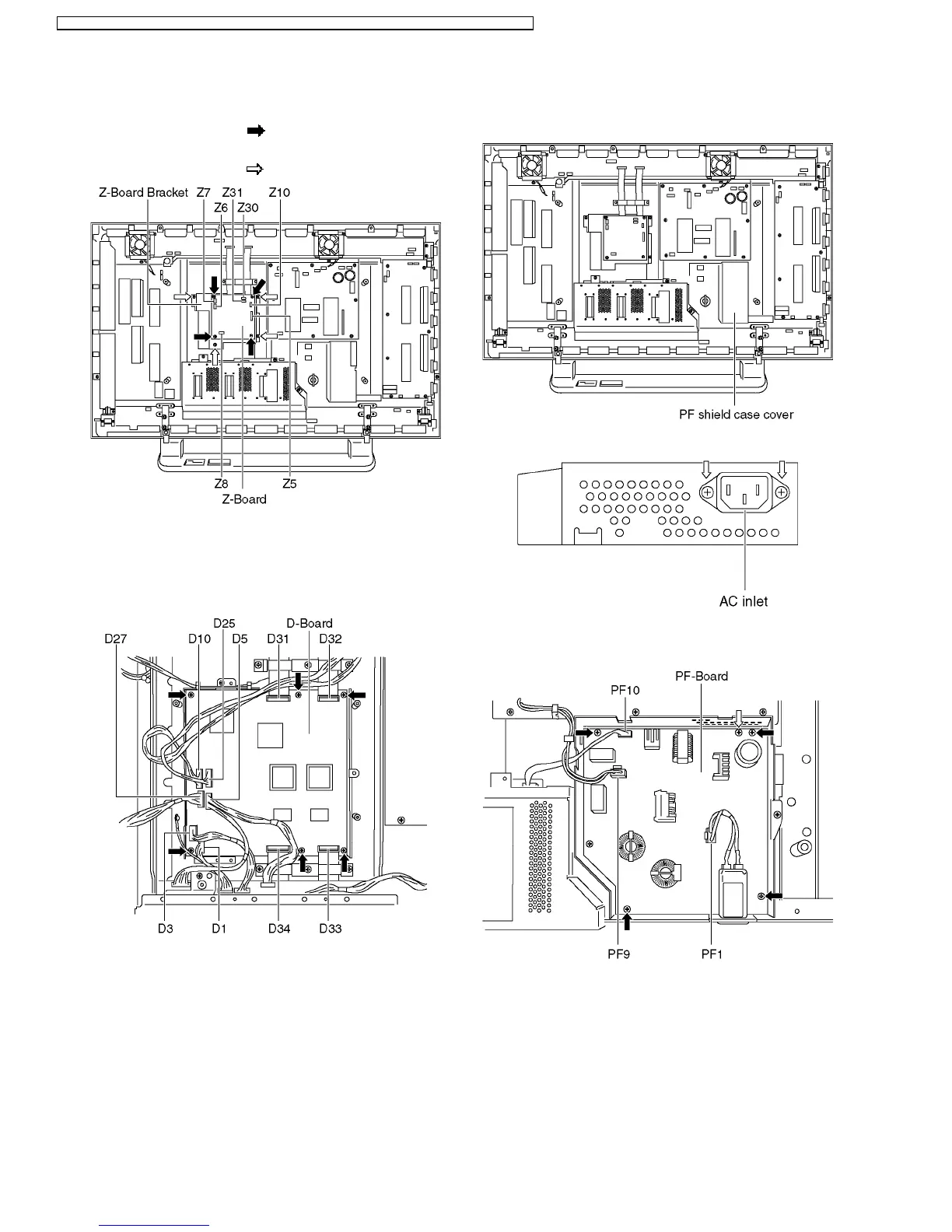

8.6. Removal of the Z-Board
a. Disconnect the couplers (Z5, Z6, Z7, Z8, Z30, Z31).
b. Unscrew the screws (×4
) and remove the Z-Board with
theZ-BoardBracket.
c. Unscrew the screws (×4
) and remove the Z-Board.
8.7. Removal of the D-Board
a. Disconnect the couplers (D1, D3, D5, D10, D25, D27) and
the flexible cables (D31, D32, D33, D34).
b. Unscrew the screws (×6) and remove the D-Board.
8.8. Removal of the PF-Board
a. Remove the PF shield case cover and disconnect the
coupler (PF1).
b. Unscrew the screws (×2) and remove the AC inlet.
c. Disconnect the couplers (PF9, PF10).
d. Unscrew the screws (×4), and remove the PF-Board.
12
TH-50PHW7BX / TH-50PHW7EX / TH-50PHD7EK / TH-50PHD7ES / TH-50PHD7BK / TH-50PHD7BS / TH-50PHD7UY
