Panasonic TH-50PHW7BX - Removal of the SS-Board; Removal of the SS2-Board; Removal of the SS3-Board; Removal of the Fan

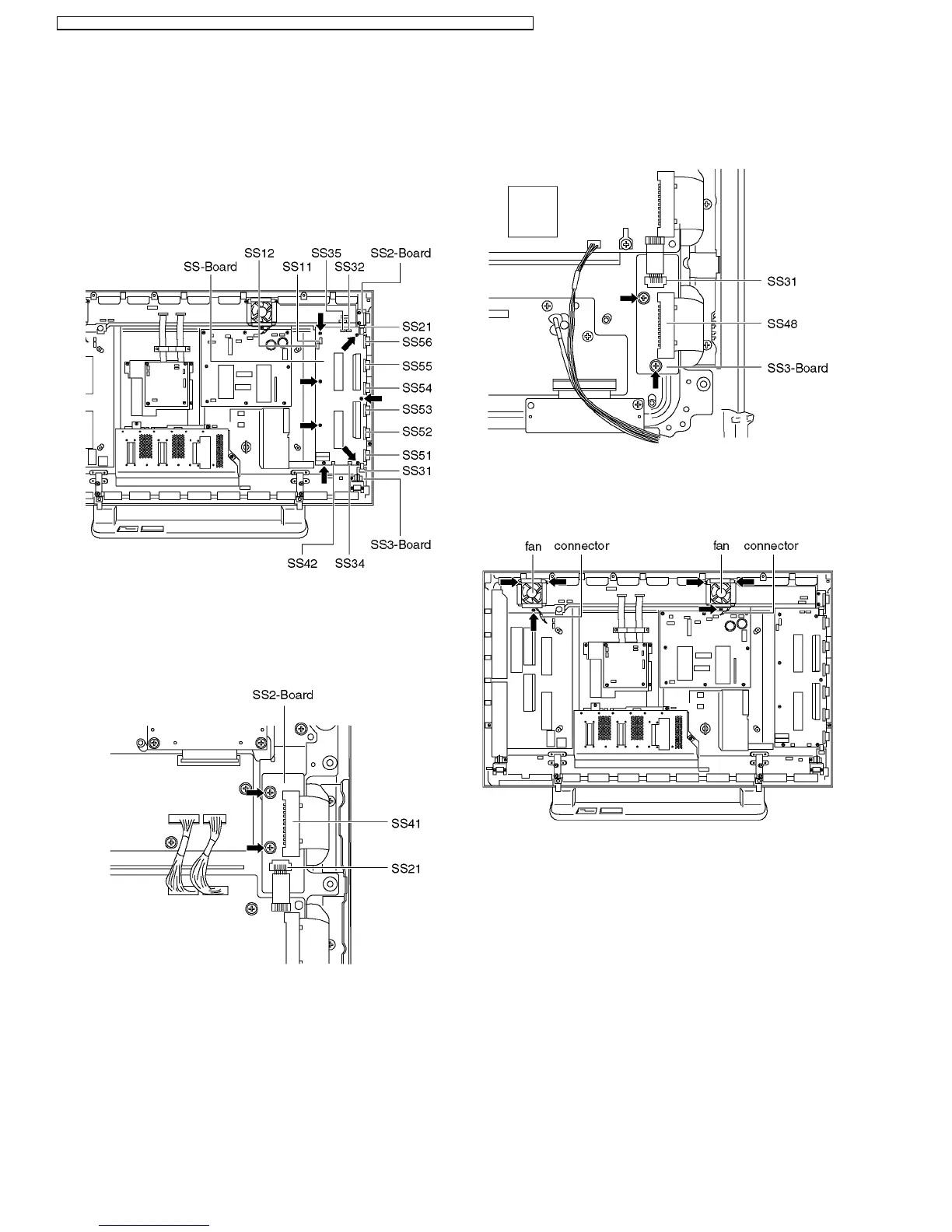

8.13. Removal of the SS-Board
a. Disconnect the couplers (SS11, SS12, SS32, SS34, SS35,
SS42).
b. Disconnect the coupler (SS21) on SS2-Board.
c. Disconnect the coupler (SS31) on SS3-Board.
d. Disconnect the flexible cables (SS51, SS52, SS53, SS54,
SS55, SS56).
e. Unscrew the screws (×7), and remove the SS-Board.
8.14. Removal of the SS2-Board
a. Disconnect the couplers (SS21).
b. Disconnect the flexible cable (SS41).
b. Unscrew the screws (×2) and remove the SS2-Board.
8.15. Removal of the SS3-Board
a. Disconnect the couplers (SS31).
b. Disconnect the flexible cable (SS48).
b. Unscrew the screws (×2) and remove the SS3-Board.
8.16. Removal of the fan
a. Disconnect the fan cable connector.
b. Unscrew the screws (×3) and remove the fan.
14
TH-50PHW7BX / TH-50PHW7EX / TH-50PHD7EK / TH-50PHD7ES / TH-50PHD7BK / TH-50PHD7BS / TH-50PHD7UY
