TH-50PHD7BK/BS/EK/ES/UY
TH-50PHW7BX/EX

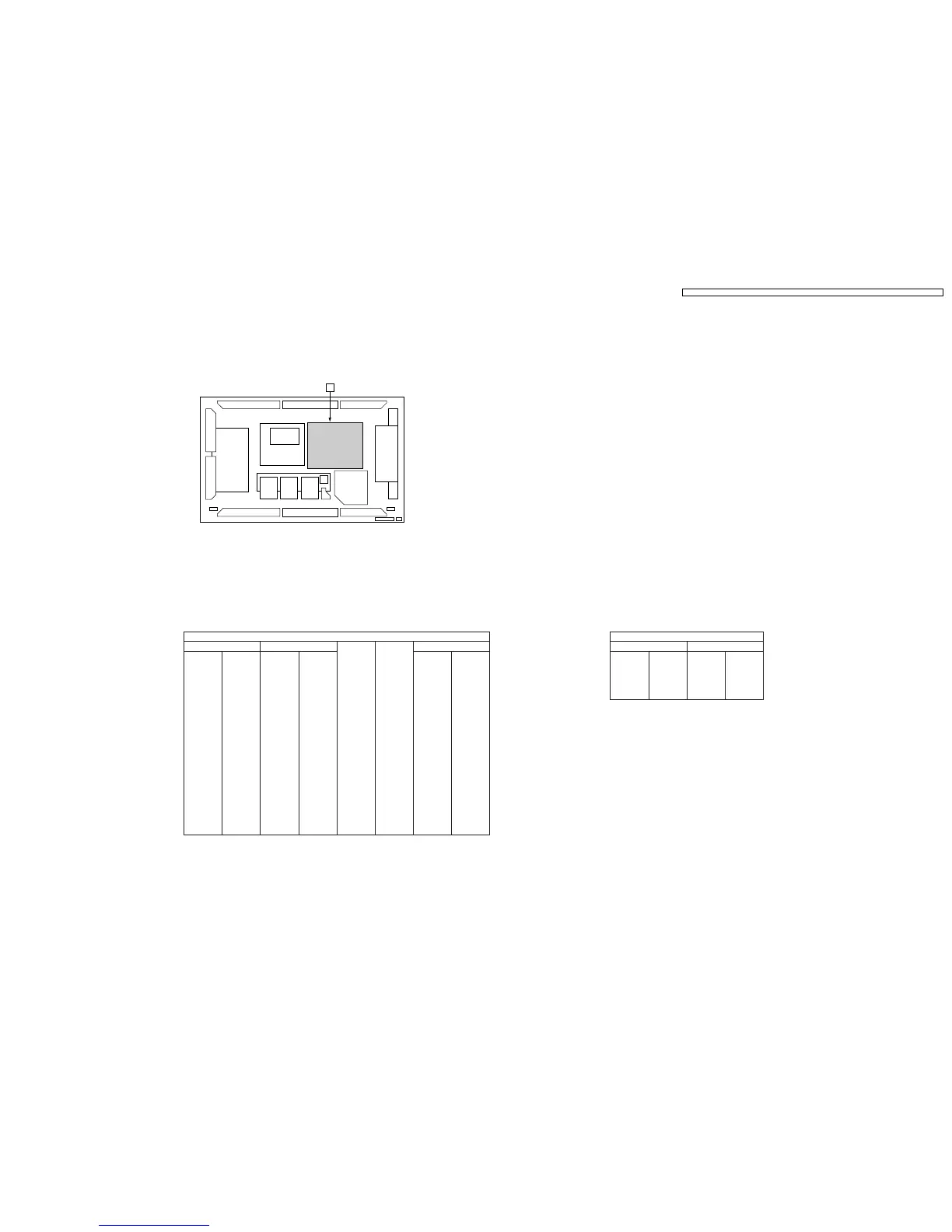

P-BOARD PARTS LOCATION
TH-50PHD7BK/BS/EK/ES/UY
TH-50PHW7BX/EX
P-BOARD PARTS LOCATION
Parts Location
P-BOARD (COMPONENT SIDE)
Parts Location
P-BOARD (FOIL SIDE)
TRANSISTOR
Q401 E-1
Q404 D-2
Q406 D-3
Q407 E-2
Q408 G-3
Q410 D-1
Q411 D-1
Q412 E-4
Q413 E-4
Q414 C-2
Q415 C-1
Q417 G-3
Q418 F-3
Q420 E-1
Q421 E-3
Q422 F-1
Q501 G-4
Q502 G-4
Q503 H-5
Q504 C-2
Q506 B-3
Q508 F-5
Q509 F-5
Q510 G-5
Q511 B-4
Q512 B-3
Q513 B-3
Q514 C-2
Q515 B-2
Q516 C-3
Q518 F-4
Q519 F-4
Q520 C-3
Q521 G-4
Q522 H-4
Q524 F-5
Q525 B-2
Q527 F-5
Q528 B-2
Q535 H-5
Q536 G-5
Q537 G-5
Q538 G-5
Q540 F-5
Q541 F-4
Q542 F-4
Q544 G-5
Q545 F-4
Q547 G-4
Q550 H-5
Q551 H-5
Q552 H-5
Q553 G-5
Q554 G-5
Q555 G-5
TP1 D-2
TP2 C-3
TP3 D-3
TP4 D-3
TP5 E-2
TP6 E-2
TP7 E-2
TP8 E-2
TP9 C-5
TP10 C-6
TP11 C-6
TP12 C-6
IC401 G-3
IC402 G-3
IC403 H-3
IC404 G-3
IC405 G-3
IC406 E-2
IC408 G-3
IC409 F-3
IC410 G-3
IC411 H-3
IC501 H-5
IC502 G-5
IC503 G-4
IC504 G-4
IC507 G-5
IC512 F-5
IC520 G-4
IC521 B-3
IC522 B-3
IC523 F-4
IC524 F-4
IC525 B-2
IC TP
IC406 D-1
IC409 C-3
IC504 B-4
IC512 C-5
IC
Q406 E-2
Q410 F-1
Q412 D-4
Q413 E-4
Q414 G-2
Q415 G-1
Q527 D-5
TRANSISTOR
P
TH-50PHW7BX / TH-50PHW7EX / TH-50PHD7EK / TH-50PHD7ES / TH-50PHD7BK / TH-50PHD7BS / TH-50PHD7UY
35
