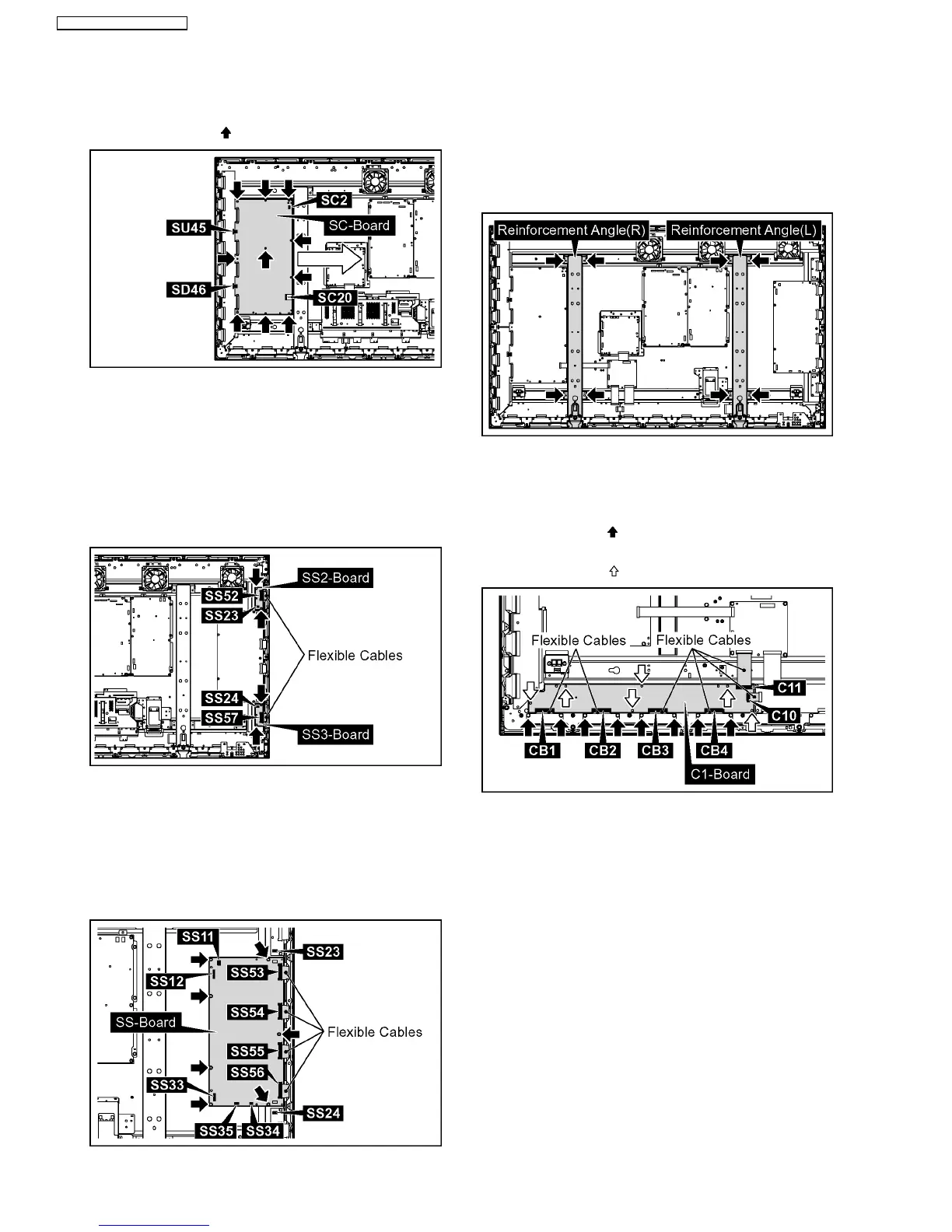

Panasonic TH-58PH10BK - Removal of SC-Board; Removal of SS2-Board and SS3-Board; Removal of SS-Board; Removal of C1, C2 and C3-Board

6.11. Removal of SC-Board
1. Disconnect the connectors (SU45, SD46, SC2, SC20).
2. Remove 10 screws (
) and then slide SC-Board to the right.
6.12. Removal of SS2-Board and
SS3-Board
1. Disconnect the connectors (SS23, SS24).
2. Remove the Flexible Cables from the connectors (SS52,
SS57).
3. Remove 4 screws and then remove SS2-Board and SS3-
Board.
6.13. Removal of SS-Board
1. Disconnect the connectors (SS11, SS12, SS23, SS24,
SS33, SS34, SS35).
2. Remove the Flexible Cables from the connectors (SS53,
SS54, SS55, SS56).
3. Remove 7 screws and then remove SS-Board.
6.14. Removal of C1, C2 and C3-
Board
1. Remove the Slot Block.
(Refer to Removal of Slot Block)
2. Remove 8 screws and then remove the Reinforcement
Angle (L, R).
6.14.1. Removal of C1-Board
1. Remove the Flexible Cables from the connectors (C10,
C11).
2. Remove 8 screws (
) and then remove the Flexible Cables
from the connectors (CB1, CB2, CB3, CB4).
3. Remove 6 screws (
) and then remove C1-Board.
