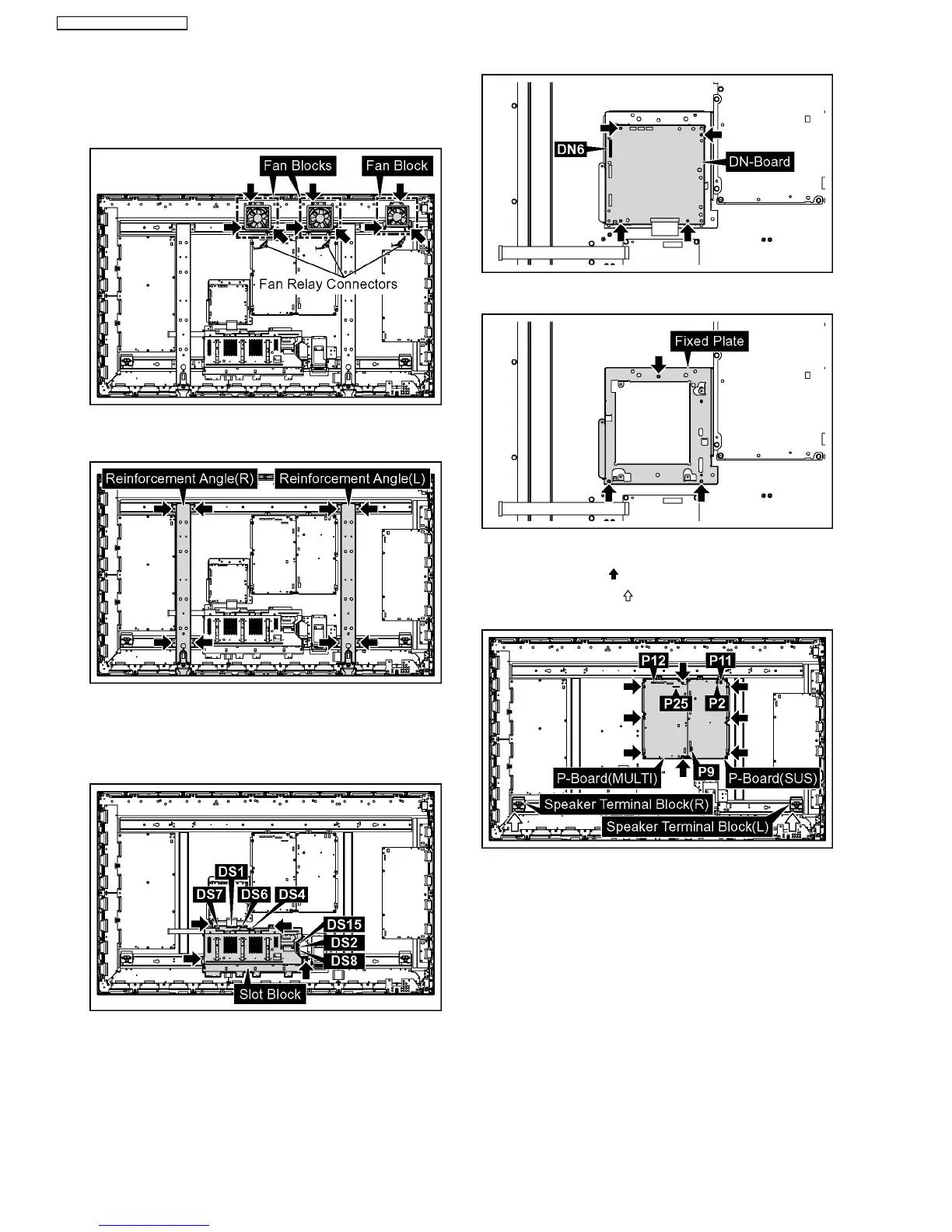

6.19. Removal of Plasma Panel
1. Disconnect the Fan Relay Connectors.
2. Remove 9 screws and then remove the 3 Fan Blocks.
3. Remove 8 screws and then remove the Reinforcement
Angle (L, R).
4. Disconnect the connectors (DS2, DS4, DS6, DS7, DS8,
DS15).
5. Remove the Flexible Cable from the connector (DS1).
6. Remove 4 screws and then remove the Slot Block.
7. Disconnect the connector (DN6).
8. Remove 4 screws and then remove DN-Board.
9. Remove 3 screws and then remove the Fixed Plate.
10. Disconnect the connectors (P2, P9, P11, P12, P25).
11. Remove 8 screws (
) and then remove P-Board.
12. Remove 2 screws (
) and then remove the Speaker
Terminal Block (L, R).
13. Disconnect the connector (D20).
14. Remove the Flexible Cables from the connectors (C11,
C21).
15. Remove 4 screws and then remove D-Board.
16
TH-58PH10BK / TH-58PH10EK
