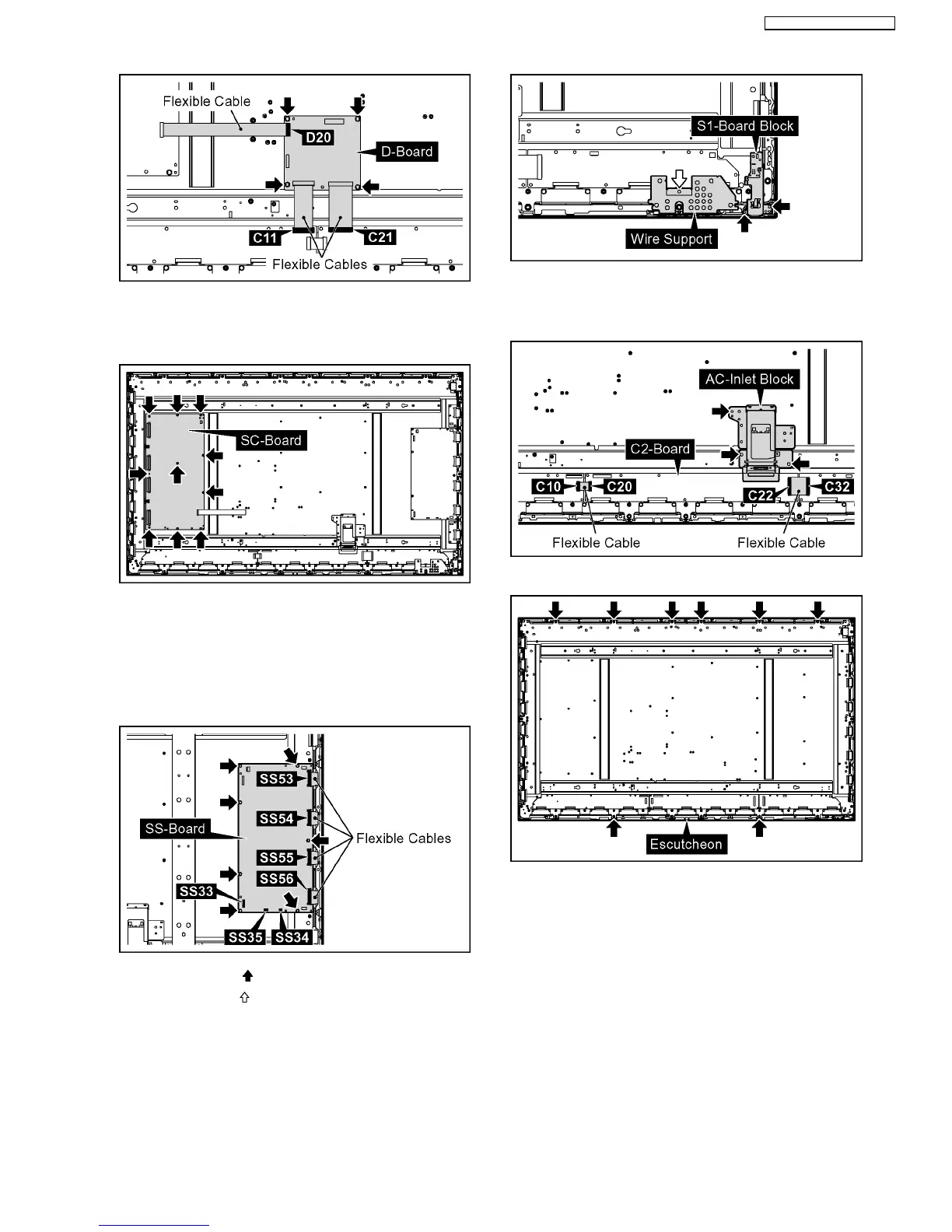

16. Remove SU-Board and SD-Board.
(Refer to Removal of SU-Board and SD-Board)
17. Remove 10 screws and then remove SC-Board.
18. Remove SS2-Board and SS3-Board.
(Refer to Removal of SS2-Board and SS3-Board)
19. Disconnect the connectors (SS33, SS34, SS35).
20. Remove the Flexible Cables from the connectors (SS53,
SS54, SS55, SS56).
21. Remove 7 screws and then remove SS-Board.
22. Remove 2 screws ( ) and then remove the S1-Board Block.
23. Remove 1 screw (
) and then remove the Wire Support.
24. Remove 3 screws and then remove the AC-Inlet Block.
25. Remove the Flexible Cables from the connectors (C10,
C20, C22, C32).
26. Remove 8 screws of the Escutcheon.
27. Remove the 10 Spacers and Spacer Rings from the Plasma
Panel.
17
TH-58PH10BK / TH-58PH10EK
