7.2. Location of Lead Wiring (2)

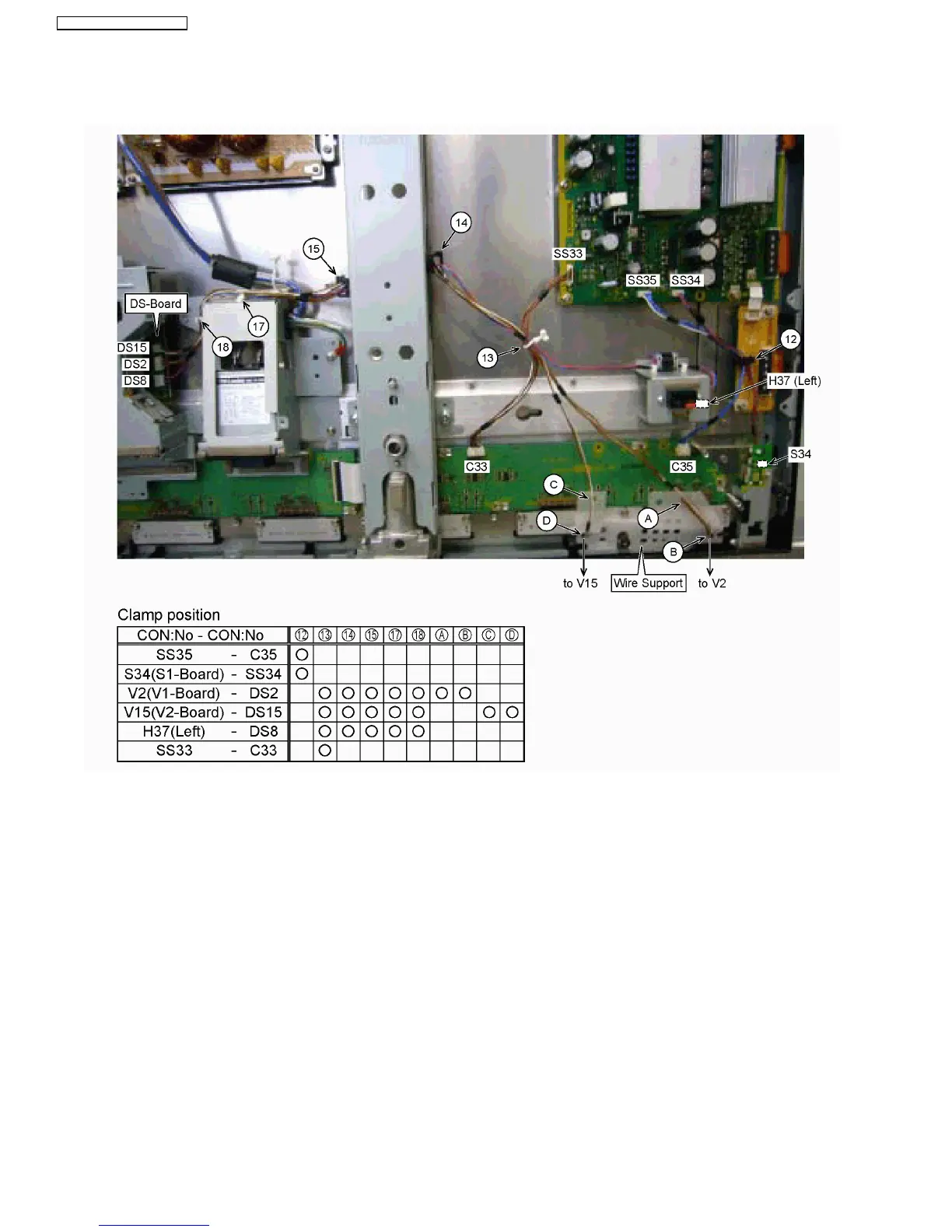

The lead wiring is dressed as shown in figure.

TH-58PH10BK / TH-58PH10EK
