Panasonic TH-65PF12EK - 3 Service Navigation; Service Hint

6
TH-65PF12EK
3 Service Navigation

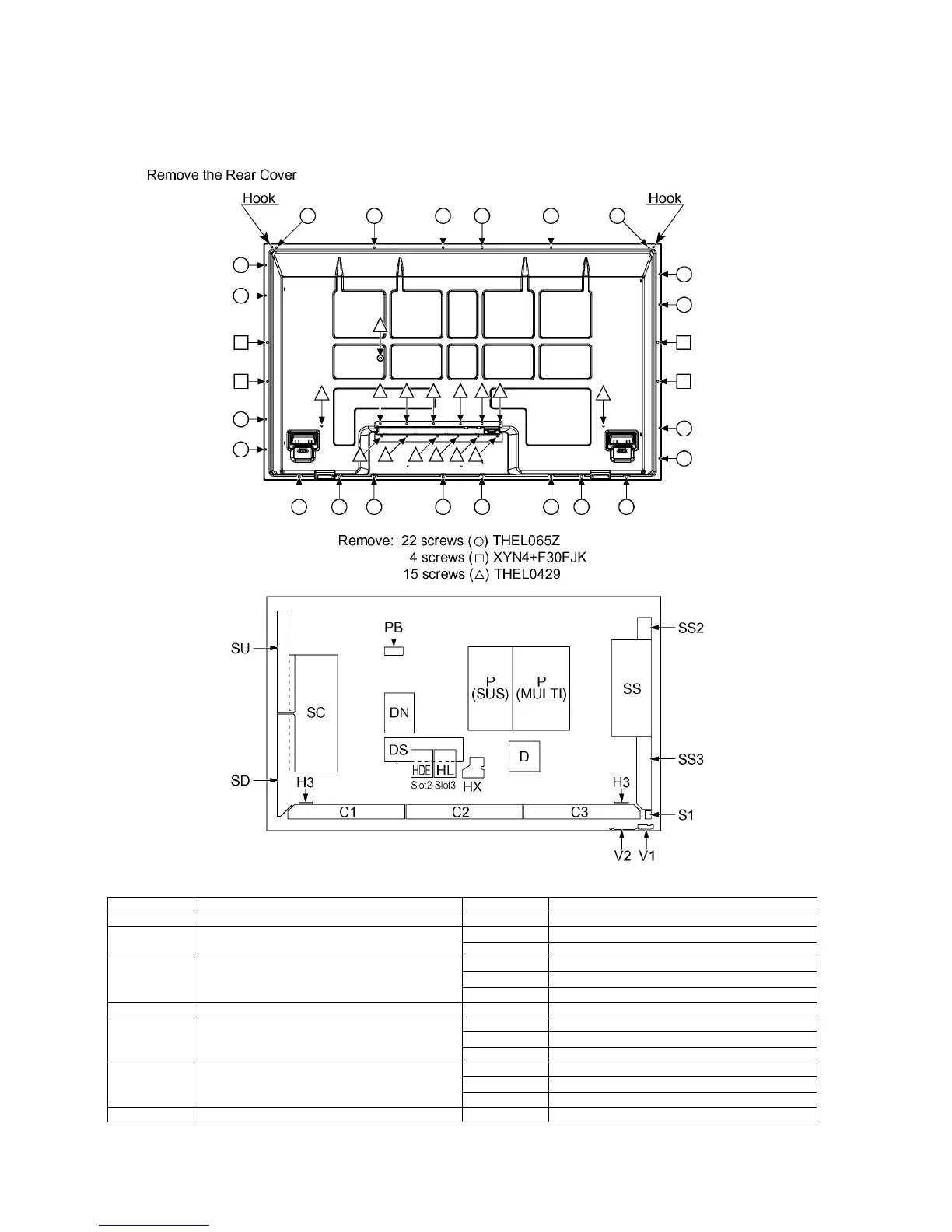

3.1. Service Hint
Board Name Function Board Name Function
DN Digital Signal Processor, Microcomputer SS2 Sustain out (Upper)
D Format Converter, Plasma AI Processor
Sub-Field Processor
SS3 Sustain out (Lower)
C1 Data drive (Right)
DS Slot Interface (Audio / Video / Sync Input Switch),
Sync Processor, Audio Processor,
Speaker Out Amplifier, DC-DC Converter
C2 Data drive (Center)
C3 Data drive (Left)
S1 Power switch
SC Scan drive V1 Remote receiver, LED-G, R
SU Scan out (Upper)
Non serviceable.
SU-Board should be exchanged for service.
V2 Key switch
PB Fan Control
P Power supply
SD Scan out (Lower)
Non serviceable.
SD-Board should be exchanged for service.
H3 Speaker terminal
HX PC / RS-232C_Input terminal
HDE DVI-D terminal
SS Sustain drive HL Component Video terminal (BNC), LAN terminal
