Panasonic TX-51P950M - Service Position for KA-Board; Voltage Chart

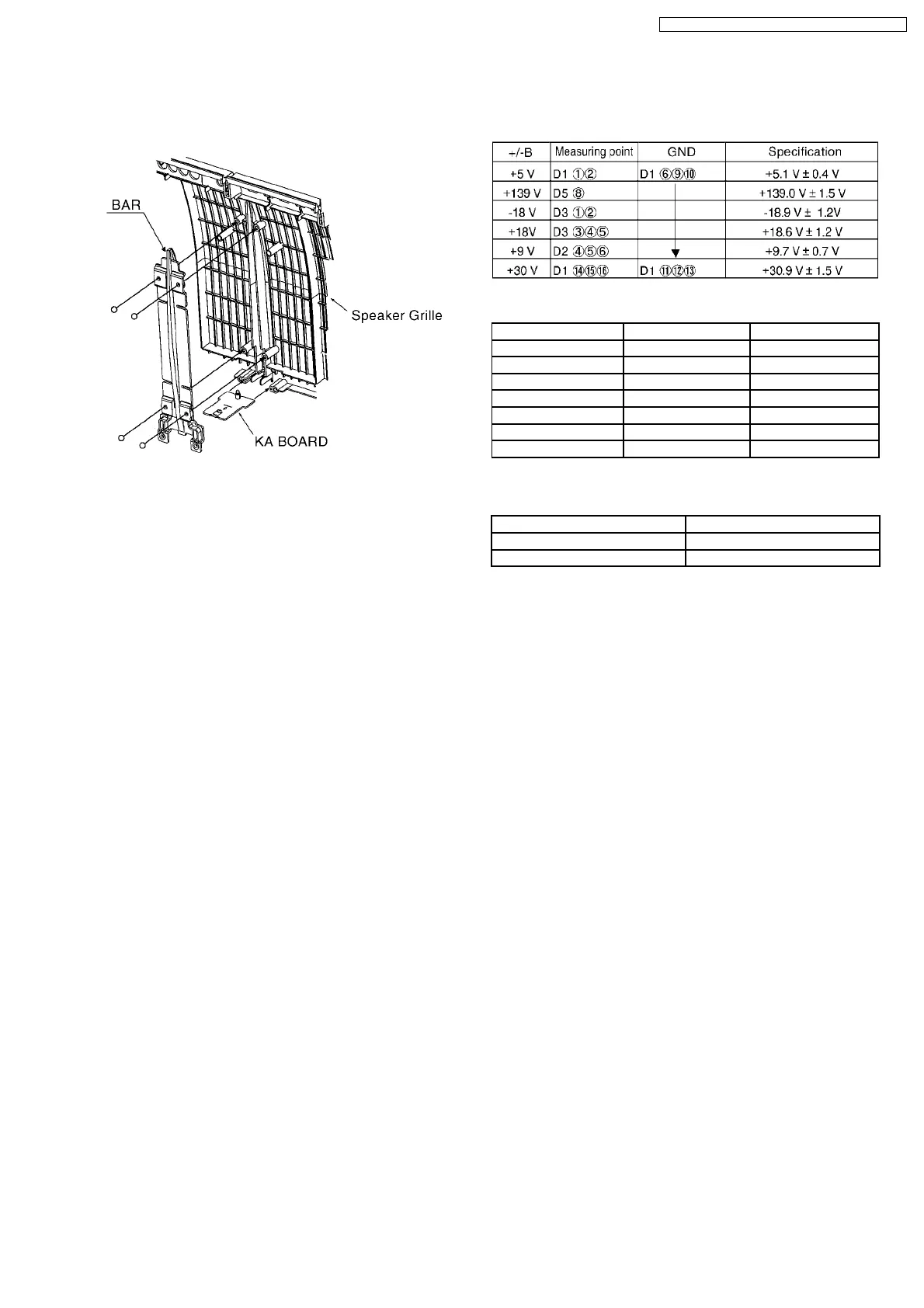

4.4. Service Position for KA-Board
1. Remove the Speaker Grille.
2. Remove the Terminal Door by (4) screws.
3. Remove the KA-Board.
4.5. VOLTAGE CHART
D-BOARD
A-BOARD
SUPPLY TEST POINT VOLTAGE
12V ~ GND A5 PIN9 11.9 ± 0.45V
TNR-5V ~ GND IC001 PIN3 5.0V ± 0.4V
9V ~ GND IC058 PIN3 9.0V ± 0.4V
8V ~ GND IC2000 PIN2 8.0V ± 0.4V
5V ~ GND IC2002 PIN3 5.0V ± 0.4V
3.3V ~ GND IC065 PIN2 3.2V ± 0.2V
2.5V ~ GND IC1402 PIN4 2.5V ± 0.25V
Heater Voltage And High Voltage
TPLB3(+) ~ TPLB2(-) 6.3 ± 0.24VRMS
High Voltage 31.5+1.0KV,-1.5KV
13
TX-51P950M / TX-51P950X / TX-43P950M / TX-43P950X
