Panasonic TX-51P950M - Sub Contrast Adjustment; Sub Color Adjustment

9.2. Sub Contrast Adjustment
Preparation
Picture Menu : Dynamic
C Temp : Standard High-R/B : 128
AI : ON Low-G : 640
P-NR : AUTO Low-R/B :***(Adjustment value)
Scan Mode : 100Hz (PAL)
Cut off Adjustment has been adjusted
Adjustment
1. Receive a Cross Hatch pattern.
2. Connect an oscilloscope to TPLG1 on LG-Board.

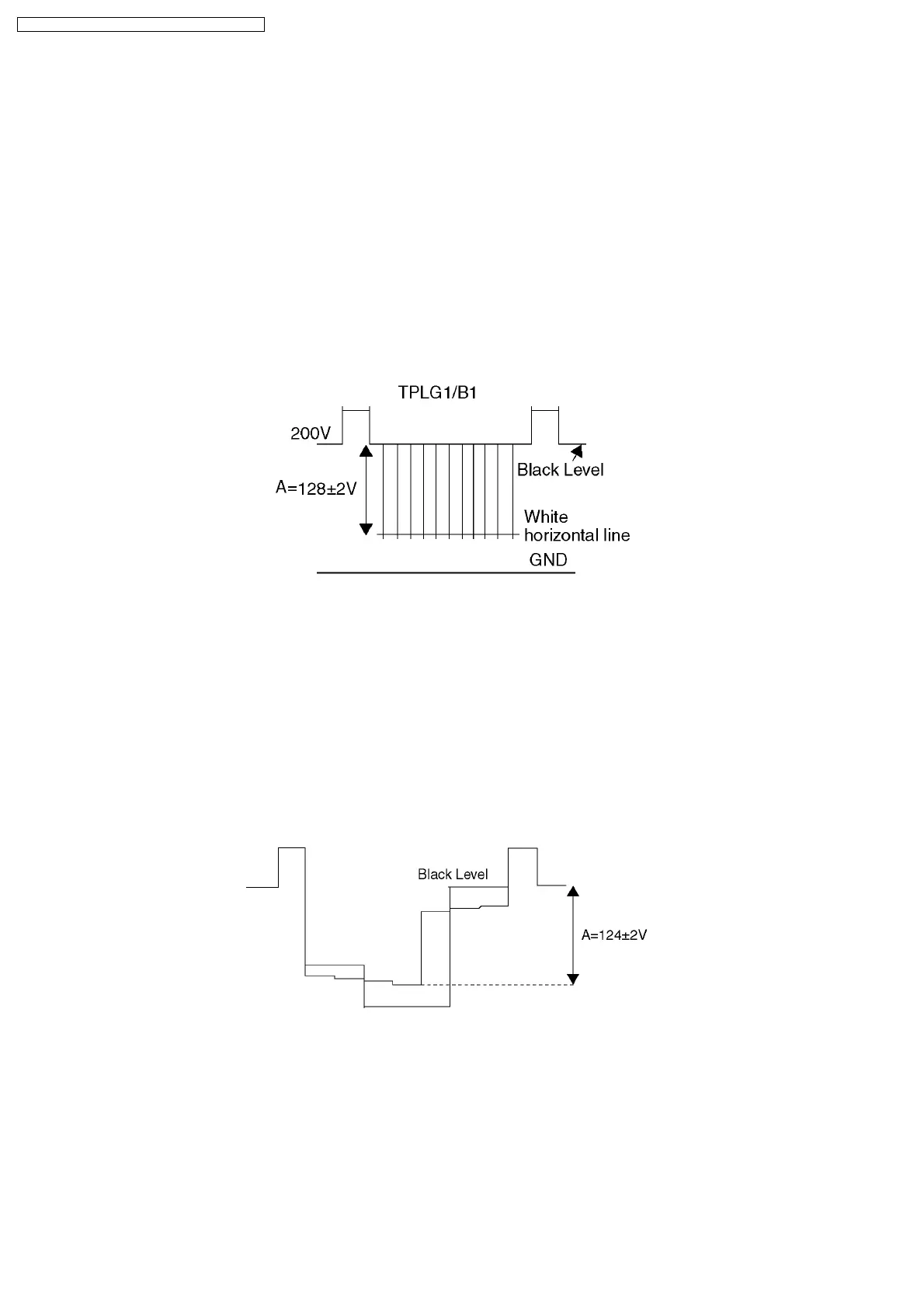

3. Adjust Sub Contrast so that the waveform A is 128 ± 2V.
9.3. Sub Color Adjustment
Preparation
Picture Menu : Dynamic P-NR : AUTO
C Temp : Standard Scan Mode : 100Hz (PAL)
AI : ON ACL : OFF
Adjustment
1. Receive a PAL Colour Bar pattern.
2. Connect an oscilloscope to TPLG1 on LG-Board.
3. Adjust Sub Color so that the waveform A is 124 ± 2V.
