5 Self Check
1. Self-Check is used to automatically check the bus lines and hexadecimal code of the TV set.

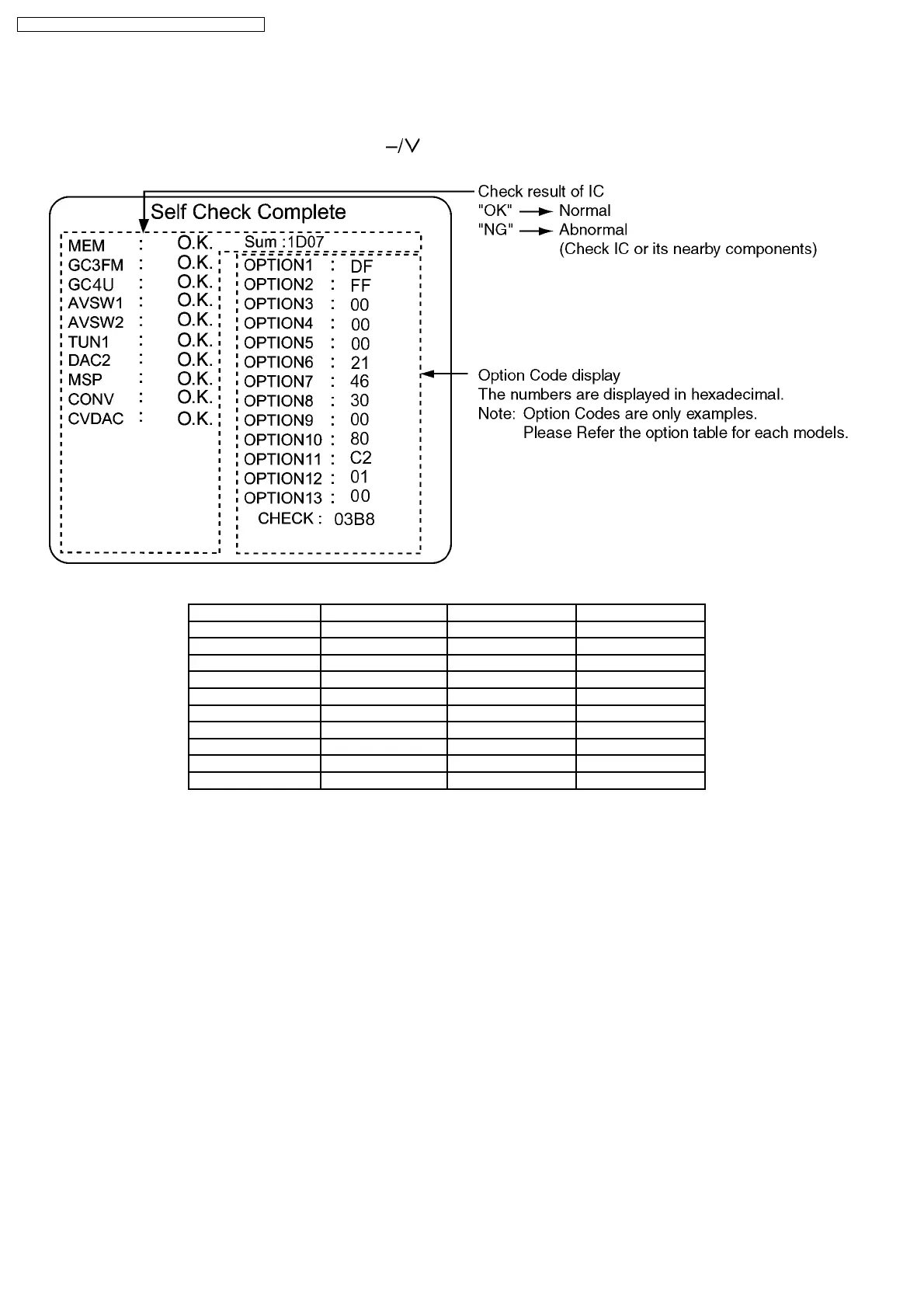

2. To get into the Self -Check mode press the down (
) button on the customer controls at the front of the set, at the same
time pressing the OFF Timer button on the remote control, and the screen will show :
If the CCU ports have been checked and found to be incorrect or not located then “--” will appear in place of “O.K.”.
Display Ref. No. Description P.C.B.
MEM IC1404 Memory A-Board
GC3FM IC4001 Grobal Core MAIN DG-Board
GC4U IC4401 Grobal Core SUB DG-Board
AVSW1 IC3001 AV Switch DG-Board
AVSW2 IC3002 AV Switch DG-Board
TNU1 TU1 Tuner A-Board
DAC2 IC1101 DAC Control2 DG-Board
MSP IC2001 Stereo Decoder A-Board
CONV IC7103 Convergence DC-Board
CVDAC IC7106 CONV. DAC DC-Board
14
TX-51P950M / TX-51P950X / TX-43P950M / TX-43P950X
To Next Page
