Panasonic TX-51P950M - Cabinet Side (L, R); Speaker Grille; Speaker AssｴY

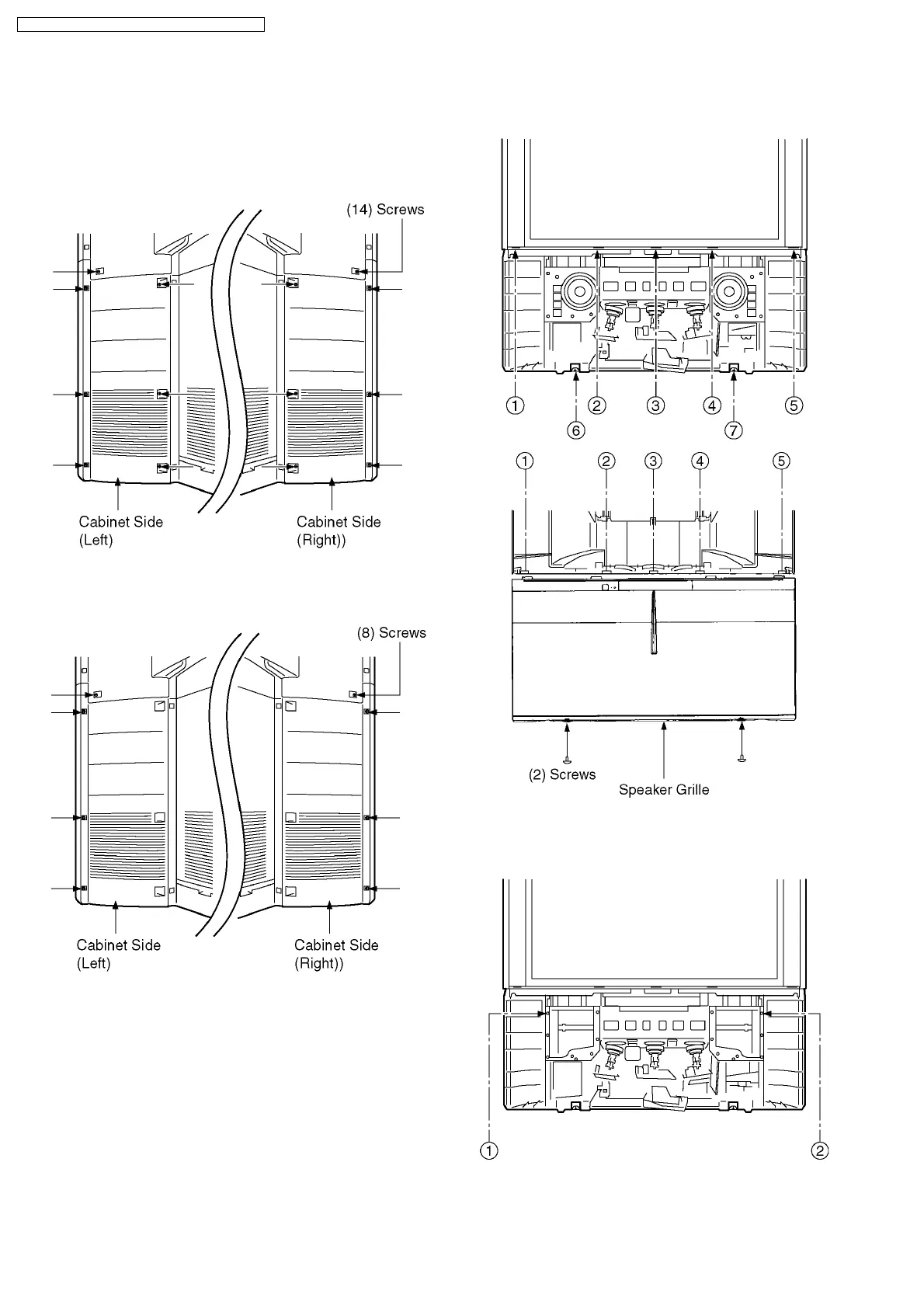

3.2. Cabinet Side (L, R)
1. Remove (14) screws.
3.3. Speaker Grille
1. Remove (8) screws.
2. Remove (2) screws.
3.4. Speaker Ass´y
1. Remove (10) screws.
Note:
Board ground wires may have to be disconnected to disassemble some boards. All ground wires must be reconnected using
jumper leads if necessary before power is applied to Receiver for service.
8
TX-51P950M / TX-51P950X / TX-43P950M / TX-43P950X
