10.3.2.6. "R-LINEAR" adjustment
Push the "TV/AV" buttons, and select the "R-LINEAR".Push the "Volume up/down" buttons, and adjust the "R-LINEAR". (Refer to
Fig. C.)
10.3.2.7. "R-PIN (V)" adjustment
Push the "TV/AV" buttons, and select the "R-PIN".Push the "Channel up/down" buttons, and adjust the "R-PIN (V)". (Refer to Fig.
D.)
10.3.2.8. "R-PIN (H)" adjustment
Push the "TV/AV" buttons, and select the "R-PIN".Push the "Volume up/down" buttons, and adjust the "R-PIN (H)". (Refer to Fig.
E.)
10.3.2.9. "R-CORNER" adjustment
Push the "TV/AV" buttons, and select the "R-CORNER".Push the "Channel up/down" buttons, and adjust the "R-CORNER". (Refer
to Fig. F.)
10.3.2.10. "R-KEY" adjustment
Push the "TV/AV" buttons, and select the "R-KEY".Push the "Channel up/down" buttons, and adjust the "R-KEY". (Refer to Fig. G.)
10.3.2.11. "R-STATIC" adjustment
Push the "TV/AV" buttons, and select the "R-STATIC.Push the "Channel/Volume up/down" buttons, and adjust "R-STATIC" so that
Horizontal & Vertical Center line is aligned with the bump in the screen center mark. (Refer to Fig. H.)
10.3.3. Blue Coarse Convergence Adjustment
10.3.3.1. Reparation

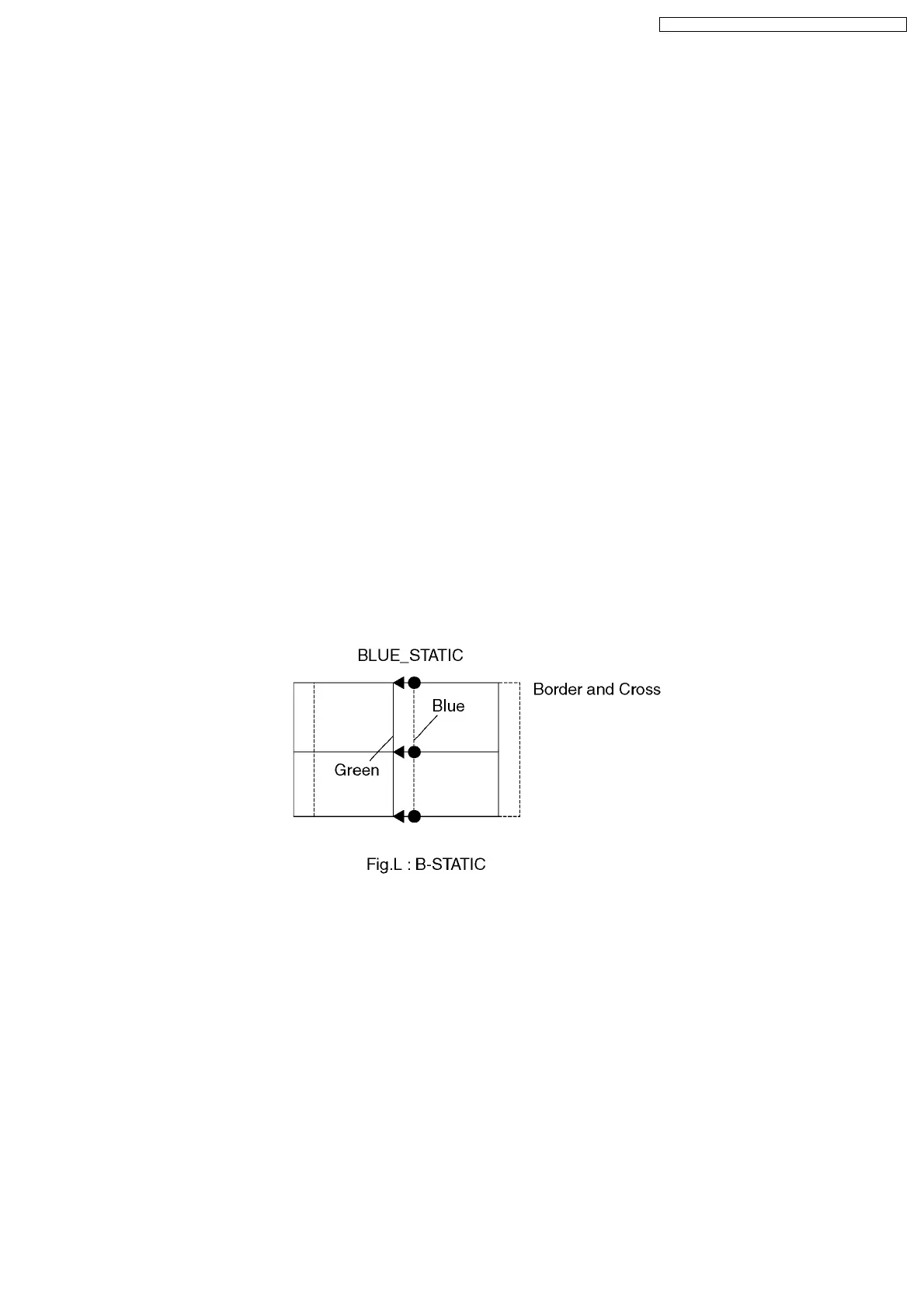

Push the "SURROUND" button, and select the Blue Adjustment mode.Push the "2" button, and select the "Border and Cross"
pattern.Push the "R-TUNE" button, and select the "Cyan" colour.Push the "POSITION" button, and adjust the "B-STATIC" so that
the Blue color of pattern is aligned with Green colour of pattern.
10.3.3.2. "B-SKEW (V)" adjustment
Push the "TV/AV" buttons, and select the "B-SKEW".Push the "Volume up/down" buttons, and adjust the reference line become
a vertical line. (Refer to Fig. J.)
10.3.3.3. "B-SKEW (H)" adjustment
Push the "TV/AV" buttons, and select the "B-SKEW".Push the "Channel up/down" buttons, and adjust reference line become a
horizontal line. (Refer to Fig.K.)
10.3.3.4. "B-SIZE (V)" adjustment
Push the "TV/AV" buttons, and select the "B-SIZE".Push the "Channel up/down" buttons, and adjust the upper and lower boarder
line of test pattern is aligned with the edge of the screen frame. (Refer to Fig. A.)
10.3.3.5. "B-SIZE (H)" adjustment
Push the "TV/AV" buttons, and select the "B-SIZE".Push the "Volume up/down" buttons, and adjust the boarder line on either side
of test pattern is aligned with the edge of the screen frame. (Refer to Fig. B.)
37
TX-51P950M / TX-51P950X / TX-43P950M / TX-43P950X
