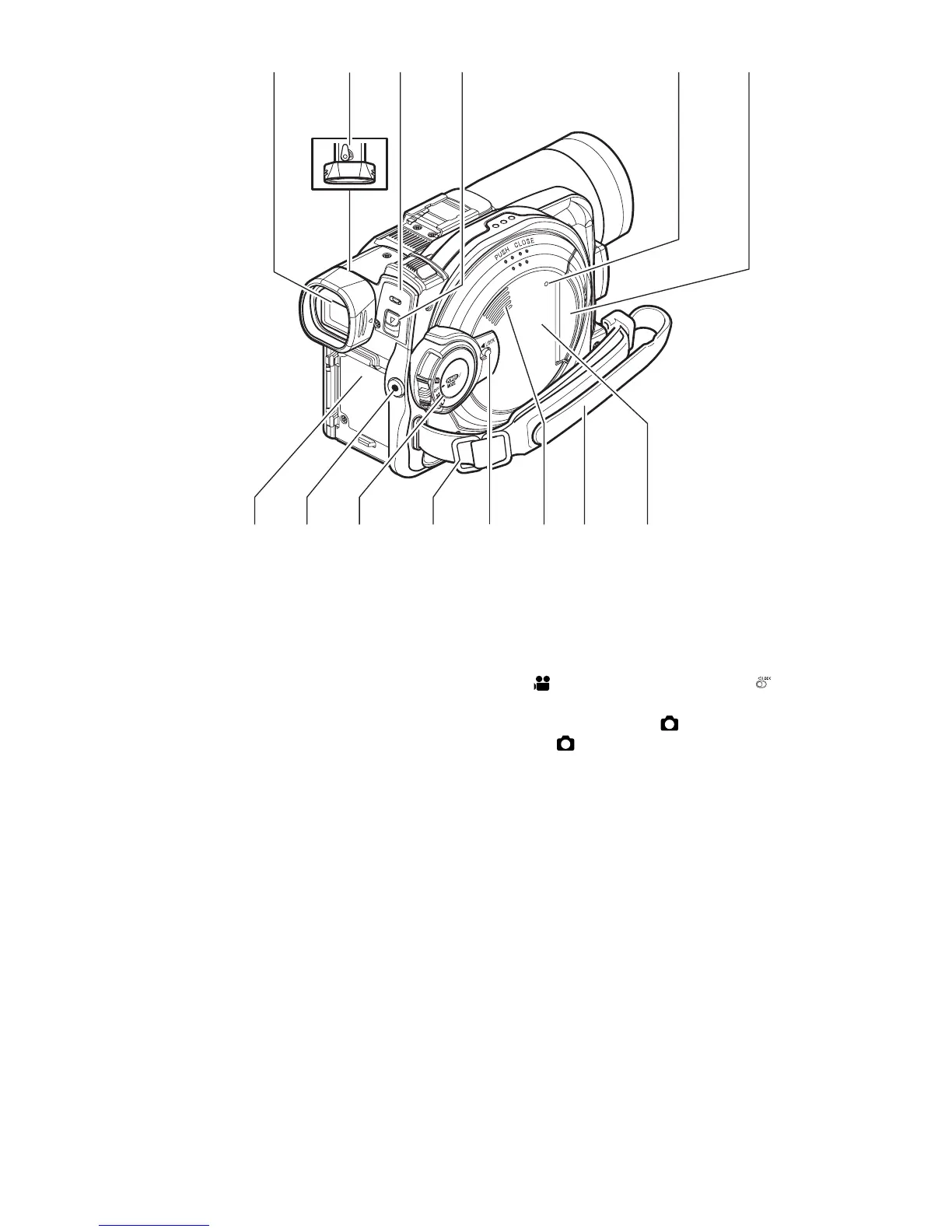

14 Viewfinder (P. 7, 37)
15 Diopter control (P. 37)
To adjust the focus of image appearing in the
viewfinder (Pull out the viewfinder.).
16 ACCESS/PC indicator (P. 9, 51, 52)
Will blink or light when the disc in DVD Video
Camera is accessed (write or read is executed) or the
DVD Video Camera is connected to PC.
17 DISC EJECT lever (P. 46)
Press and release this lever to open the disc guide.
18 CARD ACCESS indicator (P. 9, 52)
19 Card insertion block (P. 49)
20 Battery attachment platform (P. 42)
21 Record (REC) button (P. 51, 52)
22 Power switch (P. 50, 51, 52)
23 Shoulder belt attachments portion (P. 35)
24 LOCK switch (P. 25, 51)
In mode, set the LOCK switch to (to the left)
to lock the power switch so that it does not
accidentally move to .
From mode, you cannot move the LOCK switch
to the left to lock the power switch.
25 Speaker (P. 59)
26 Grip Belt (Free Style Grip Belt) (P. 34)
27 Disc insertion block (P. 46)
ACCESS/PC
DISC EJECT
C
A
R
D
A
C
C
E
S
S
14 15 16 1917
20 21 23 26
18
2522 24 27
