10 Chapter 3: Installation
Chapter 3: Installation
This chapter guides you through the steps required to install the IPR512 Receiver. It provides
you with the necessary tools and guidelines used in mounting the unit. The IPR512 Receiver
package includes a Rack-Mounting Kit and a Desktop Installation Kit.
Rack-Mount
The IPR512 Receiver can be mounted on a 19” (48.3 cm) rack. Prior to mounting the IPR512
Receiver, ensure that the rack is securely anchored. The appropriate anchoring hardware
should be used for your site.
Required Materials:
• Rack-Mounting Installation Kit (included)
• Phillips or Flat Head screwdriver
Guidelines
• Ensure that at least 1U is allocated on the rack for the IPR512 Receiver.
• Distribute the weight evenly on the rack.
• Ensure a clear path behind the receiver for wiring.
To Rack-Mount the IPR512 Receiver
1. Secure the Rack-Mounting Brackets to the IPR512 Receiver, as shown in Figure 5: Rack-
Mounted IPR512 Receiver.
2. Slide the unit into the 19” (48.3 cm) rack.
3. Secure with appropriate rack hardware (not included).

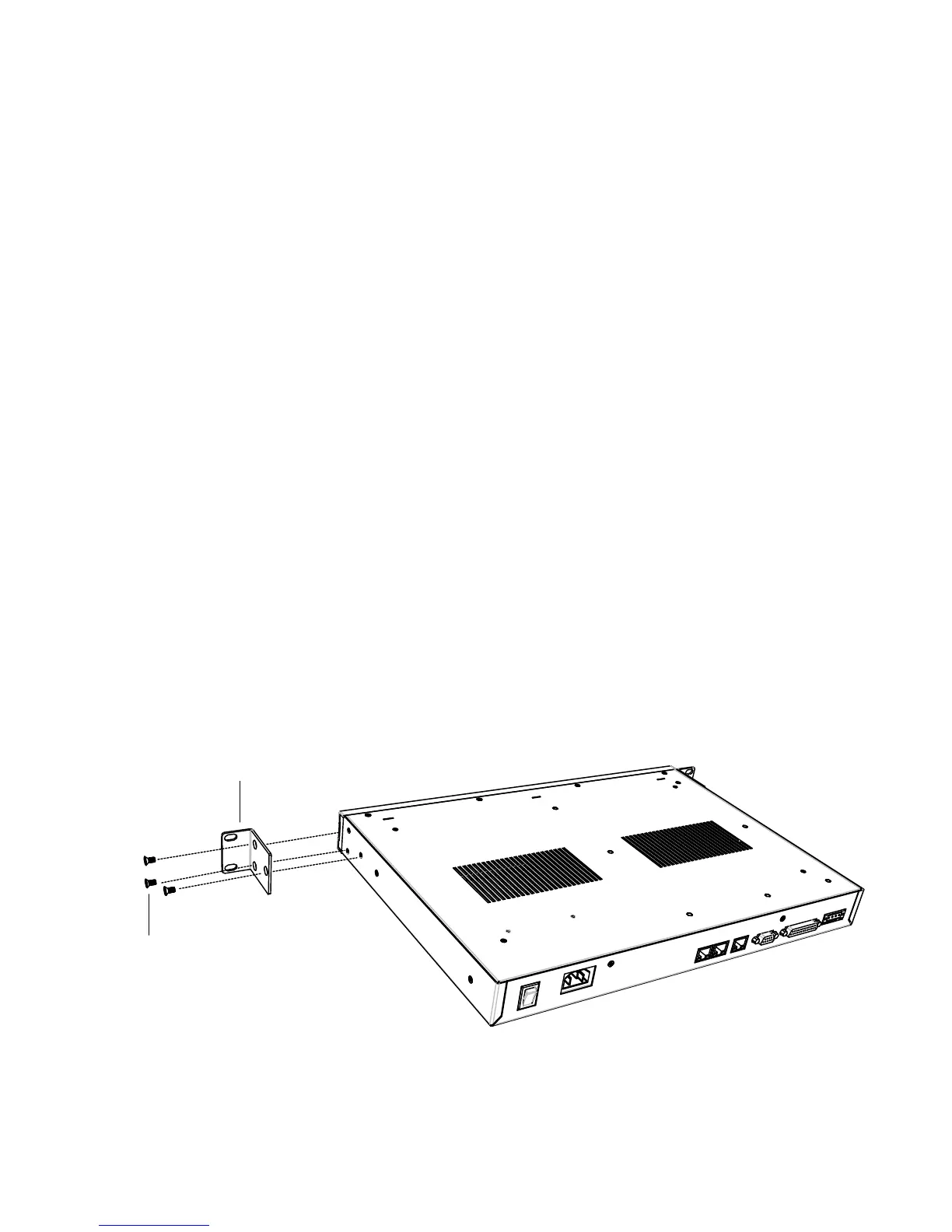

Figure 5: Rack-Mounted IPR512 Receiver
Phillips Flat Head
Machine Screw #8
Rack-Mounting
Bracket
