Chapter 6: IPR512 Receiver LCD System Configuration
43
The backlight and the contrast levels can also be configured directly on the IPR512 Receiver.
The following section describes these settings.
To Set the Contrast
1. Press OK to access the Main Menu on the IPR512 Receiver. If there are any troubles,
pressing OK will enter the Trouble Menu. If this occurs, press X to access the Main Menu.
2. Use the Up/Down arrows and scroll to “LCD settings” and press OK.
3. Use the Up/Down arrows and scroll to “Set Contrast”. The LCD will display the selected
menu item.
4. Use the Left and Right arrows to change the value and press OK when done. Press X to quit
without saving.

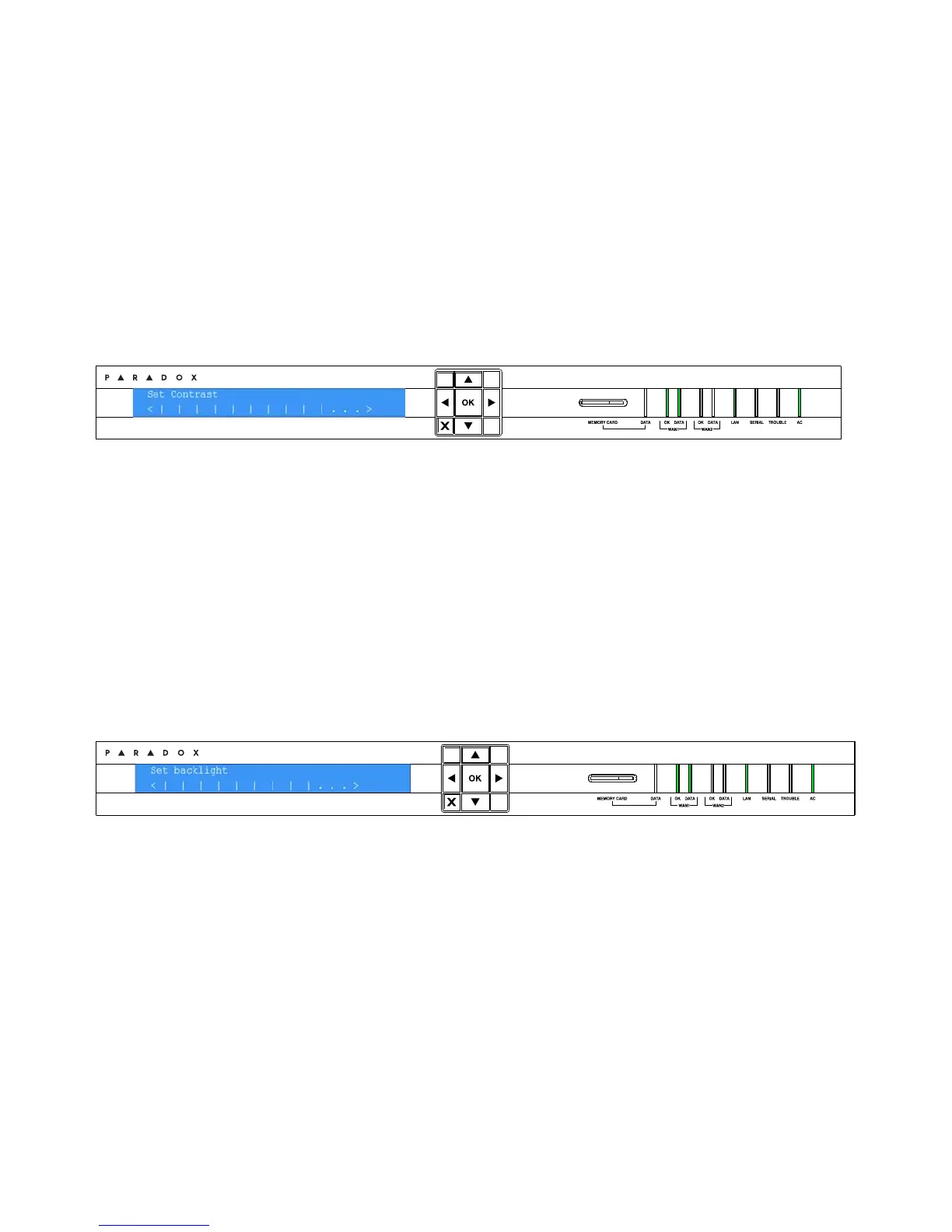

Figure 40: IPR512 Receiver Contrast Setting
To Set the Backlight
1. Press OK to access the Main Menu on the IPR512 Receiver. If there are any troubles,
pressing OK will enter the Trouble Menu. If this occurs, press X to access the Main Menu.
2. Use the Up/Down arrows and scroll to “LCD settings” and press OK.
3. Use the Up/Down arrows and scroll to “Set backlight”. The LCD will display the selected
menu item.
4. Use the Left and Right arrows to change the value and press OK when done. Press X to quit
without saving.
Figure 41: IPR512 Receiver Backlight Setting
