Chapter 2: Overview
5
End-to-End Supervision
The entire communication line (control panel, internet module, receiver and automation
software) is fully supervised and can be reported due to Paradox's proprietary encrypted
communication.
Programmable Polling Time and Grace Period
Up to 32 security profiles can be created per receiver with a programmable polling time and
grace period (seconds, minutes, or hours). If the receiver does not receive a presence
message from the internet module within the polling time, the receiver will then wait until the
grace period elapses before reporting a supervision loss to the monitoring station’s automation
software.
Firmware Upgradeable*
The receiver is firmware upgradeable in less than 90 seconds and features automatic update
verification.
*Automatic firmware upgrade not supported by current version. Please check the web for updates.
Other Features
• Supports CID and SIA reporting formats
• 256-bit AES data encryption
• 2-line, 40-character LCD with a 6-button interface to view troubles, backup data to/from
memory card, set IP Address and Subnet Mask for LAN port, and backlight and contrast
• Supports 19" rack mounting (1U) or desktop installation
• Output relay (triggered by selected events)*
• Input relay (sends selected events when triggered)*
• Automatic date and time synchronization via Network Time Protocol (NTP)
• Robust and durable construction
• Standard 110/220Vac power supply
• Extremely low noise and low power consumption (less than 10W)
• Secure private operating system
*Input/output relay not supported by current version. Please check the web for updates.

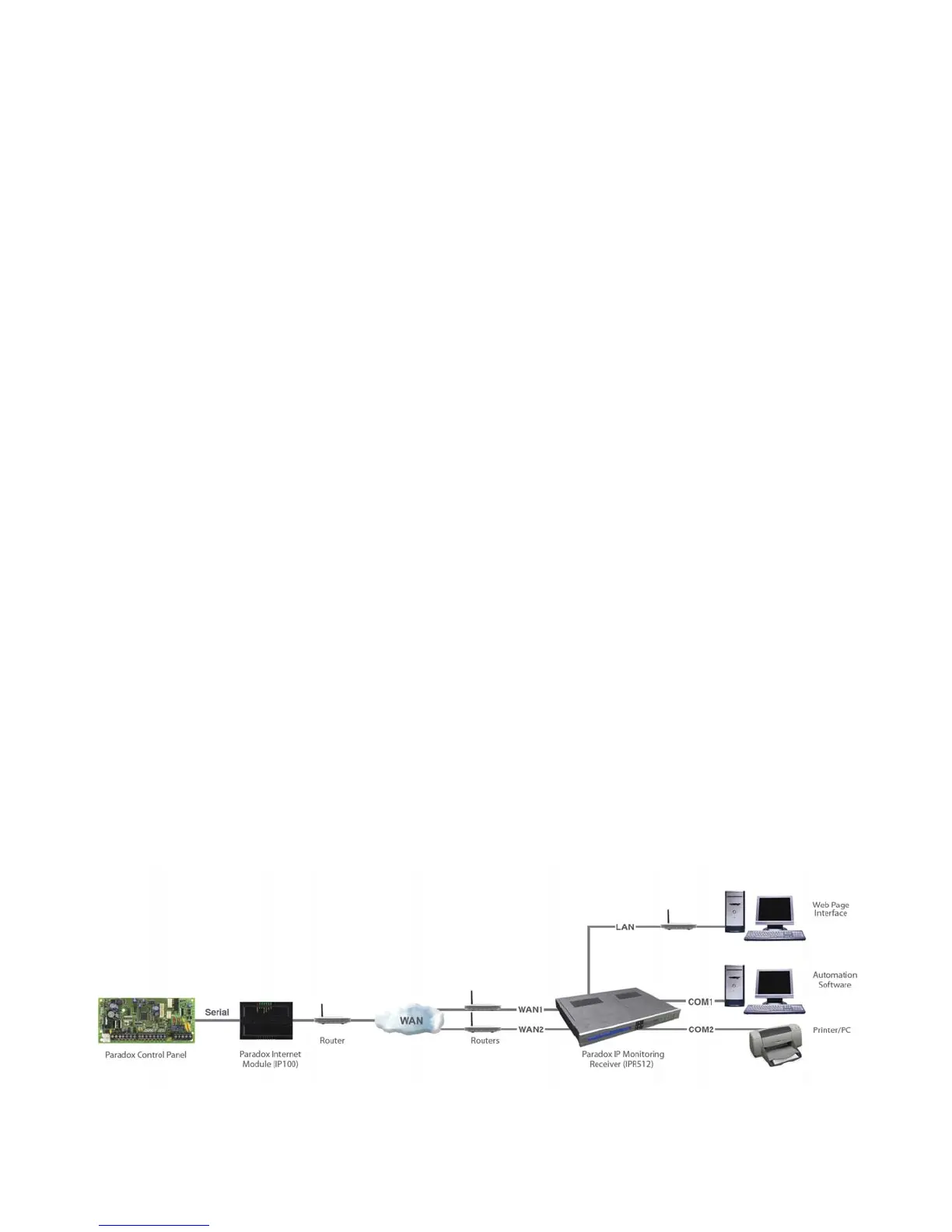

Figure 1: IPR512 Receiver Overview
