Magellan / Spectra SP 61

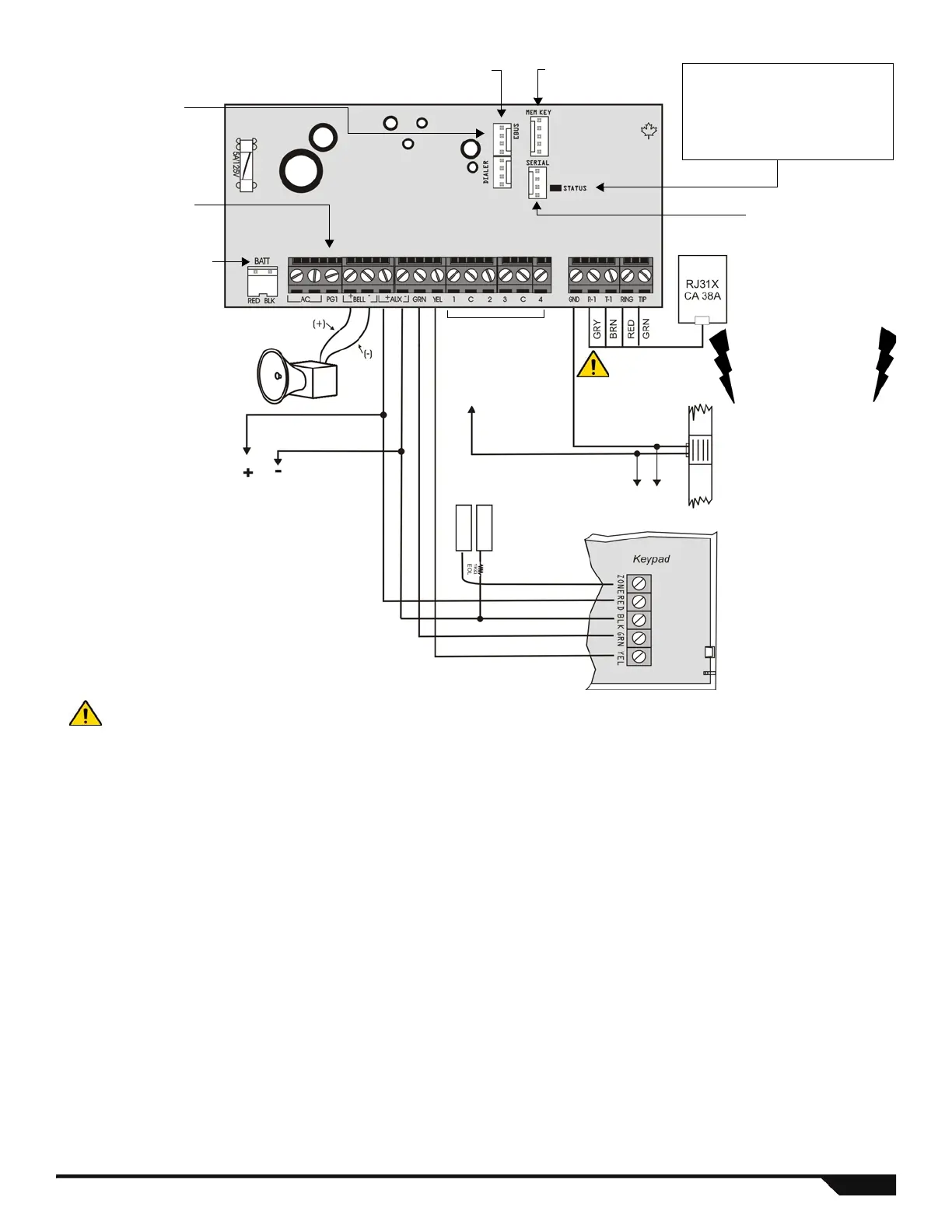

SP4000 PCB Layout
Used for connecting the
IP100 Internet Module.
Also used for In-Field
Firmware upgrade
through a 307USB Direct
Connect Interface. See
Connecting to BabyWare
on page 57 for details.
DIALER and EBUS port used for voice reporting
with the VDMP3 plug-in voice module.
Paradox Memory Key
(PMC-4, PMC5)
Status LED:
Flash once every second = Normal
Flashes ON 1 second and OFF 1
second = Any trouble
Always ON = Panel is using phone line
Fast flash 6 seconds after power up =
Installer lock enabled
Disconnect
telephone line
before servicing.
To metallic
enclosure
Ground
clamp
AWG#14 single
conductor solid
copper wire
Cold water
pipe grounding
AUX Power
Refer to transformer requirements on page 56 for Aux. Power
Output. To connect additional wiring to auxiliary power, use the
red (+) and black (-) keypad connectors. Auxiliary power will shut
down if current exceeds 450mA. If the auxiliary output is
overloaded and is shut down, you must disconnect all loads from
the output for at least 10 seconds before reconnecting any load
back to the auxiliary output.
40VA transformer strongly recommended
The "BELL" output
will shutdown if the
current exceeds 3A.
To provide maximum
lightning protection we
strongly recommend
having separate earth
connections for the
dialer and zone ground
terminals.
Max. number of keypads = 15 keypads
Max. aux. current = 650 mA
Max. distance of keypad from panel = 76m (250 feet)
Max. total run of wire = 230m (750 feet)
For the keypad’s zone
configurations, refer to the
Installer Quick Menu. If EOL
is enabled: see section [706]
option [2]. Also refer to
Keypad Zone Connections on
page 55.
Connect to any
Common input.
Refer to AC Power
& Backup Battery
Connections on
page 56.
Refer to Hardware
Connections page 55.
This equipment must be installed and maintained by qualified service personnel only.
For UL and C-UL warnings, refer to the UL and C-UL Warnings section at the back of the SP4000 Reference & Installation Manual.
Refer to PGM
Connections
on page 56.
EBUS port used for GSM reporting
using the PCS Series GSM
Communicator Module. If using a
CVT485 Plug-In RS485
Converter, connect the PCS
module to the RS485 bus.
Panel Reset
To perform a panel reset, refer to
the SP4000 instructions on page 7.
