Used for In-Field Firmware upgrade
through a 307USB Direct Connect
Interface. See Connecting to
WinLoad on page 57 for details.
Antennas
Do not cut, bend or
alter the antennas and
ensure that electrical
wires do not cross
over the antennae, as
this may affect signal
reception.
Four pin connector can
be used for quick
installation of a keypad.
Refer to AC Power
& Backup Battery
Connections on
page 56.
Paradox Memory Key
(PMC-4, PMC-5)
LEDs
Charge LED:
Charging and battery test LED
Status LED:
• Flash once every second =
Normal
• Flashes ON 1 second and
OFF 1 second = Any trouble
• Always ON = Panel is using
phone line
• Fast flash 6 seconds after
power up = Installer lock
enabled
"RX" & “TX” LED:
Flashes quickly when receiving
or transmitting RF signals from
wireless devices.
To metallic
enclosure
Ground
clamp
AWG#14 single
conductor solid
copper wire
Cold water
pipe
grounding
To provide maximum lightning
protection we strongly recommend
having separate earth connections
for the dialer and zone ground
terminals.
The "
BELL" output will
shutdown if the current
exceeds 3A.
Refer to Single Zone
Inputs on page 55.

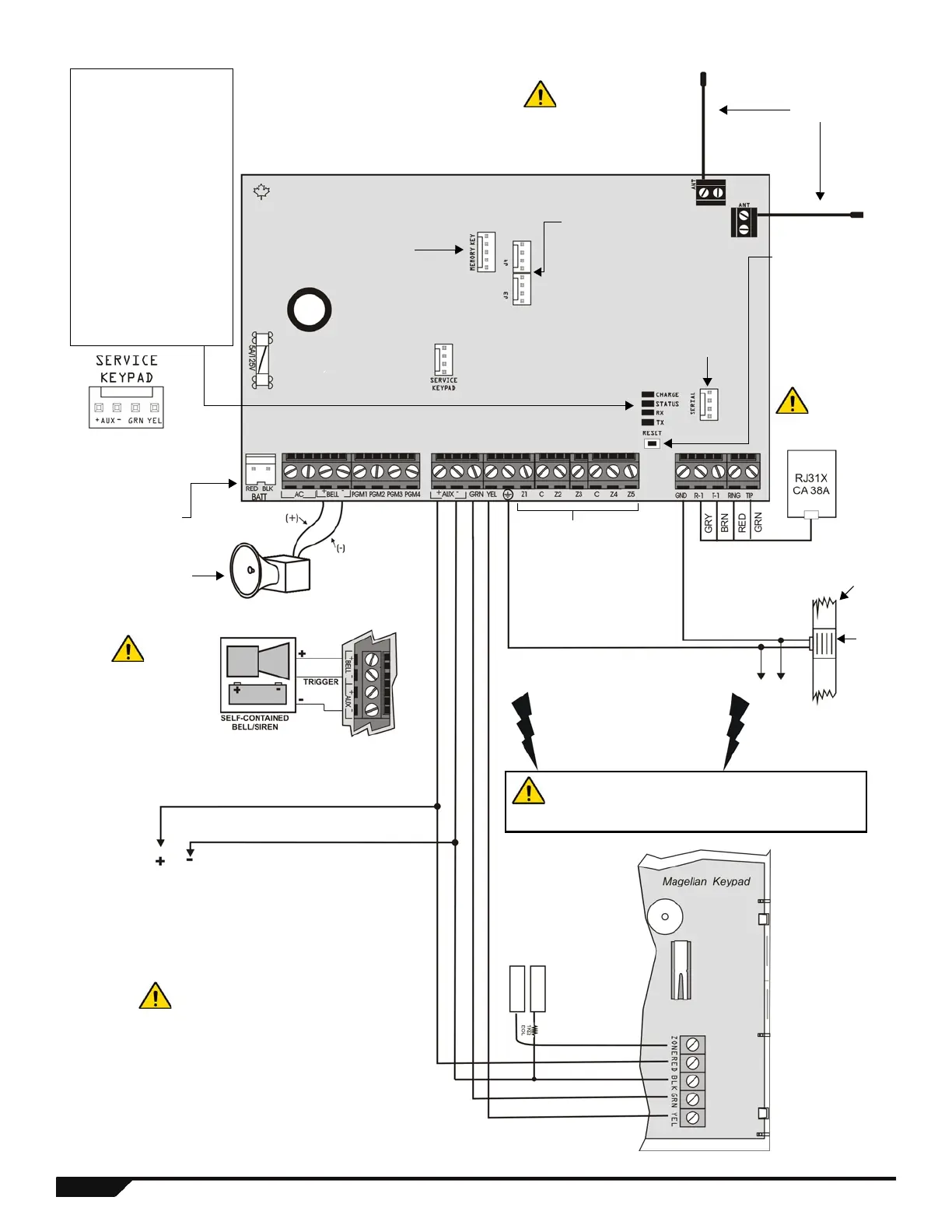

Max. number of keypads = 15 keypads
Max. aux. current = 700 mA
Max. distance of bus module from panel = 76m (250 feet)
Max. total run of wire = 230m (750 feet)
Disconnect telephone
line before servicing.
AUX Power
Refer to transformer requirements on page 56 for Aux. Power
Output. To connect additional wiring to auxiliary power, use
the red (+) and black (-) keypad connectors. Auxiliary power
will shut down if current exceeds 1.1A. If the auxiliary output
is overloaded and is shut down, you must disconnect all
loads from the output for at least 10 seconds before
reconnecting any load back to the auxiliary output.
This equipment must be installed and
maintained by qualified service personnel only.
For UL and C-UL warnings, refer to the UL and
C-UL Warnings section at the back of the
Reference & Installation Manual.
The sum of
the current
drawn from the BELL
and AUX must be
limited to 1.3A (40VA
transformer strongly
recommended).
Exceeding this limit
will overload the
panel power supply
and lead to complete
system shutdown.
Connection for Self-Contained Bell/Siren
For the keypad’s zone
configurations, refer to
the Installer Quick
Menu. If EOL is
enabled: see section
[706] option [2]. Also
refer to Keypad Zone
Connections on
page 55.
Press and hold the
RESET button for five
seconds. The STATUS
LED will start flashing.
Within 2 seconds of this
flashing, press the reset
switch again. The panel
will reset to default and
restart.
* If EOL is enabled: see section
[706] option [2]. For the
keypad’s zone configurations,
refer to Installer Quick Menu on
page 65. Also refer to keypad
zone connections on page 55.
*
Solid-state PGM
(+/- trigger on
PGM4 only)
J3 and J4 used with:
VDMP3 plug-in voice module
for voice reporting
PCS Series GSM
communicator module
