Parker Compax3 Start-Up

START UP
10 192-120112 N1 C3 Start up March 2004

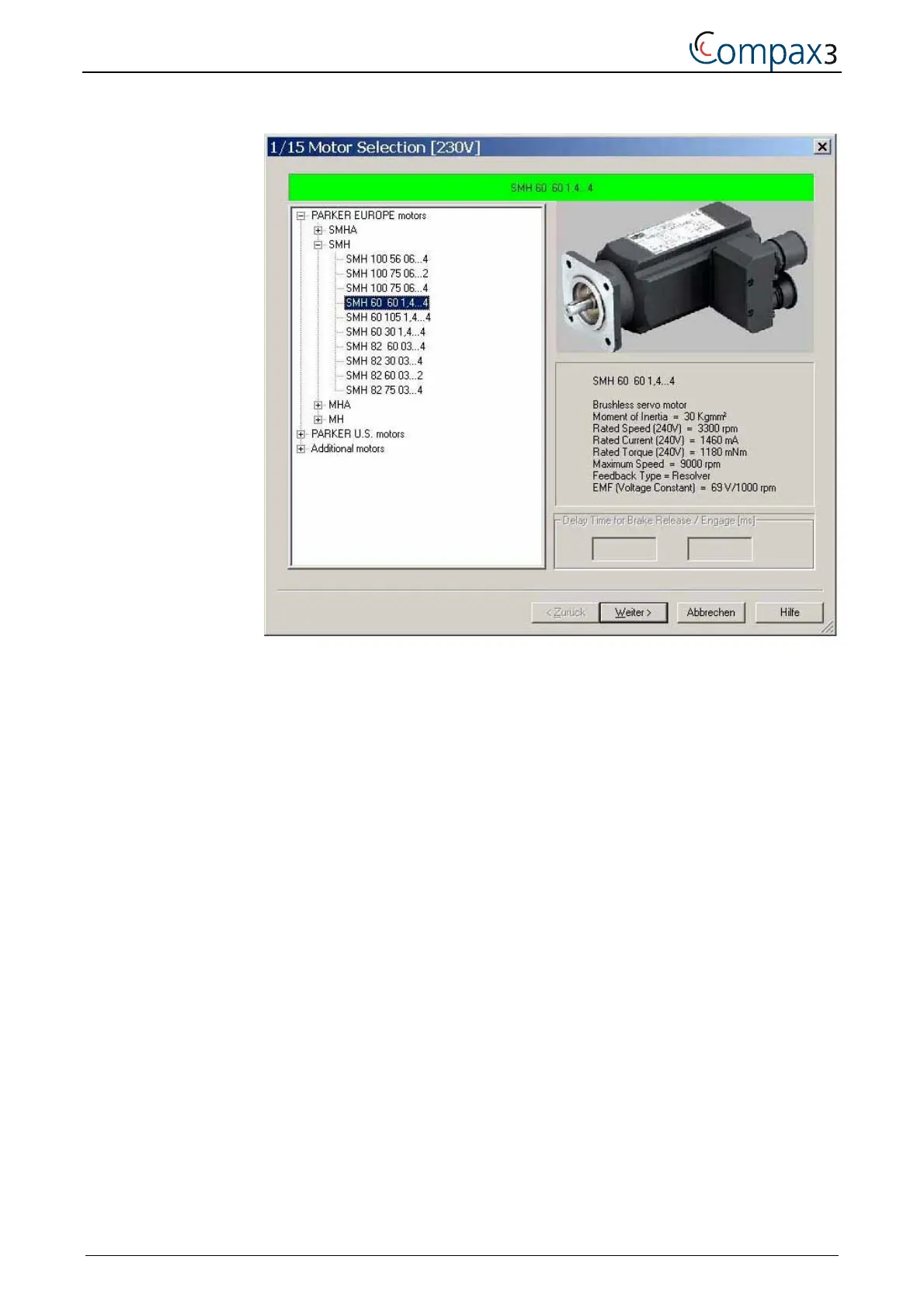

! Select the connected motor (see on the motor type designation plate)
! Confirm the settings with the "Next" button.
! All following configuration windows contain suitable standard values.
Therefore they can be acknowledged with “Next” without further entry, until you
reach the summary window.

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
