START UP
6 190-120112 N1 C3 Start up März 2004
1.2.2. Notwendige Verdrahtungen

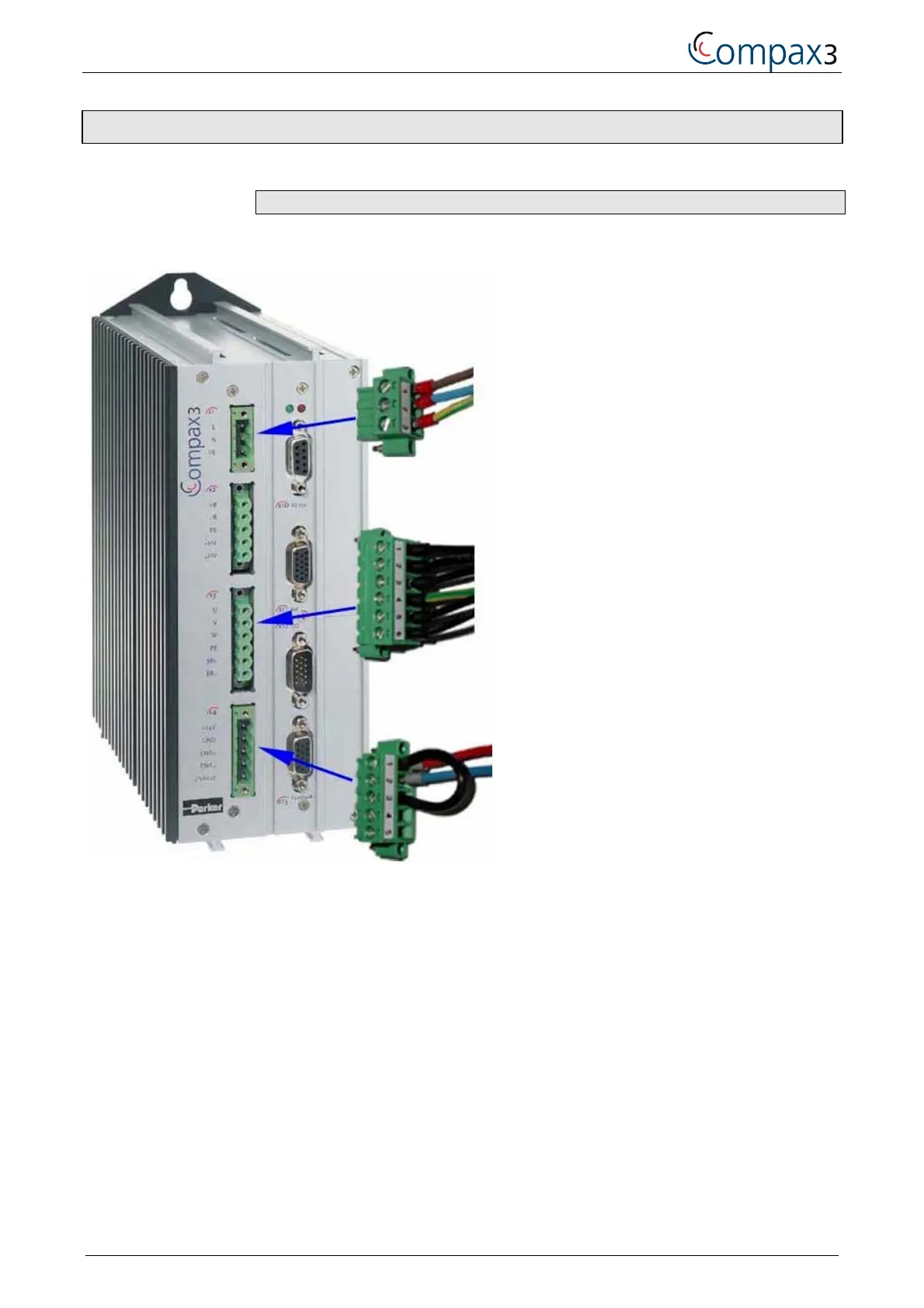

Anschlüsse Compax3
Bei V2 Gerät
X1 230VAC
Pin1 = L
Pin2 = N
Pin3 = PE
Bei V4 Gerät
X1 400VAC
Pin1 = L1
Pin2 = L2
Pin3 = L3
Pin4 = PE
X3 Motor
Pin1 = U
Pin2 = V
Pin3 = W
Pin4 = PE
Pin5 = Motorhaltebremse BR +
Pin6 = Motorhaltebremse BR –
ACHTUNG!
Pin 5+6 nur bei Motor mit Bremse verdrahten!
Ansonsten nicht.
X4 24VDC Freigabe
Pin1 = +24VDC
Pin2 = GND
Pin3 = +24VDC (ENAin)
