1.4.1.1 Define test motion parameters
In this window you can select a test motion profile.
All values entered in the „general setup settings“ and in „test motions“ are only
suggestions, which can be accepted or adapted if necessary.

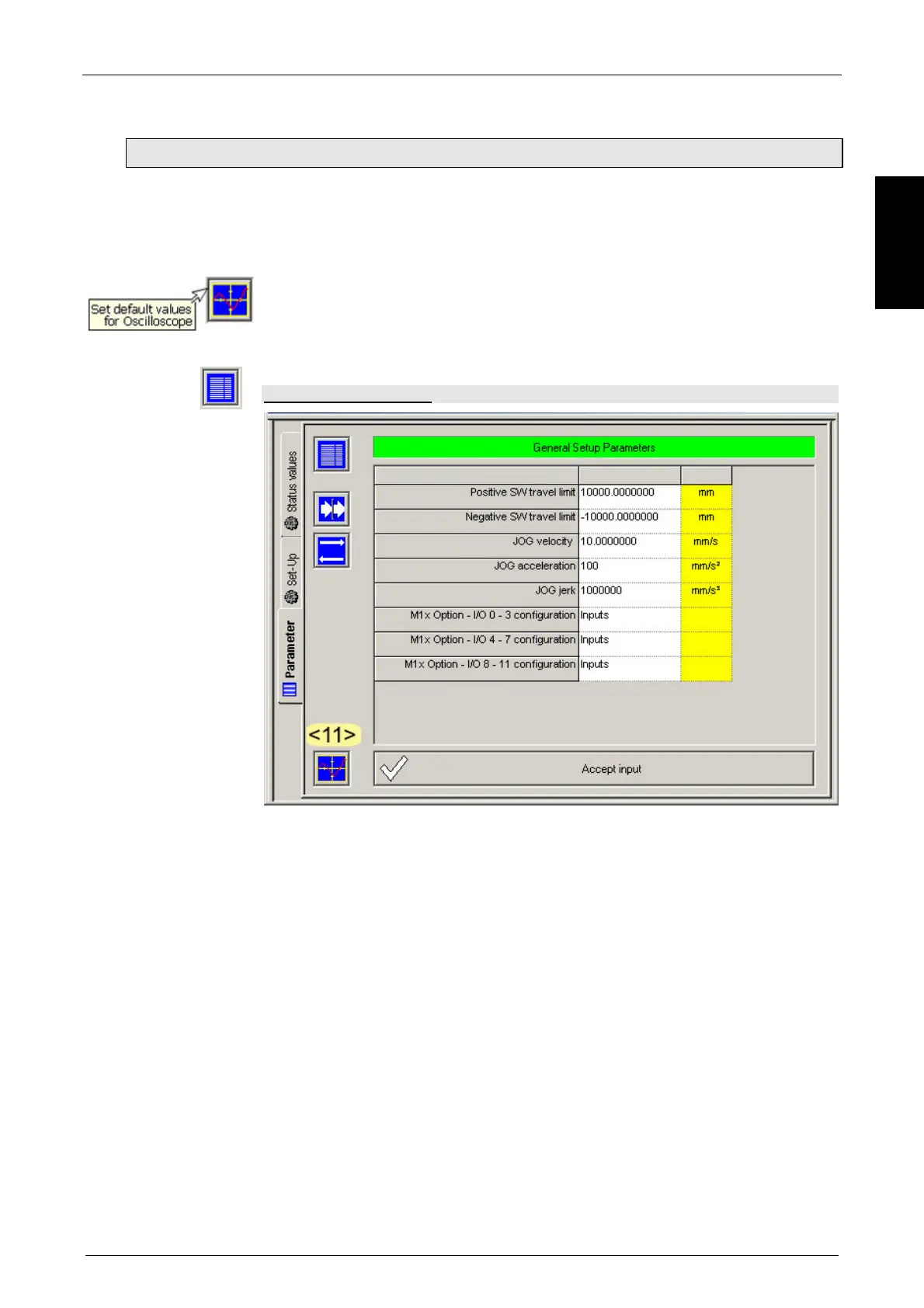

By clicking on the “Set default values for oscilloscope” button you can activate the
pre-settings for the oscilloscope (see picture below <11>).
General setup settings

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
