1.3 Configuring Compax3
! Call up C3 ServoManager.

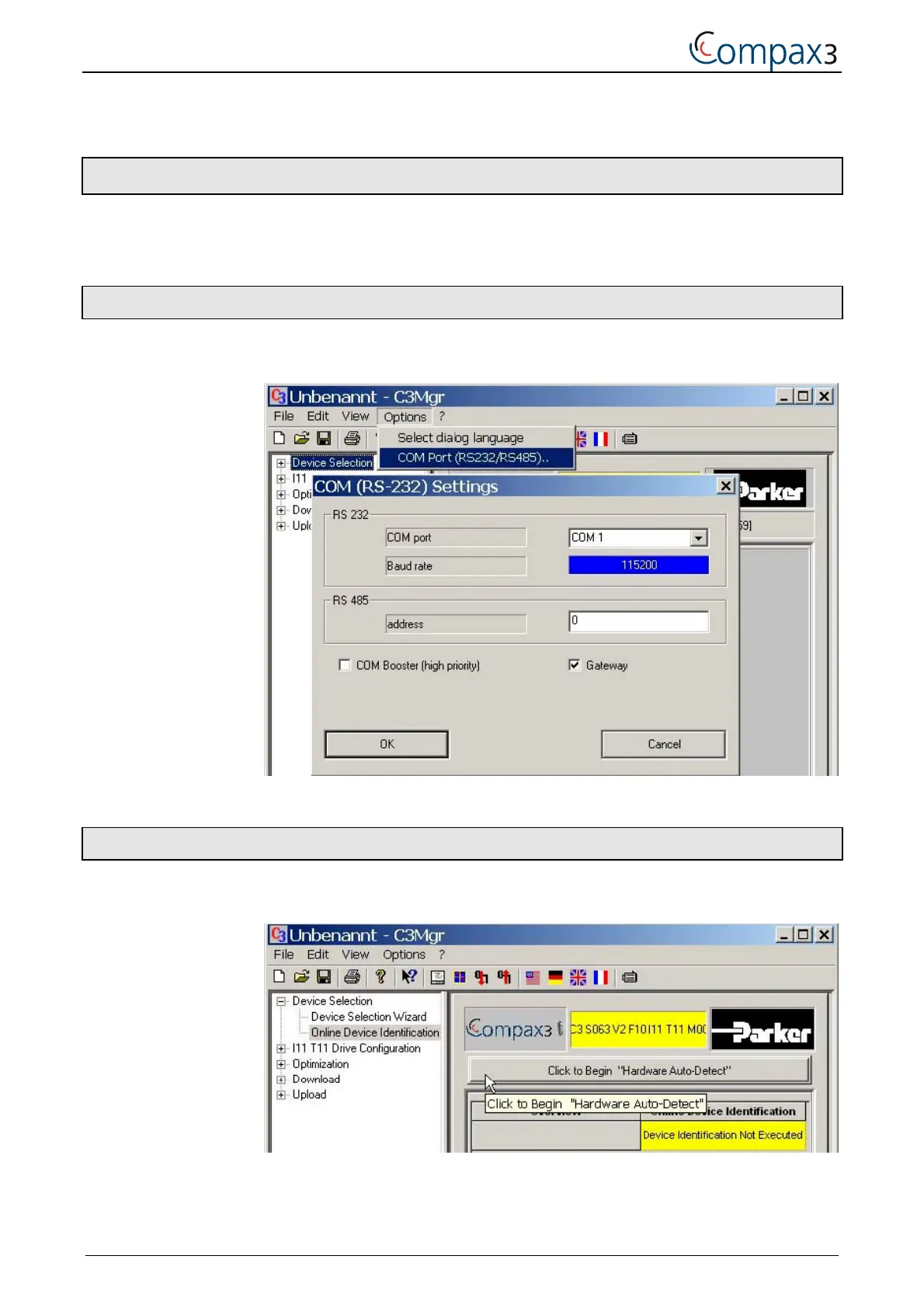

1.3.1. Set interface PC - Compax3
! Select the PC interface via which you established the RS232 connection
(Connection via SSK01).
1.3.2. Set Compax3 device type
! In order to define the device type connected, go to device selection, Online
device identification in the tree.
! The device information is read from Compax3 and then displayed.
Menu Options: open
COMPort
Online Device
Identification

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
