Parker EME
Preparation
Required wirings
192-120112 N1 C3 Start up March 2004 7
english

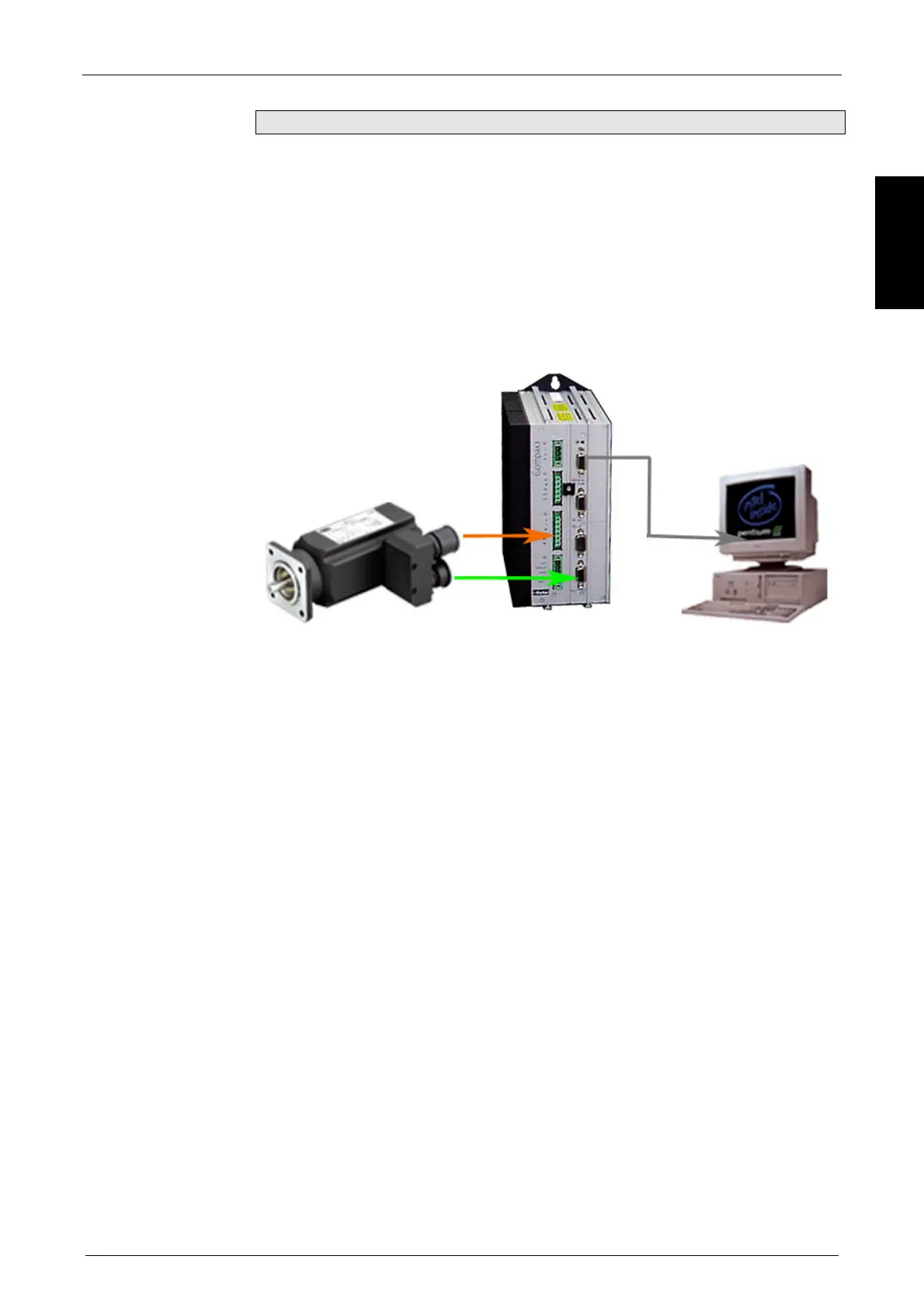

Cable connections
! Apply supply voltage to X1
! Apply 24 VDC control voltage to X4/1 and X4/2.
! Apply 24 VDC to enable input X4/3.
! Connect Compax3 to PC,
! Connect Compax3 X10 to PC (COM 1 or COM2) via RS232 cable (Parker cable
SSK1) .
! Connect motor to Compax3.
! Connect motor cable (Parker cable MOK..) to X3 (see connections of
Compax3).
! Connect resolver cable (Parker cable REK..) to Compax3 X13.
! Switch on supply voltage.
! 24VDC.
! High voltage supply 230VAC resp. 400VAC.
