Setting up Compax3
Download Configuration
192-120112 N1 C3 Start up March 2004 13
english

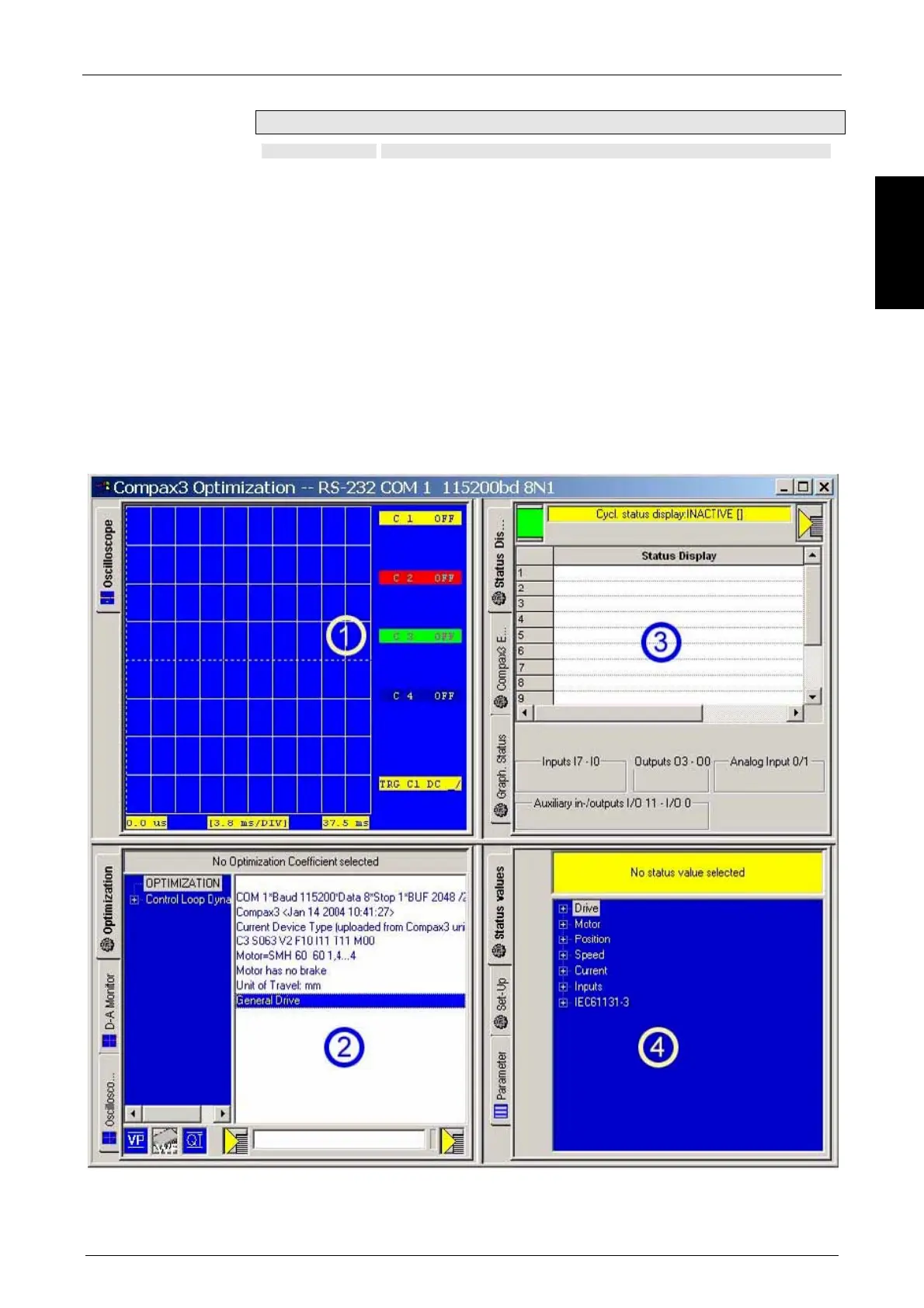

Layout of the optimization window
Segmentation Functions (TABs)
Window1: ! Oscilloscope
Window 2:
! Optimization
! D/A-Monitor
! Oscilloscope settings
Window 3:
! Status display
! Compax3 error history
! Graphic status display
Window 4:
! Status values
! Set-up
! Parameter
! Select „Setup“ in window 4.

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
