Parker Compax3 Start-Up

Parker EME
Setting up Compax3
Commissioning
192-120112 N1 C3 Start up March 2004 19
english

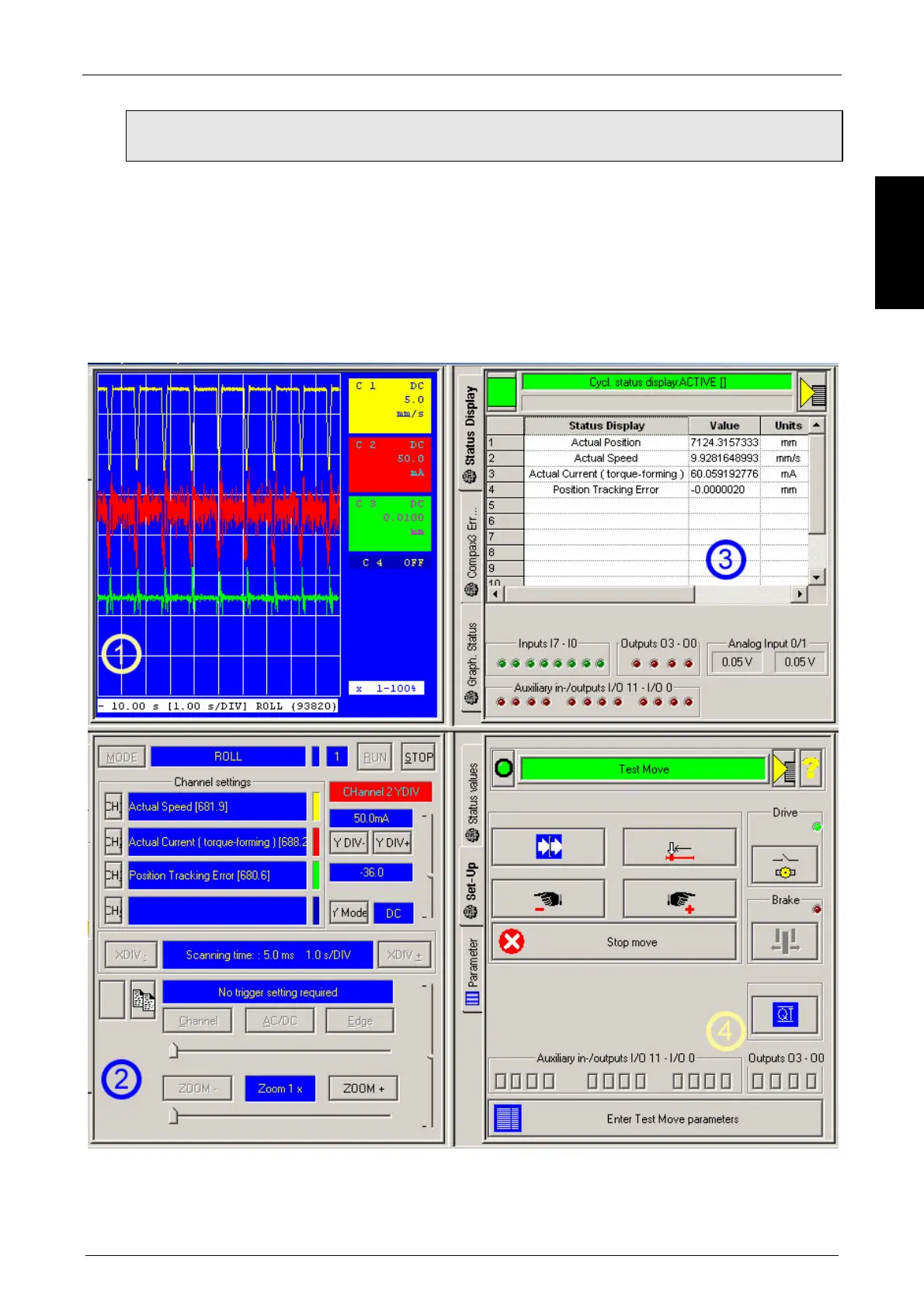

1.4.1.3 Display of the values in the oscilloscope and in the status
display
Window 1: ! Depiction of the status values in the oscilloscope (can be
started by clicking on the "RUN" button in the oscilloscope
settings)
Window 2:
! Oscilloscope settings
Window 3:
! Cyclic display of status values
Window 4:
! Setup window

Parker Compax3 Specifications

General

Protection Class	IP20
Control Modes	Torque, Speed, Position
Feedback Options	Incremental encoder, Absolute encoder, Resolver
Communication Interfaces	CANopen, EtherCAT, Profinet
Safety Features	STO (Safe Torque Off), SS1 (Safe Stop 1), SOS (Safe Operating Stop)
Input Voltage	200-480 VAC
Relative Humidity	5% to 85% (non-condensing)
Shock Resistance	According to EN 60068-2-27
Operating Temperature	0°C to +40°C
