Service/Spare Parts Manual
Series F10
Disassembling
Disassemble

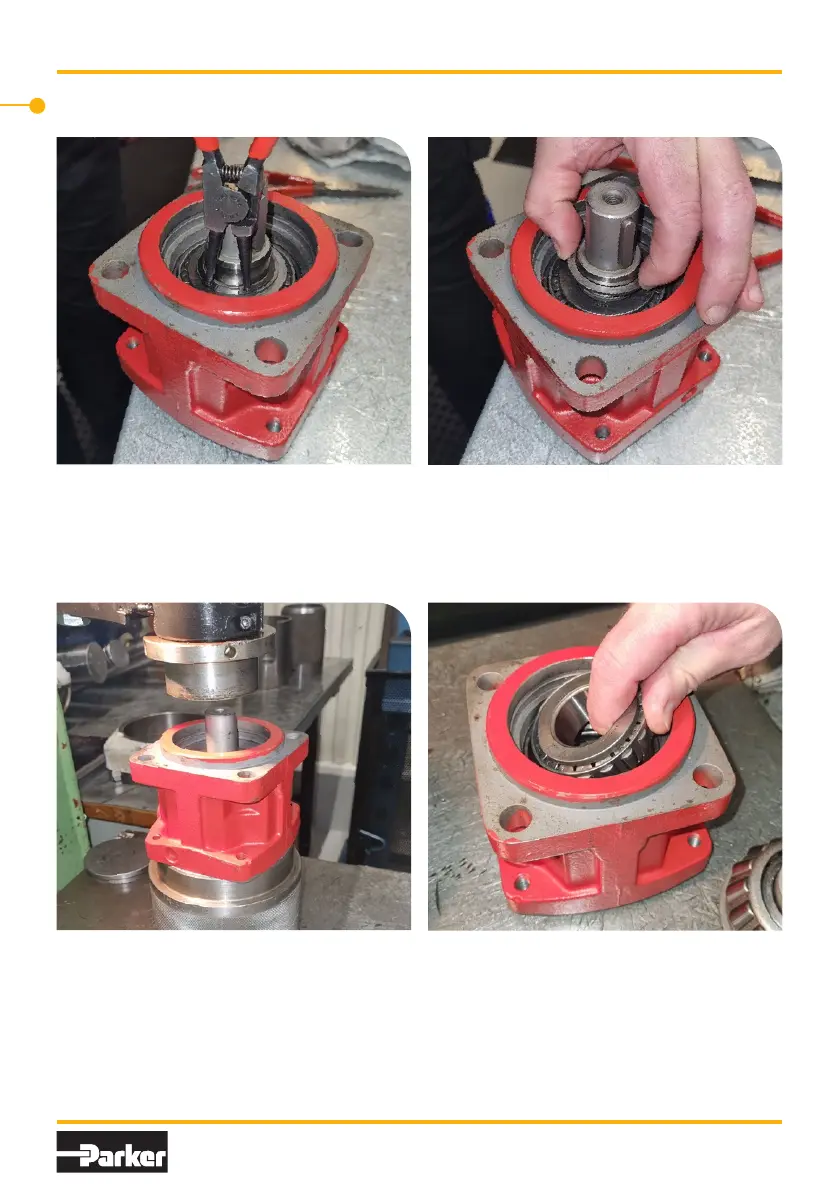

13. Disassemble the retaining ring
(item 478)
14. Remove the space washer (item 476)
15. Place the bearing housing (item 211)
on a tube. Press out the shaft (item
311) by pressing on the shaft end.
Tips! Put some soft material (towel
or rag) inside the tube to avoid marks
when shaft loosen.
16. Remove the small tapered roller
bearing (item 470)
