Disassemble

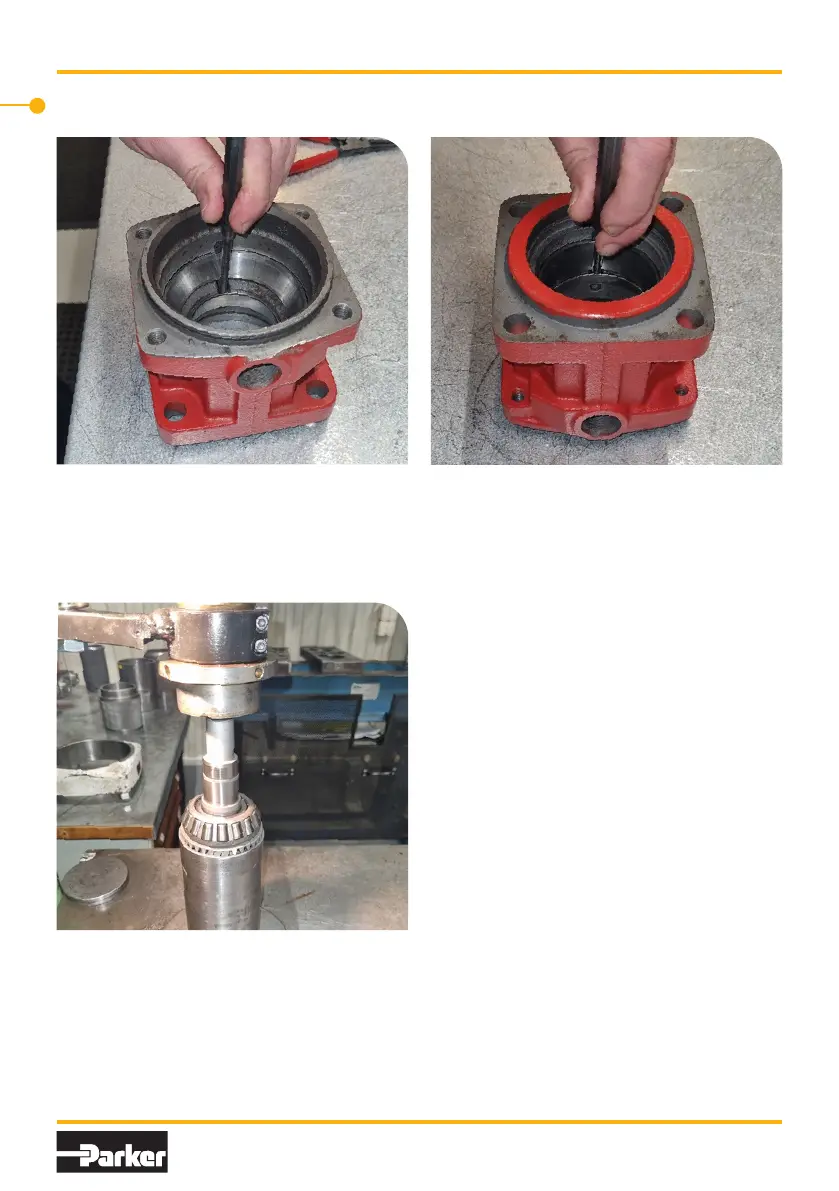

17. Tap the small bearing ring with a
mandrel and hammer
18. Tap the large bearing ring with a
mandrel and hammer
19. Place the ring gear (item 453) on a
tube. Press out the shaft (item 311) by
pressing on the shaft end.
Tips! Put some soft material (towel
or rag) inside the tube to avoid marks
when shaft loosen.
