9
Connectors

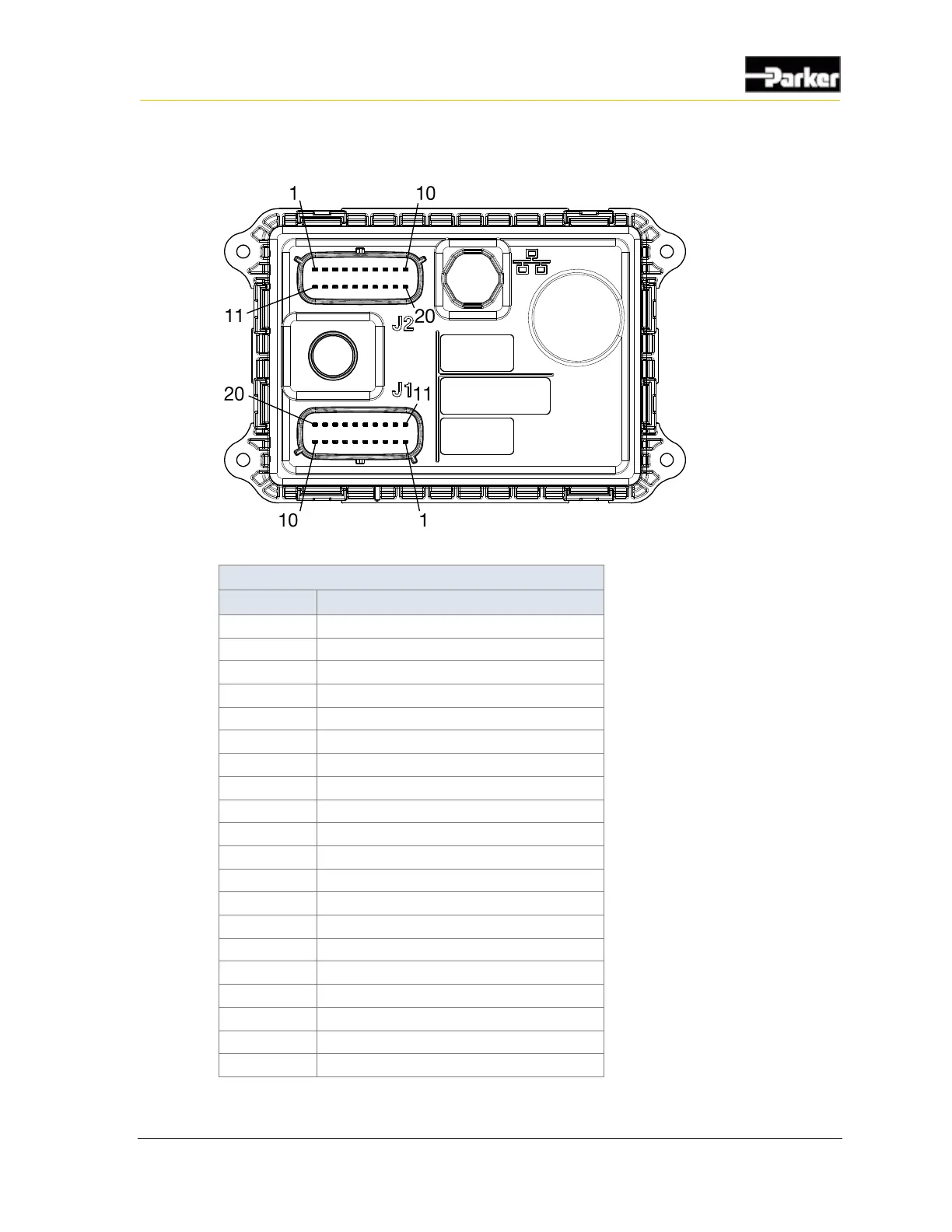

Figure 4: Back of PHD50 showing connectors
PHD50 J1 Connector Pinout
Pin
Function
1
GPIO7 (analog input)
2
GPIO1 (analog input)
3
GPIO6 (analog input/low power output)
4
OUTPUT2 (low-side output)
5
CAN1_TERM (CAN termination)
6
CAN1_SHLD (CAN shield)
7
CAN1_L (CAN low)
8
CAN1_H (CAN high)
9
GND (Negative battery)
10
+VBATT (Positive battery)
11
GPIO5 (analog input/low power output)
12
GPIO4 (analog input/low power output)
13
GPIO3 (analog input/low power output)
14
GPIO2 (analog input/low power output)
15
USB_D-
16
USB_D+
17
USB_GND
18
USB_VBUS (5V supply)
19
P12V0 (12V regulated supply)
20
OUTPUT1 (low-side output)
