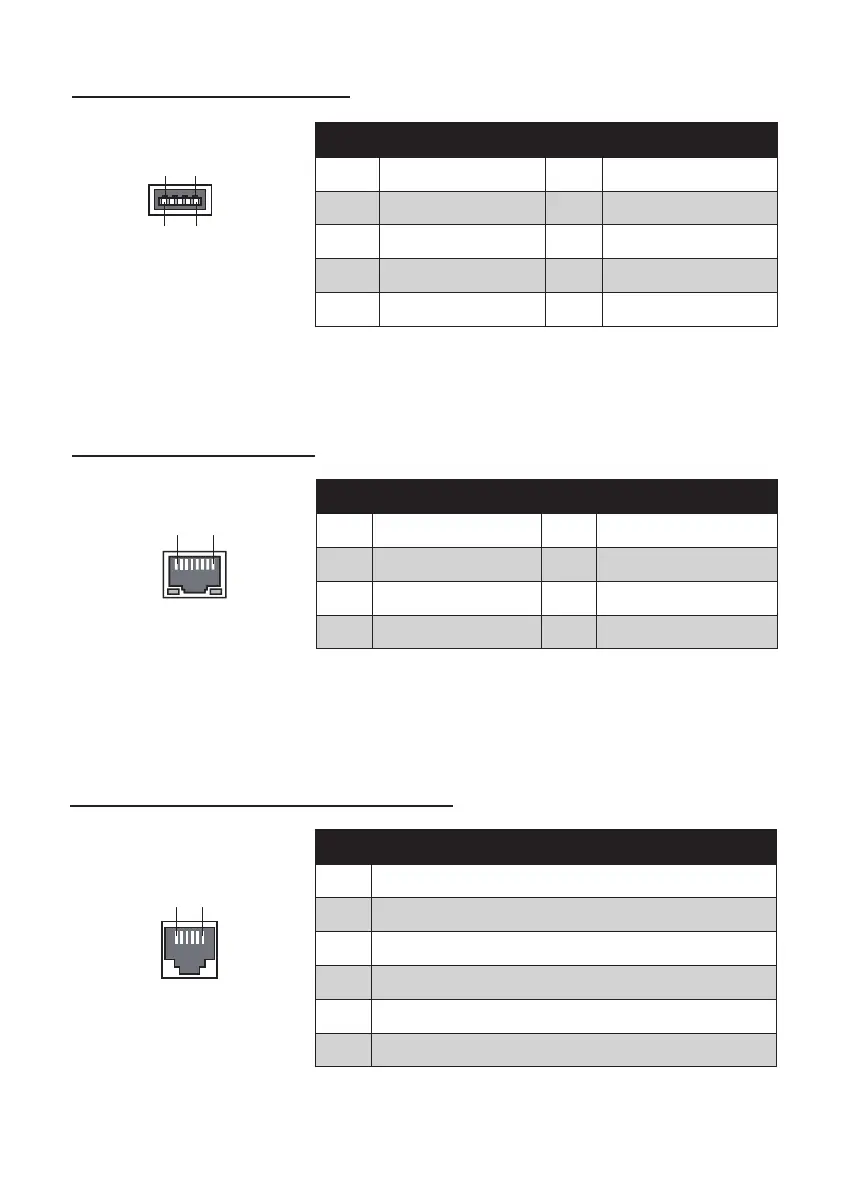

6 CHAPTER 1 GETTING STARTED
RJ-11 Cash Drawer connector pin dene
LAN connector pin dene
1 6
1 8
Pin Signal
1 CASEOPEN2
2 CASH1
3 CASEOPEN1
4 24V
5 CASH2
6 GND
Pin Signal Pin Signal
1 TXA+ 5 TXC-
2 TXA- 6 TXB-
3 TXB+ 7 TXD+
4 TXC+ 8 TXD-
USB 3.0 connector pin dene
1
5
4
9
Pin Signal Pin Signal
1 USB Vcc 6 StdA_SSTX-
2 USB - 7 GND_DRAIN
3 USB + 8 StdA_SSRX+
4 USB GND 9 StdA_SSRX-
5 StdA_SSTX+
