Partner SP-1030 - Page 15

7

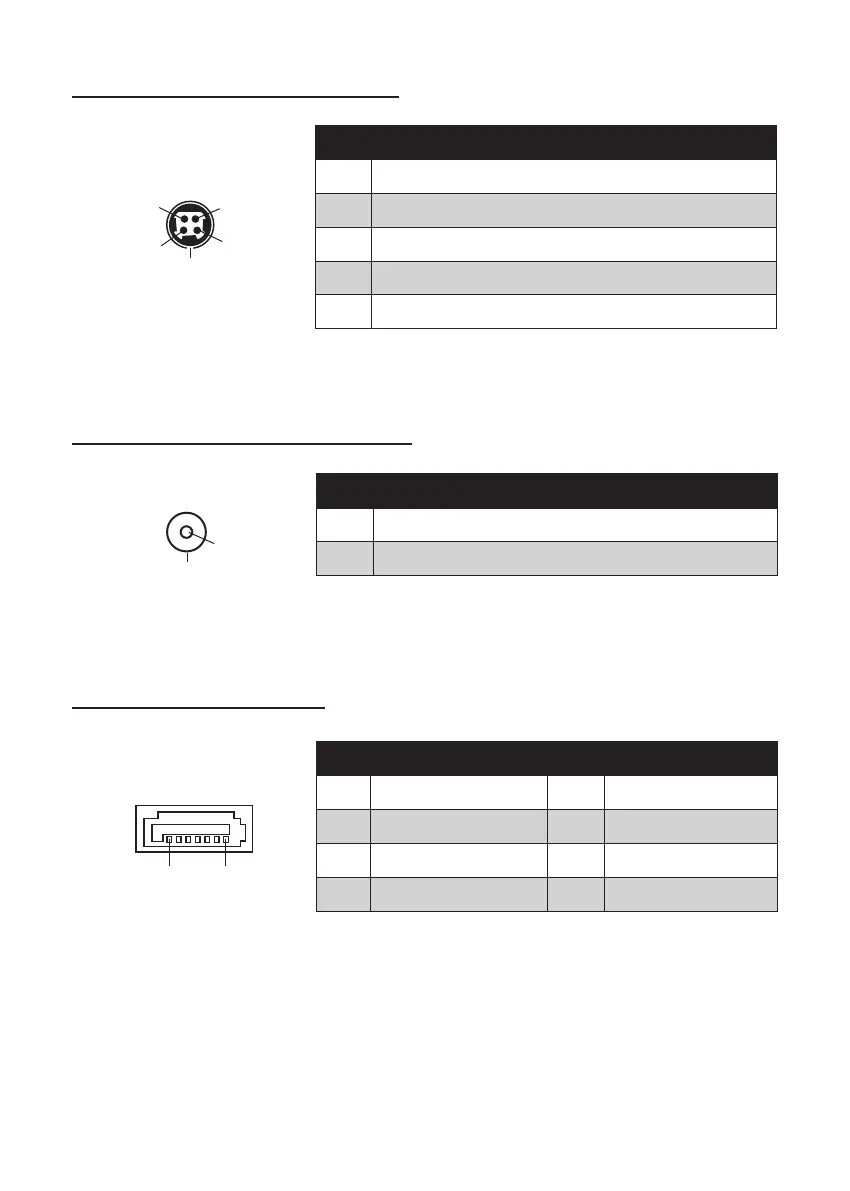

DC 12V input connector pin dene
1
2
3
4
5
Pin Signal
1 V+
2 V+
3 GND
4 GND
5 GND
DC 12V output connector pin dene
SATA connector pin dene
Pin Signal
1 +12V
2 GND
7 1
Pin Signal Pin Signal
1 GND 5 SATA_RX-
2 SATA_TX+ 6 SATA_RX+
3 SATA_TX- 7 GND
4 GND
1
2
