User Manual
PE
A
K I
NSTRUMENTS
I
NC
10
4. Structure I
ntroduction
Overall
st
ructure
consists
of
three
parts:
optical
system,
power
system
and micro-compute
r s
ystem.

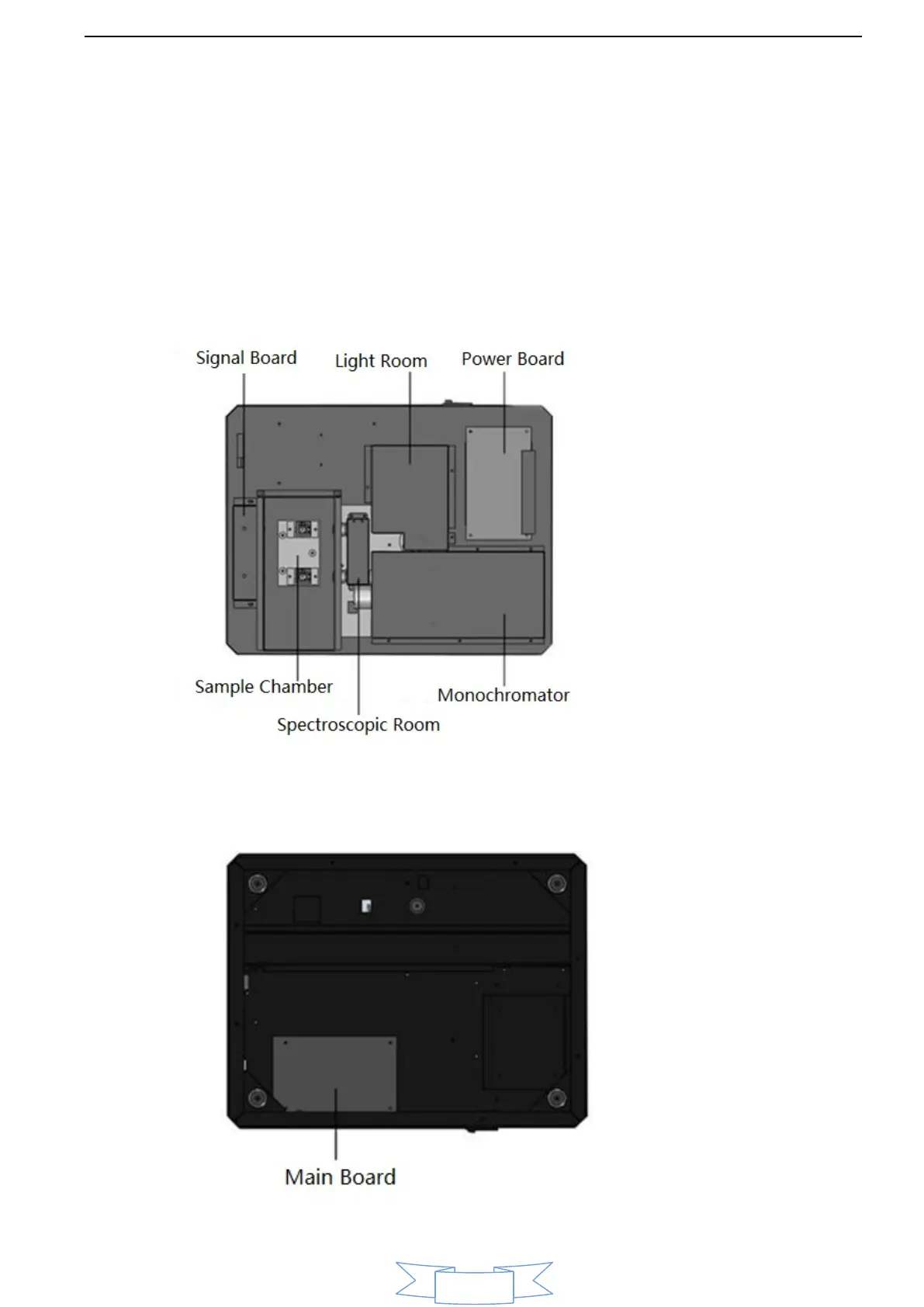

4.1 Top vie
w
of structure:
4.2. Bottom vie
w
of structu
re:
12
14
Table of Contents
Table of Contents
2
General Information
4
Safety Notes
4
Product Overview
5
Basic Operating Principles
5
Performance Indicators Definitions
7
Applications
9
Using Conditions
9
Product Features and Installation
10
Features
10
Technical Data
11
Main Functions
12
Structure Introduction
13
Top View of Structure
13
Bottom View of Structure
13
Light Path Diagram
14
Important Part of the Instrument
14
Instrument Installation
16
Key Definitions and Basic Operations
17
Panel Schematic Diagram
17
Button Function Descriptions
17
Basic Operations
18
Programs
18
Instrument Self-Test
18
Photometric Masurement
20
Quantitative Measurement
24
Build Standard Curve
24
Standard Sample Measuring
25
Sample Test
26
Open Standard Curve
26
Time Scan (Kinetic)
27
Function Description
27
Time Scanning Parameters Set
27
Data Test
28
Data List
28
Slope Calculation
29
Wavelength Scanning
29
Function Description
29
Set Scanning Parameters
29
System Baseline
30
Create a User Baseline (Corrected Blank)
31
Begin Testing
31
Peaks and Valleys
32
Data List
32
Multi-Wavelength Test
33
Function Description
33
Set Parameter
34
Correction 100%T/0Abs
34
Data Test
35
Protein/Dna Measurement
35
Function Description
35
Parameter Selection
36
Set Zero
36
Test
36
System Setup
37
Dark Current Measurements
37
Looking for Deuterium Lamp Curve
38
Time and Date Settings
38
Light Source Management
39
General
40
File System
40
USB Storage Device
41
Restore Factory Settings
41
System Information
42
Maintenance
42
Cleaning Requirements
42
Spectrophotometer
43
Display
43
Cuvettes/Cells
43
Routine Precautions
44
Tungsten Lamp Replacement
44
Deuterium Lamp Replacement
45
Troubleshooting
47
Power Failure
47
Self-Test Failure
48
Other Failures
49
