User Manual PEAK INSTRUMENTS INC
42

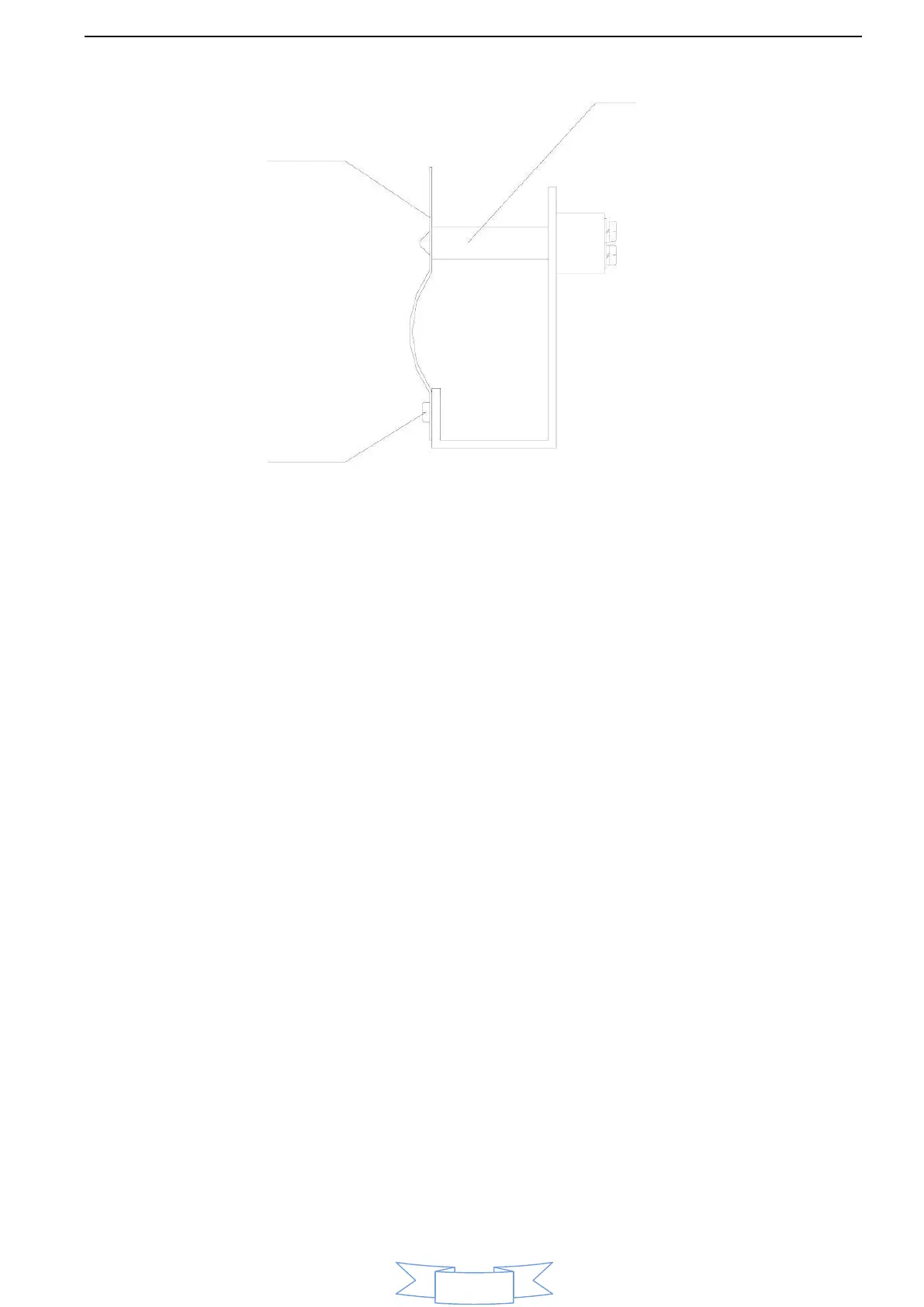

Tungsten lamp
Metal sheet
Tightening the screws
3.4. Turn on the instrument, make tungsten lamp light, and convert the light
source switching mirror to horizontal position manually.
3.5. Loosen the screws seat switch motors, seat motors to move the focus to
switch into the slit in the smallest and tungsten lights centered,
3.6. Replace the lamp compartment cover (be careful not to press the right side
of the line) and the instrument housing (do not press the display line), and
tighten the corresponding screws.
3.7. Re-POST, after the completion of the self-test mode in the wavelength
photometric measurements were walked 340nm, 370nm, 1000nm, 1100nm let
automatic zero. If it does not display the low energy lamp replacement is
completed, if there is low energy, repeat the above steps, if not enough, please
contact the company sales staff.
4. Deuterium lamp replacement
4.1. Turn off the instrument and unplug the power cord and disconnect the
equipment on both sides of the four screws fastening the shell and the shell
gently remove the left vertical against the instrument. (Note: The connecting
wire between the housing and the base plate, so after the fastening of the
housing screws are not removed too much force to pull the housing to prevent
the pull-beam break)
4.2. Remove the lamp compartment cover three fixing screws and gently
remove the lamp compartment cover. (Note: If the instrument has been open for
