Pearson CE35-T Case - How to Adjust Tape Tracking

Note: Some tapes unwind very easily. tension may have to be increased to ensure
smooth tape application.
How to Adjust the Tape Tracking …
1. To gain a small amount of side-to-side position adjustment of the tape hold,
release the stem nut on the tape centering adjustment.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
How To
103

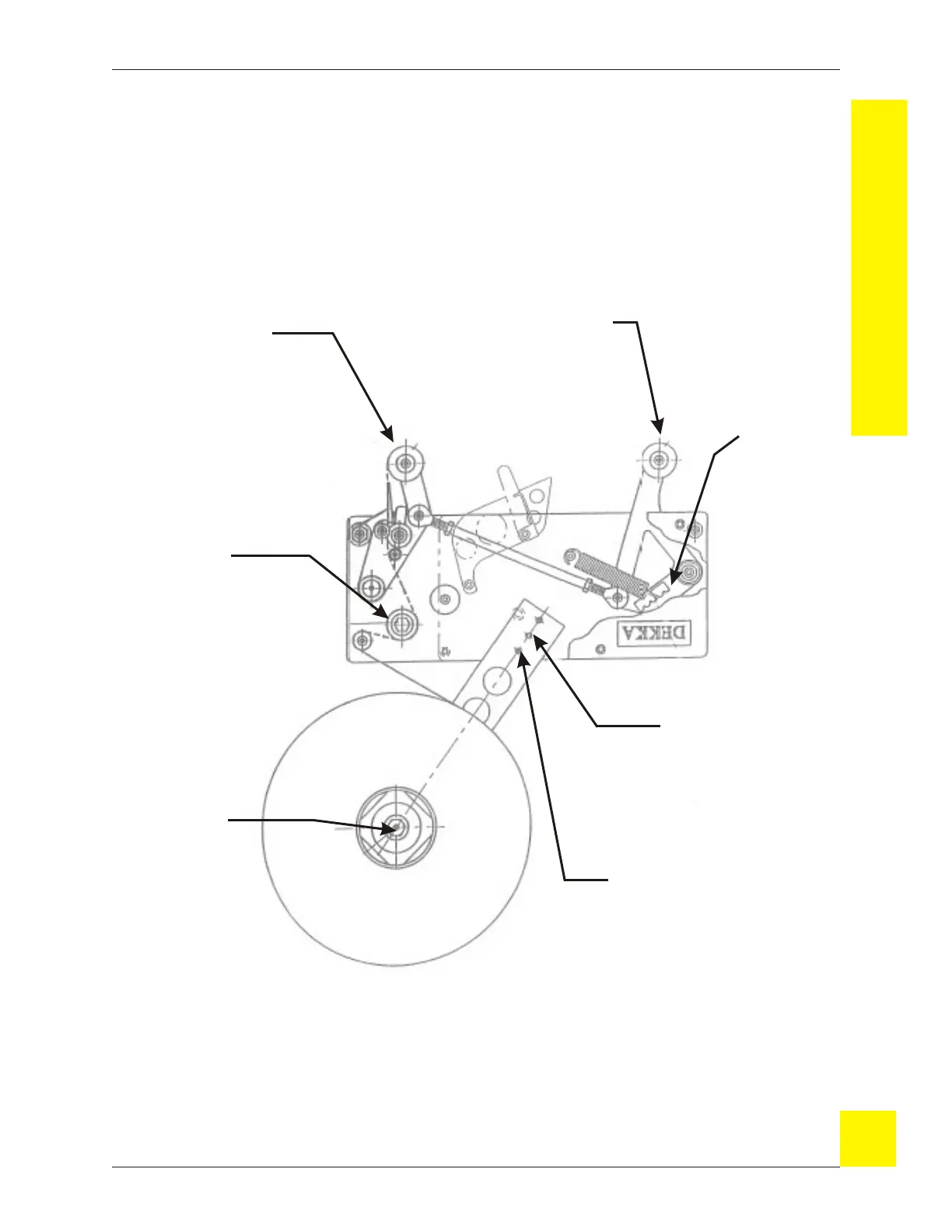

Fig. 85: Adjusting the Tape Tracking
Front
Wipe-down
Roller
Rear
Wipe-down
Roller
Main Tape
Tension
(Clutch)
Adjustment
Adjustable
Hub Brake
Tape Tracking
Adjustment
Jack Screw
Main
Wipe-down
Roller Spring
Force
Adjustment
