Pearson CE35-T Case - Machine Specifications

Machine Specifications
Important:
This machine is equipped for a specific case size range; refer to
Table 1 & 2.
* Open depth: Top flaps open, bottom flaps closed.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
20
weivrevO enihcaM
Erected Case Size Ranges Knocked-down Case Size Ranges
Length Width Open Depth* Length Width
Bottom Flap
Width
8.75" - 23.5"
222 - 597 mm
6" - 16"
127 - 406 mm
5" - 21"
127 - 533mm
13.75" - 39.5"
349 - 1003 mm
7.5" - 29"
191 - 737 mm
2.5" - 8"
64 - 203mm
Table 1: Erected and Knocked-down Case Size Ranges for CS35 Standard Tape

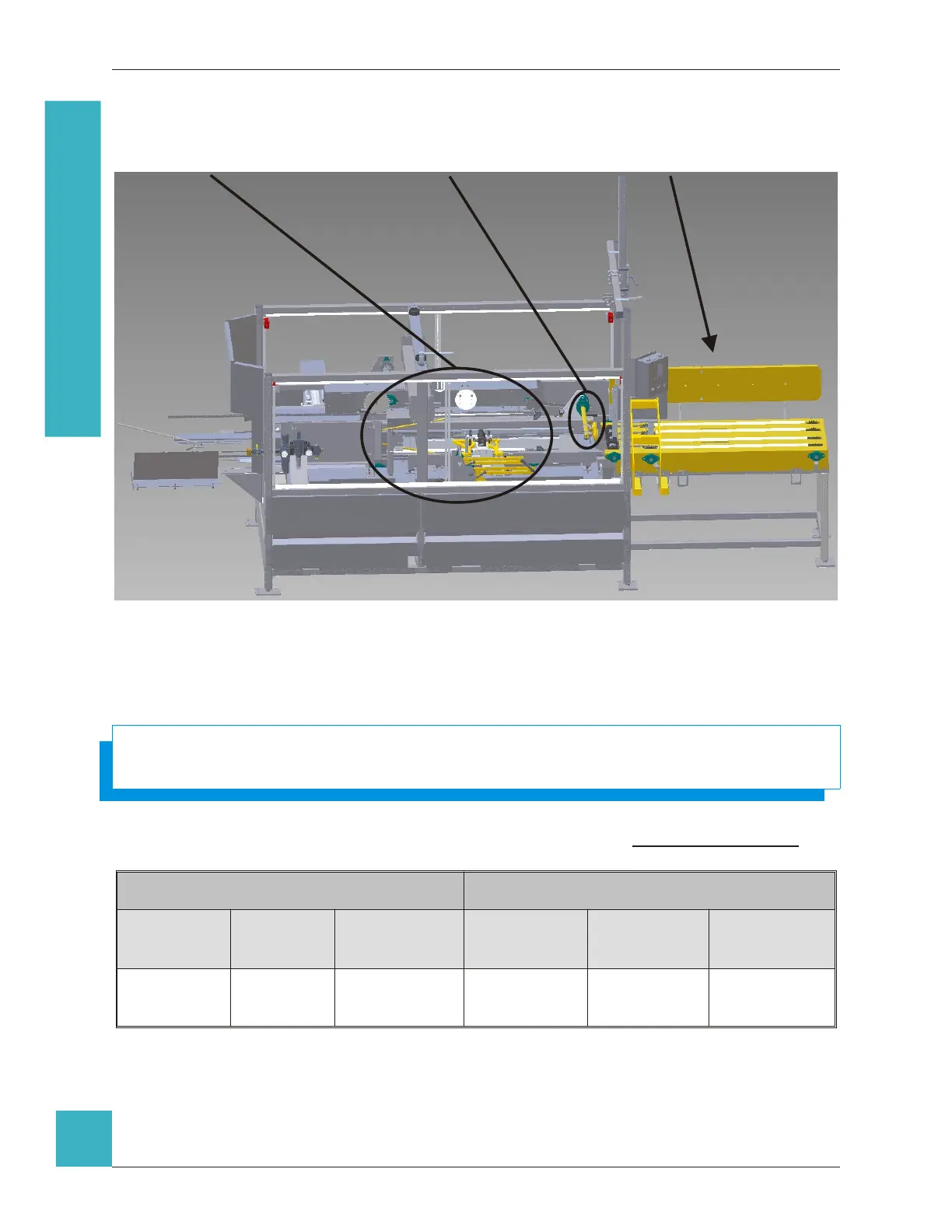

Fig. 13: CE35 Case Erector - Left Side View
Pickoff
Assembly
Horizontal
Magazine
Setup
Assembly
