Pearson CE35-T Case - How to Retime the Hopper Pullout Assembly to the Flight Timing

How To Retime the hopper pullout assembly to the flight
timing …
Turn off main power, turn off air supply and follow lock out/tag out
procedures before making any adjustments to this machine.
1. Using the manual control screen in the HMI, jog the hopper pullout arm to a
90-degree vertical position.
2.
Loosen idler nut and relax idler along the flight drive chain.
3.
Remove the master link in the flight drive chain.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
How To
115

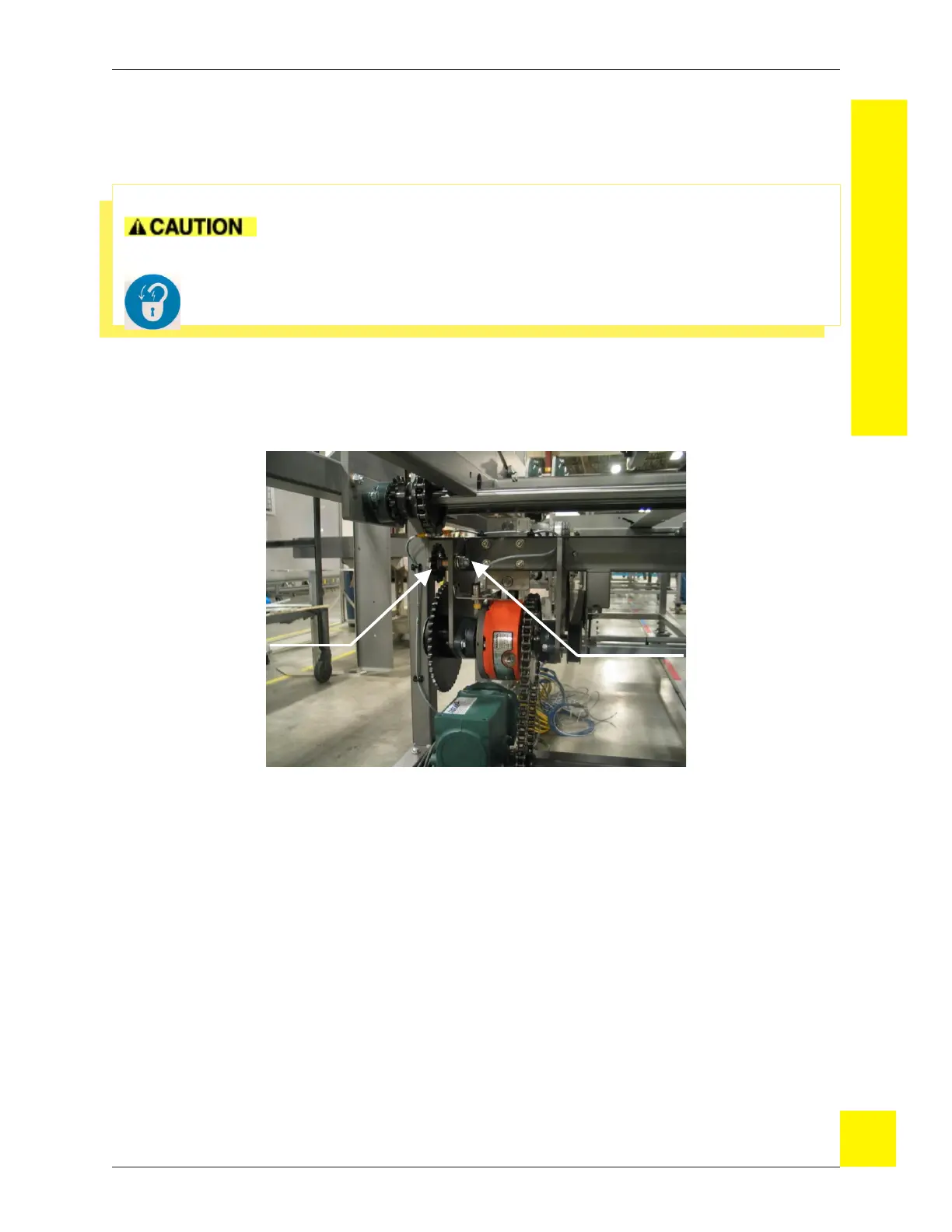

Fig. 91: Flight Timing Idler
Idler Nut
Flight Timing
Idler
