Machine Constants
1. The trailing minor flap kicker, in the extended position, is the machine
constant position for the flap scoreline.
a. When making adjustments to the main machine, erect a blank in the
machine at the setup arm between the flap rail and the long rail.
b. Extend the trailing flap kicker until the trailing minor flap is closed to
90 degrees. The case scoreline is now on the machine scoreline
constant location.
c. Next adjust the long rail on the open depth side of the case. Adjust the
rail tight enough against the case to hold the minor flap closed at 90
degrees, but not so tight that the case drags on the rails as it is
transferred.
Operations Manual CE35-T Case Erector
M-CE35T-2c Horiz Mag 3/2/2010
Changeover Procedures
45

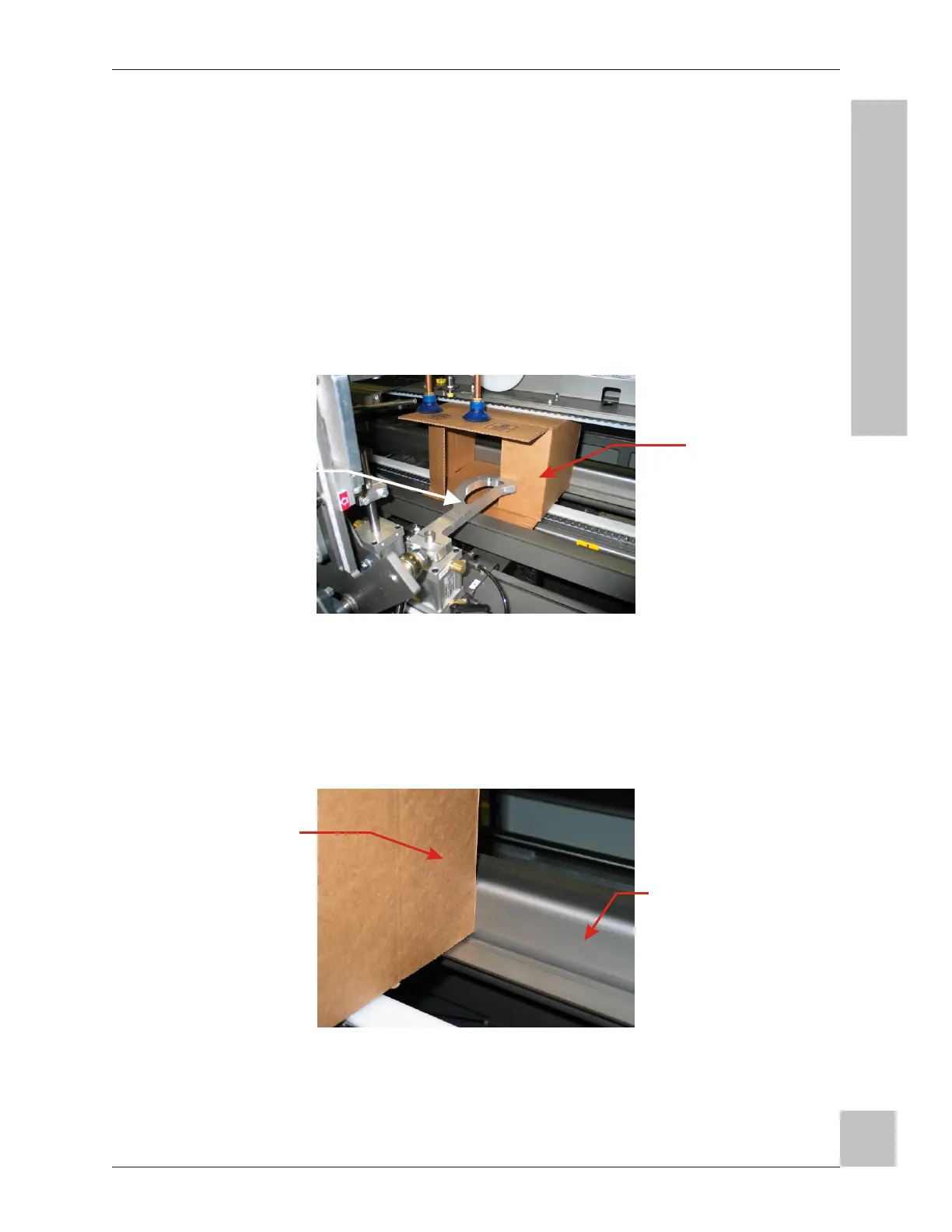

Fig. 34: Trailing Minor Flap Kicker
constant
Trailing Minor
Flap
Trailing minor
flap kicker
Fig. 35: Adjusting the long rail
Long Rail
Open depth
end of case
