Pearson CE35-T Case - How to Check Hopper Pullout

How To Check the hopper pullout assembly and
flight timing …
1. Using the manual control screen in the HMI, jog the face on the lower flight
lug to the timing mark.
2.
Verify the lower hopper pullout arm is at a 90-degree vertical position. (The
arm will be centered in the middle of the linear bearing plate.)
a. If the lower
hopper pullout
arm isn't in the
correct position,
retime the
hopper pullout
assembly to the
flight timing.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
114
oT woH

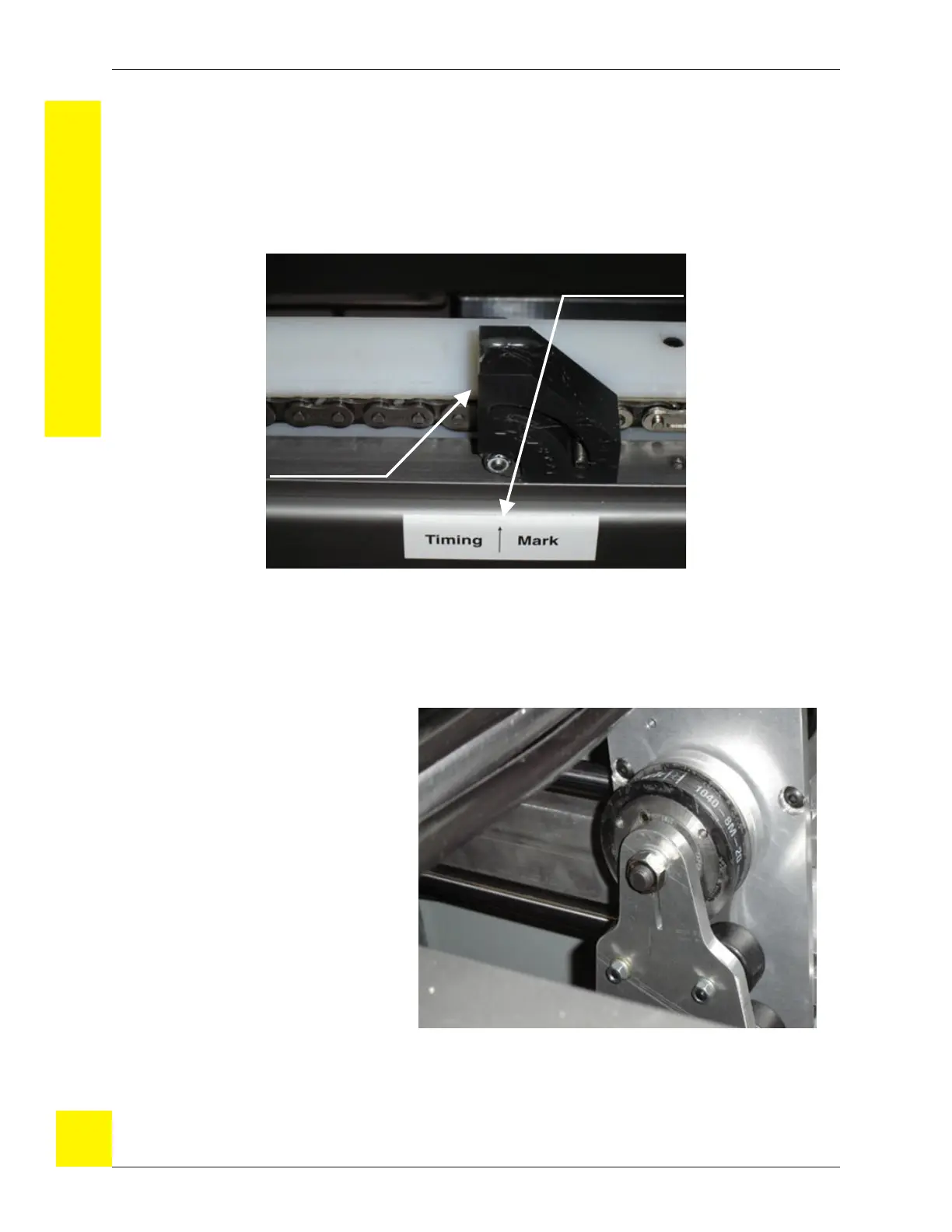

Fig. 89: Lower Flight Lug at the Timing Mark
Face on the
Lower Flight
Lug
Timing Mark
Fig. 90: Hopper Pullout Arm in Correct Position
