4. Manually adjust the
face on the lower
flight lug so that it is
flush with the timing
mark.
5. Replace the master
link in the flight
drive chain;
reposition the chain
and tighten the idler.
Note: Prior to running the
machine, check the
timing to ensure it did
not move as you
tightened the chain.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
116
oT woH

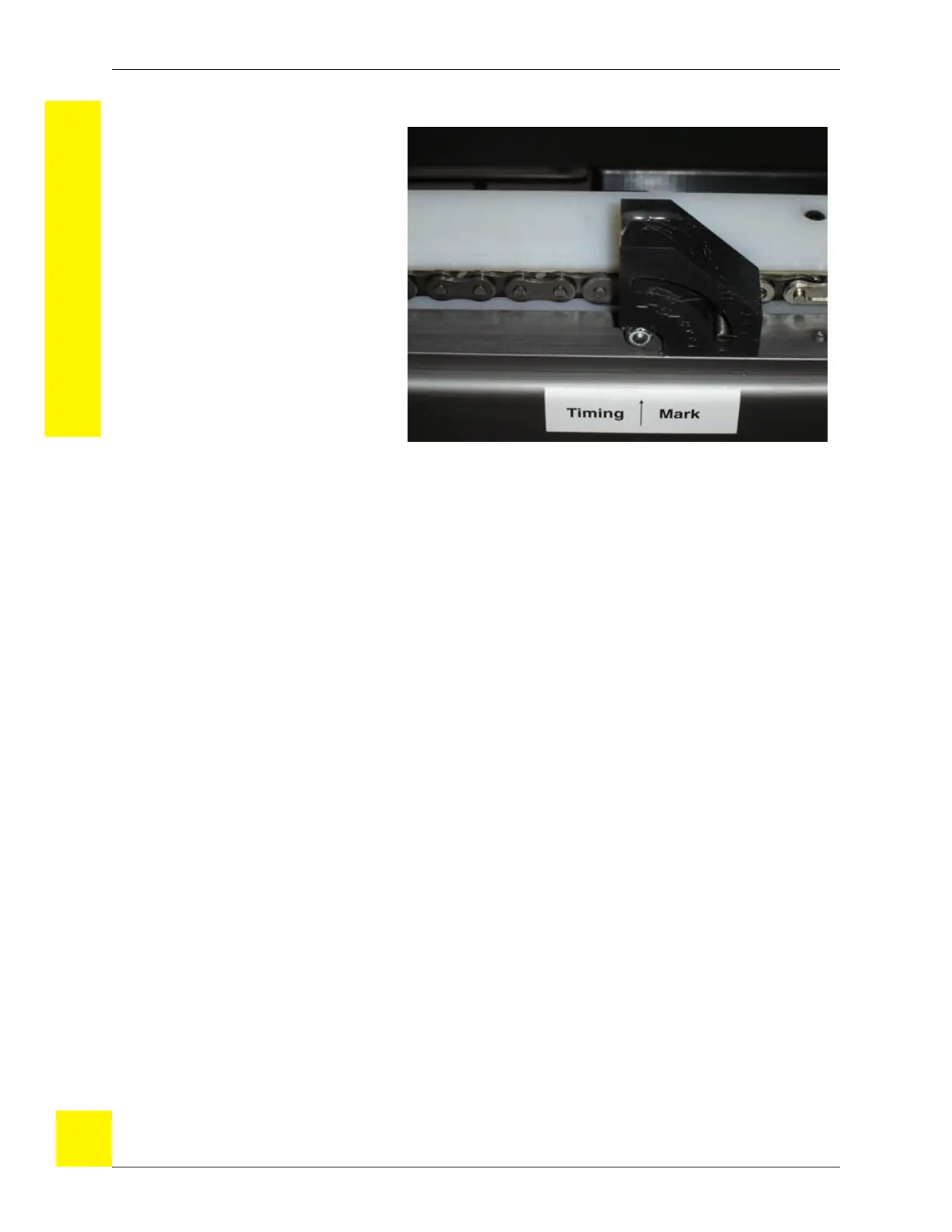

Fig. 92: Lower Flight Lug at the Timing Mark
