2. Load the blanks so the first group of blanks (approximately eight) are
vertical between the blank stripper clips.
a. Allow the rest of the blanks to rest at an angle against the first vertical
blanks.
Note: This gap created between the angled blanks and the vertical blanks is necessary
for the functioning of the two blank detect sensors.
3. When the magazine low sensor determines more blanks are needed, the
magazine chain will advance.
4. The angled blanks will become vertical as they advance to the pick-off
point.
Important:
The machine will not cycle with insufficient blanks in the
high-capacity magazine. Keep the magazine filled past the
magazine low sensor (a minimum number of blanks are required in
the high-capacity magazine for reliable operation).
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
36
noitarepO enihcaM

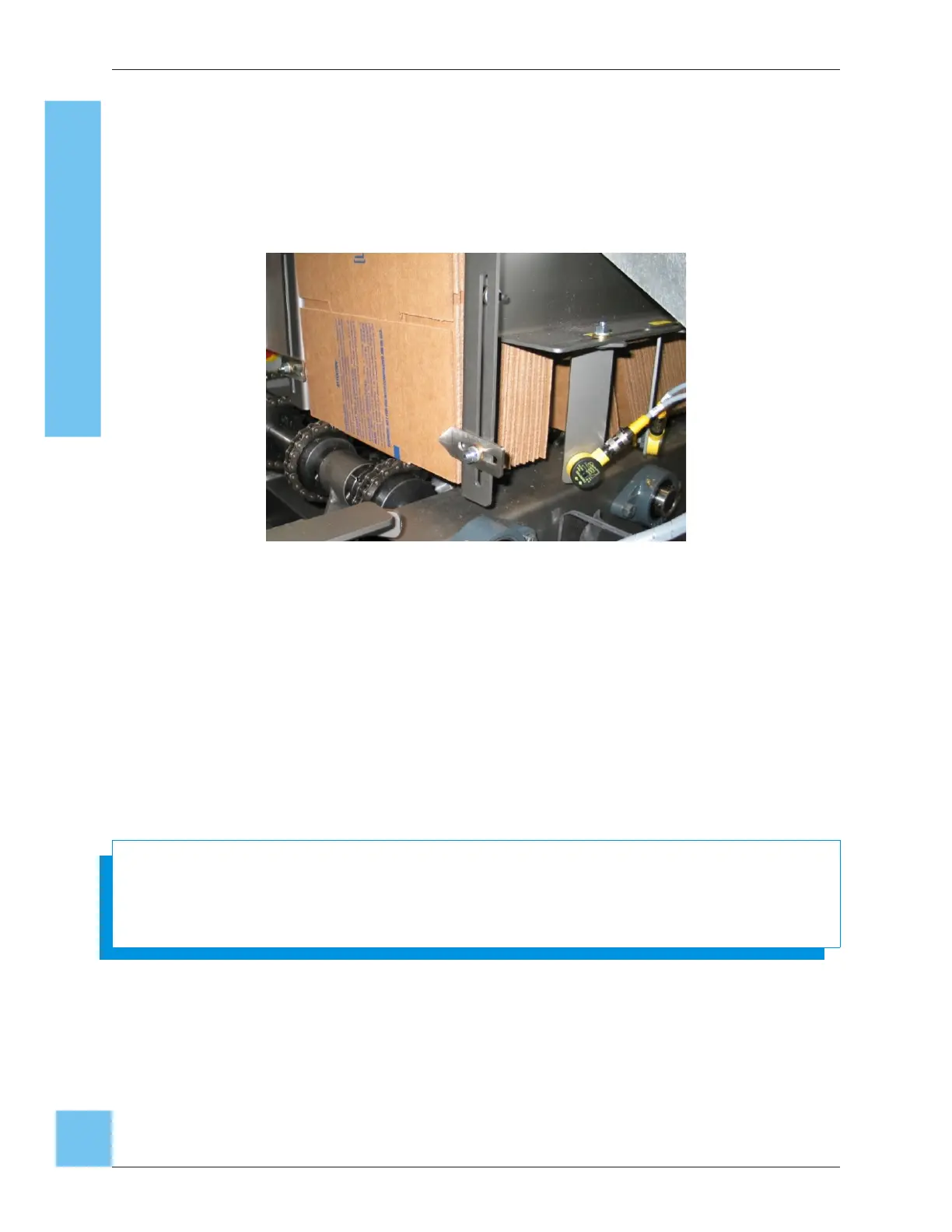

Fig. 28: Angled and Vertical Blanks In Magazine
