Magazine Pick-off Arm Vacuum Cups
1. Adjust the placement of the vacuum cups on the minor panel
2. Loosen the small hand knobs.
3. Slide the vacuum cup on the shaft to the desired position.
4. Tighten the hand knob.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
50
serudecorP revoegnahC

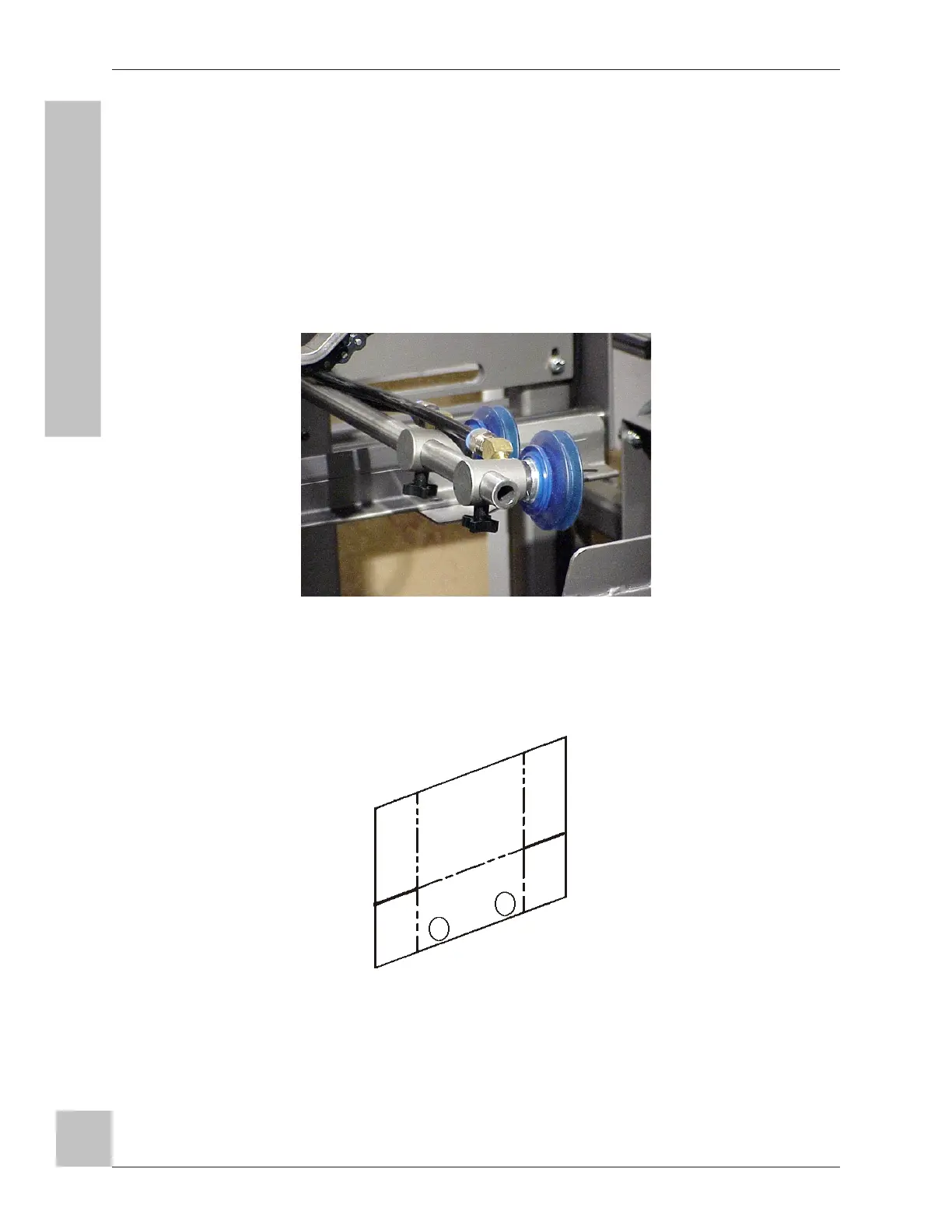

Fig. 41: Magazine Pick-off Arm Vacuum
Cups
Fig. 42: Location of Vacuum Cups in
Relation to Blank
