Flap Rail Fold Side
1.
For cases previously run, refer to the View Setup Values PanelView screen
in the PanelView for scale settings.
2. Loosen the quick-release handles at each end of the Flap Rail.
a. The quick-release handles are located by the tape head and the
magazine.
3. Adjust the rail to the appropriate scale setting.
4. Tighten the quick-release handles.
5.
For initial setup, place a flat blank in the machine between the Flap Rail
and the Long Rail.
6. Loosen the quick-release handles at each end of the Flap Rail.
CE35-T Case Erector Operations Manual
3/2/2010 M-CE35T-2c Horiz Mag
52
serudecorP revoegnahC

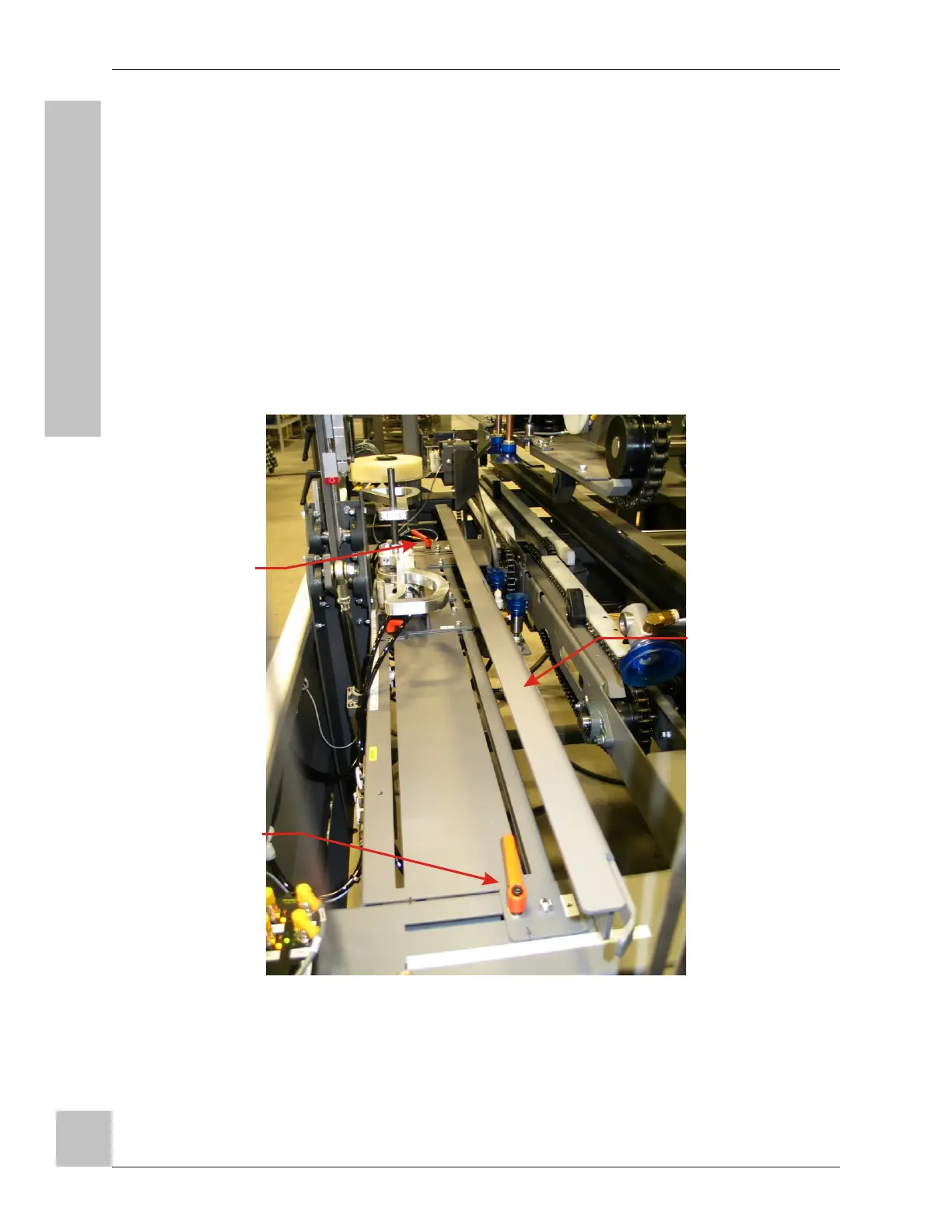

Fig. 44: Flap Rail Fold Side
Flap Rail Fold
Side
Quick-release
Handle
Quick-release
Handle
