Pego ECP300 EXPERT VD Series User Manual

ECP300 EXPERT
Pag. 15
USE AND MAINTENANCE MANUAL
Rev. 01-12

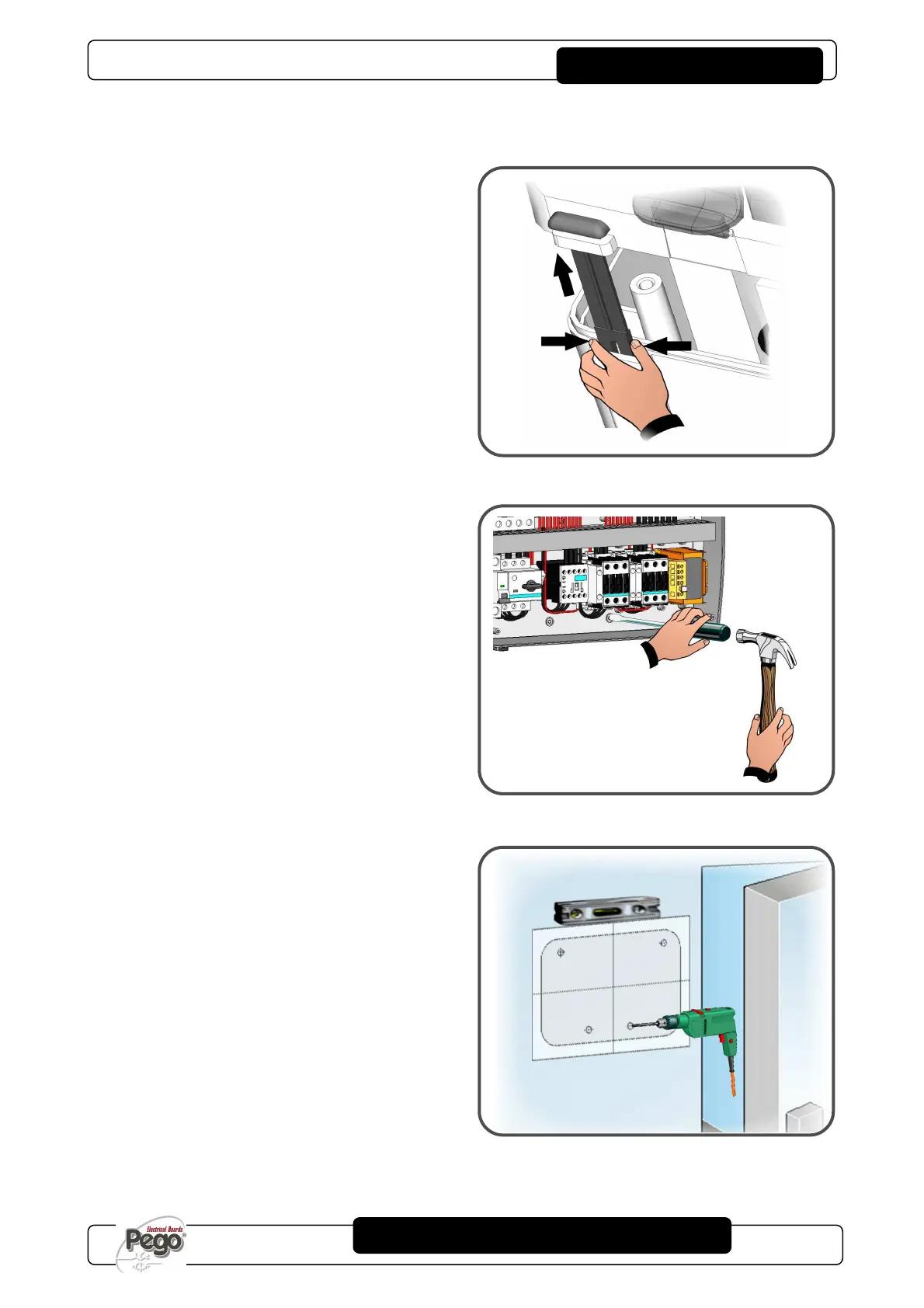

Fig. 7: Press on the sides of the hinges to
remove them from their seats and so
completely remove the front panel
Fig. 8: Press with a screwdriver on the 4
preimpressed holes on the bottom to
prepare fixing of the panel.
.
Fig. 9: Using the furnished drilling layout make
four fixing holes on the wall.
CHAP. 3 - Installation

Pego ECP300 EXPERT VD Series Specifications

General

Brand	Pego
Model	ECP300 EXPERT VD Series
Category	Control Panel
Language	English
