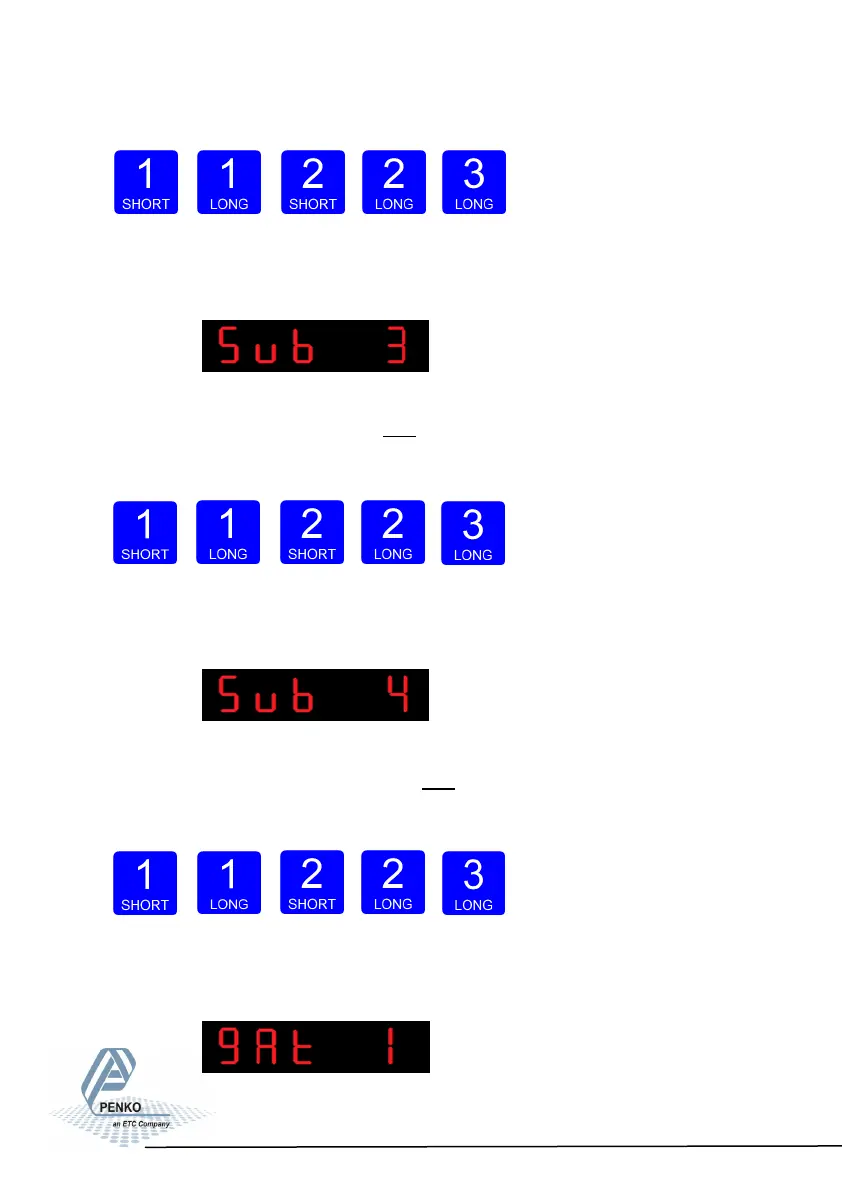

SGM700 Digitizer
Configuration Menu -Eth- -continue-
Increase Decrease Left Right Confirm
When confirmed the following screen will be visible:
In Sub 3 you set the third three numbers of the Subnet address you want to
give the SGM700 (example: 255.255.255.000). Use key 1 and key 2 to change
the number Key 1 is for changing the number (1-9), key 2 is for changing the po-
sition of the cursor. Confirm by pressing key 3 >2 sec.
Increase Decrease Left Right Confirm
When confirmed the following screen will be visible:
In Sub 4 you set the fourth three numbers of the Subnet address you want to
give the SGM700 (example: 255.255.255.000). Use key 1 and key 2 to change
the number Key 1 is for changing the number (1-9), key 2 is for changing the po-
sition of the cursor. Confirm by pressing key 3 >2 sec.
Increase Decrease Left Right Confirm
When confirmed the following screen will be visible:
36
