c-DGM/i-DGM Page 15 of 78
4. General product information
4.1 General description
The DGM has two types of controls. 1
1. Push buttons on the top of the instrument.
2. Four mechanical component, consisting of:
the handle (pos. 20), 2
the throttle valve (pos. 12), and
the two hose connectors for the sampling hoses.

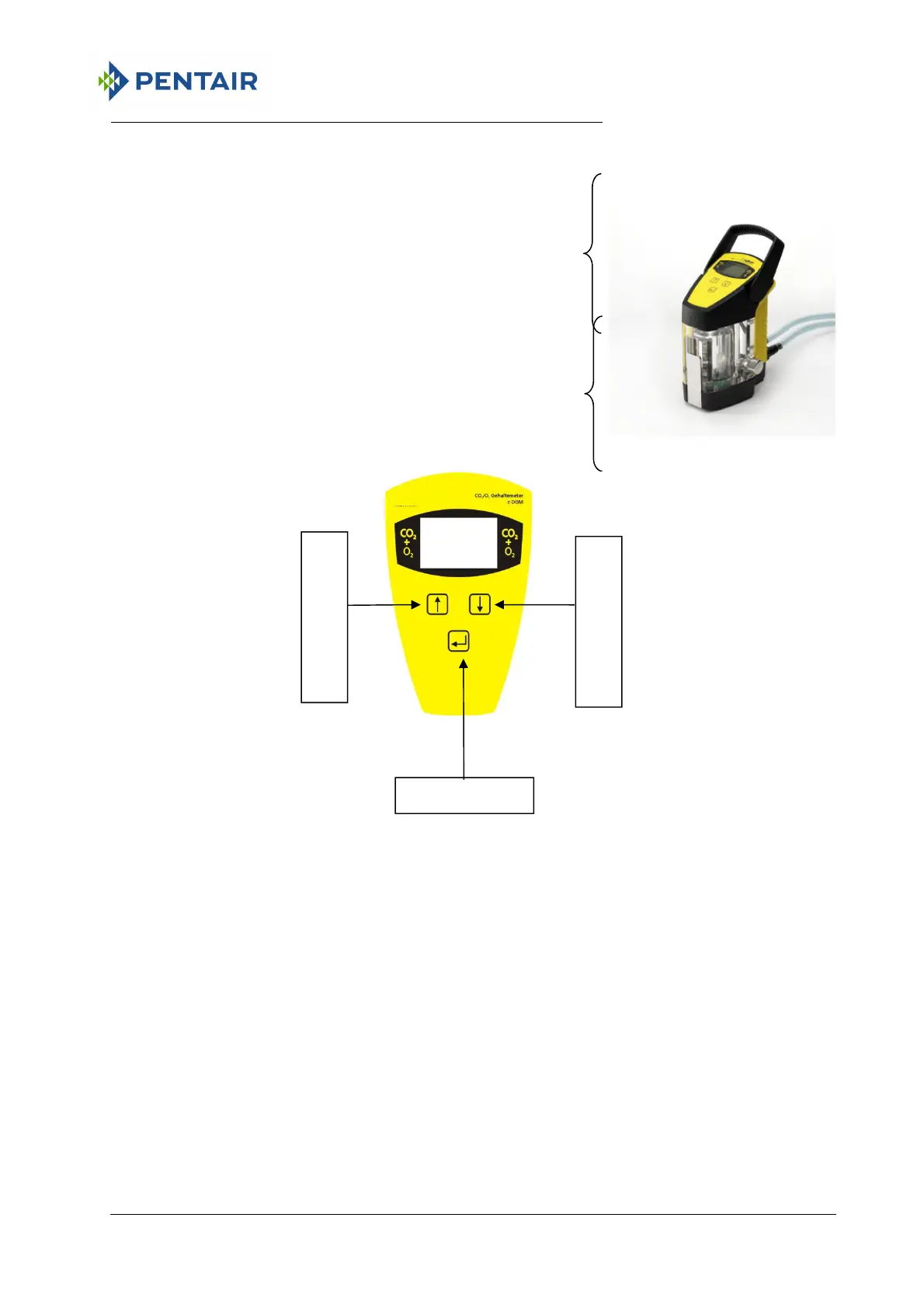

Fig. 4.1 Service levels
Fig. 4.2 Control buttons
The instrument consists of 4 components that form a single assembly (see Appendix VII,
drawing c-DGM).
A. The electronics housing (pos. 01);
B. The measurement chamber (pos. 02);
C. The battery pack (pos. 11);
D. The plunger block (pos. 06);
Arrow button - Up
Arrow button - Down
“Enter” button
