IntelliCenter Control System Quick Reference Guide
3
Pool Filter Pump On/Off: Tap this button to switch the pool filter pump on or off and to activate the heater (if a heater source is selected).
Note: The heater will activate when the pool pump is on and the temperature Set Point is above the current temperature reading.
Pool Temperature: Displays the current pool water temperature.
Heating Set Point: Use the Up/Down button to increase or decrease the pool water set point temperature.
Pool Heat Mode Button: Tap this button access the Select Heat Mode screen. Heat Mode options are Off, Gas, Solar, Solar Preferred, Heat Pump (Preferred),
UltraTemp Preferred, Hybrid Preferred. Select OFF for no heater installed. When the heater is turned on the heater will activate when the pool pump is on and
the temperature Set Point is above the current temperature reading. See Settings > Advanced System Configuration > Installation Setup > Heaters.

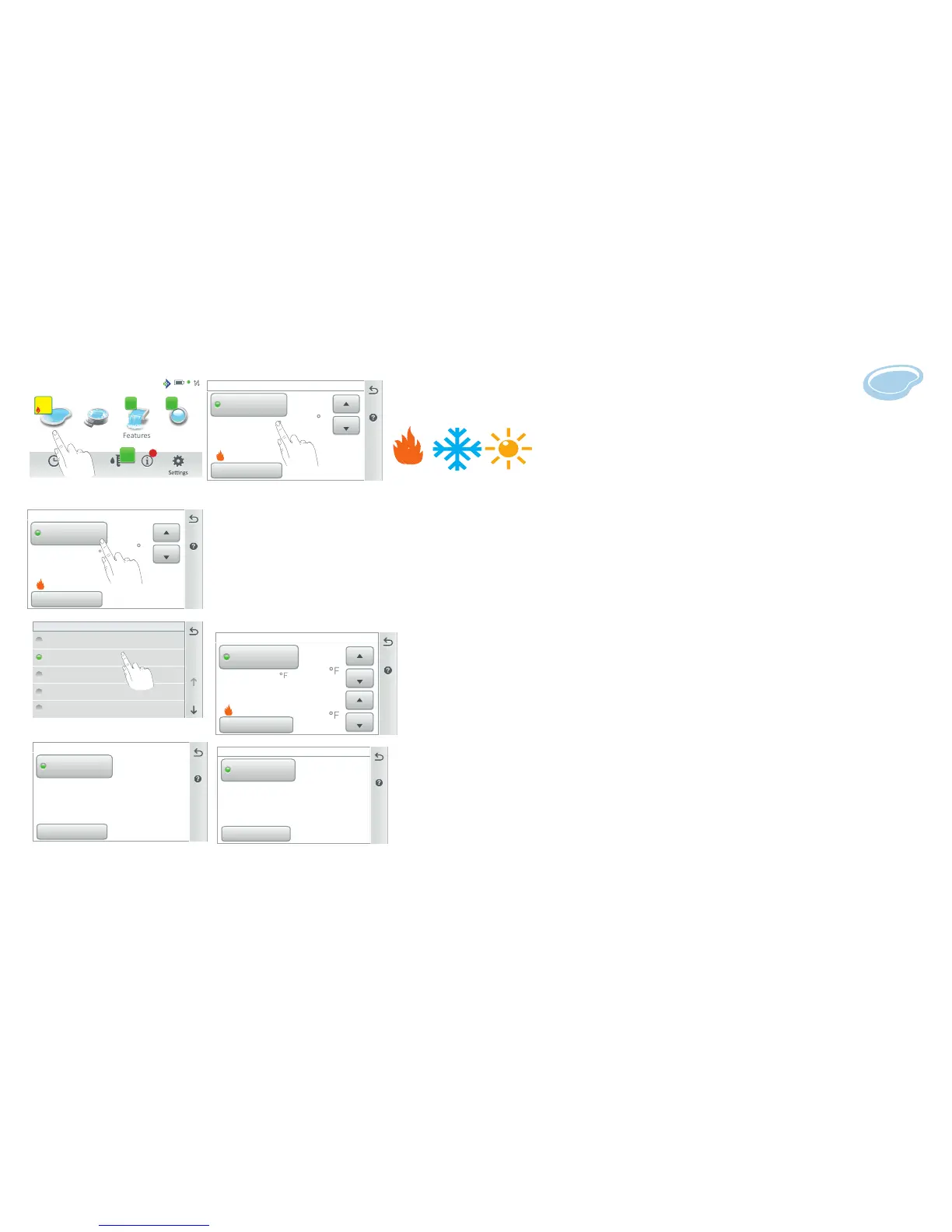

To display the Pool screen, tap Pool on the Home screen. Pool Badge Icons:
A Flame icon (heat source active) is displayed with the current heat set point
temperature. A Snow Flake icon indicates the UltraTemp Heat Pump or Solar
Heat (if enabled) is in cooling mode. A Sun icon indicates solar heat is active.
Select the heat source from the Select Heat Source screen.
Pool
Flame: Snow Flake: Sun:
Heat Source Nocturnal Solar
Active Cool Down Heat Source
The Pool screen displays the current pool water temperature and heat source set point temperature.
Tap the Heater button to select the heat source. Select OFF for no heater installed.
Pool
Temp
77
Pool
Pool Spa Features Lights
Air Temp 65° F
Schedule Usage Chemistry Status
3 3
8:00 A.M.
6.50
0
4
84°
78°
Nocturnal Cooling Set Point Temperature control for Heat Pump or Solar: If using a heat pump, use the
Cooling Set Point temperature or solar heat control buttons displayed on the Pool and/or Spa screen to adjust the
nighttime temperature of the pool/spa water. Solar Heater: Nocturnal (nighttime) feature provides automatic cooling
during night time hours for pools that overheat in hot climates to circulate the pool water to the collector panels
when the collector temperature and the pool temperature is hotter than the high limit setting. This process cools the
pool water over time. Note: This feature is also used for UltraTemp and a Heat Pump..
Schedules (Heat Source and Set Temperature): See Schedules to schedule the pool/spa pump to turn on at a
specific time to pre-heat the pool or spa water. From the Schedules Weekly or One Time Only option, select "Heat
Source" and select a heat source, then set the Set Temperature settings.
Pool Filter Pump
Heat Pump (77°)
Cooling
Set Point
100
Spa Freeze Override Time (0-240 min (4 hrs): Override the spa pump circuit that has freeze protection active
to run the pump and heat the spa during freezing temperatures. This also applies if a schedule is running. Freeze
Cycle Time (min): Set the freeze protection time from 5 to 60 minutes to run the pump during freezing temperatures.
Default time is 5 minutes. See Settings > Advanced System Configuration > Delays.
Pool
Temp
40°
Pool (schedule on in freeze)
Pool Pump
Off
Heat Mode
(press manual ON)
Pool
Temp
40°
Pool (manually turned on in freeze)
Pool Pump
Off
Heat Mode
(press manual ON)
Spa Freeze Override Time (0-240 min (4 hrs) - See Delays.
Select Heat Source for Pool
Off
Heater
Solar Preferred
Solar Only
Heat Pump
To Next Page
