Lights
From the Lights screen you can manually turn on or off individual or groups of lights. Lights displayed in the Lights screen are configured from (Settings > Advanced System
Configuration > Installation Setup > Circuits). To access the Lights screen, tap the Lights icon on the Home screen. Tap the Return Arrow to return to the Home screen. Note: A Green
Number Badge displayed on the Home screen Lights icon, shows the number of lights on. Light circuits settings include Egg Timer & Freeze Protect options.
Light ON/OFF Button: From the Lights screen, tap the Individual button to display the assigned light circuits. Tap the light name button to switch the
light ON or OFF. Tap Return Arrow to return to the Home screen.
Lights
MagicStream Laminars
GloBrite Color Light
ColorCascade Lights Pool Party
IntelliBrite SunSet
GroupsIndividual
AUX 4 Light Show
SAm
Royality
Party
Sunset
Four Color Dots Edit Button: Tap this button to display the Light Shows/Colors screen. Light Color options are: White, Blue, Red, Green and Magenta.
Note: Color choice is light dependant. Some lights only display white.
Select a Light Show: From the Light Shows screen, tap one of the displayed Light Shows buttons to switch the light show on or off.
Light Show options are: SAm, Romance, American, Royalty, Party, Caribbean, and Sunset.
Thumper Control
Thumper
Laminar Thumper Toggle
Tap the Thumper buon to toggle the
state of the MagicStream Laminar.
The new seng will be save.
Colors
Blue
GreenWhite
Magenta
Red
Light Shows
AUX 4 Light Color
Select a Light Color: From the Colors screen, tap one of the displayed Color buttons switch the light color on or off.
Tap Check to return to the Lights screen. Tap the light name button to switch the light on or off.
Tap the Return arrow on the Light screen to return to the Home screen.
Gears Icon: Tap the Gears icon to access the MagicStream laminar Thumper feature.
Tap the Thumper button to activate the built-in light solenoid to create a random wrinkle in the
laminar’s water stream and display a brilliant spot of light that moves along the stream’s arc.
Lights
GroupsIndividual
All On
All Off
MagicStream Laminars
GloBrite Color Light
ColorCascade Lights Pool Party
All On/All Off Button: Tap this button to turn all light circuits On or Off. Light circuits include: IntelliBrite
®
, ColorCascade
®
, GloBrite
®
Light (Color and
White), Dimmer and MagicStream
®
lights):

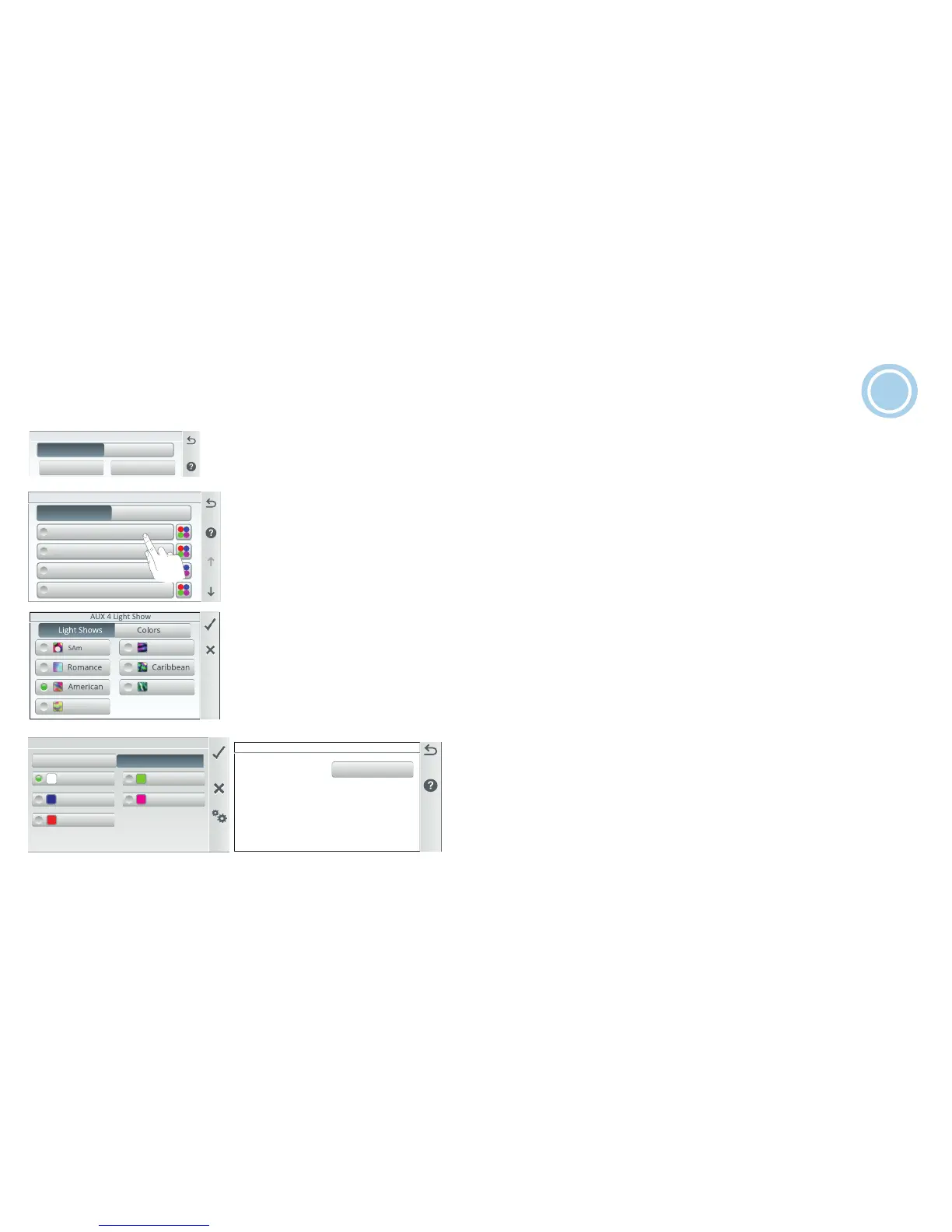

Light Shows Screen
Light Colors Screen

Pentair INTELLICENTER Specifications

General

Expandable	Yes
Energy Management	Yes
Touchscreen Display	Yes
Remote Access	Yes, via Mobile App
User Interface	Touchscreen
Remote Monitoring	Yes
Number of Circuits	Up to 40
Wireless Connectivity	Yes
Power Requirements	120V AC
Enclosure Rating	NEMA 3R
